SKU 164.1580911

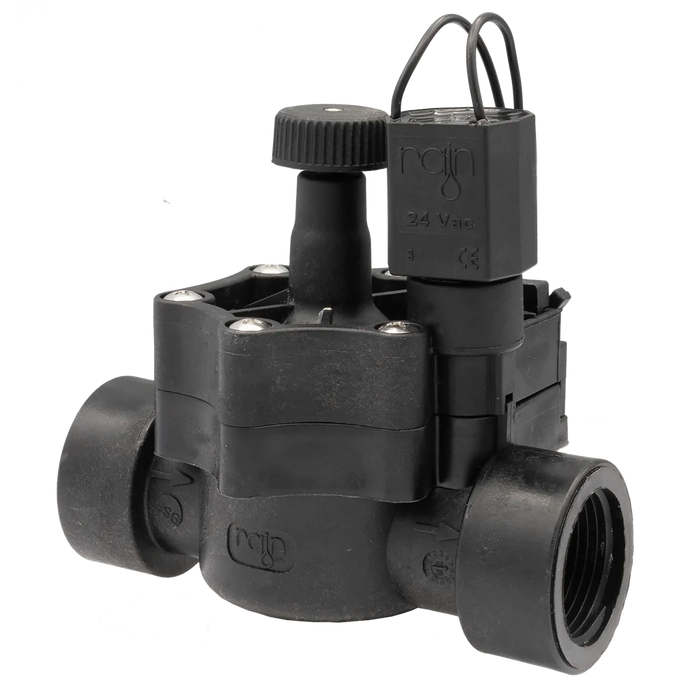

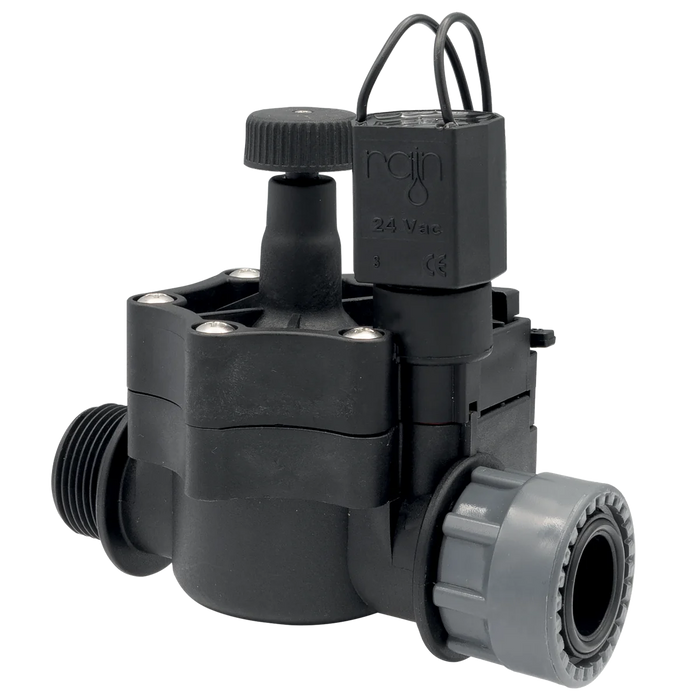

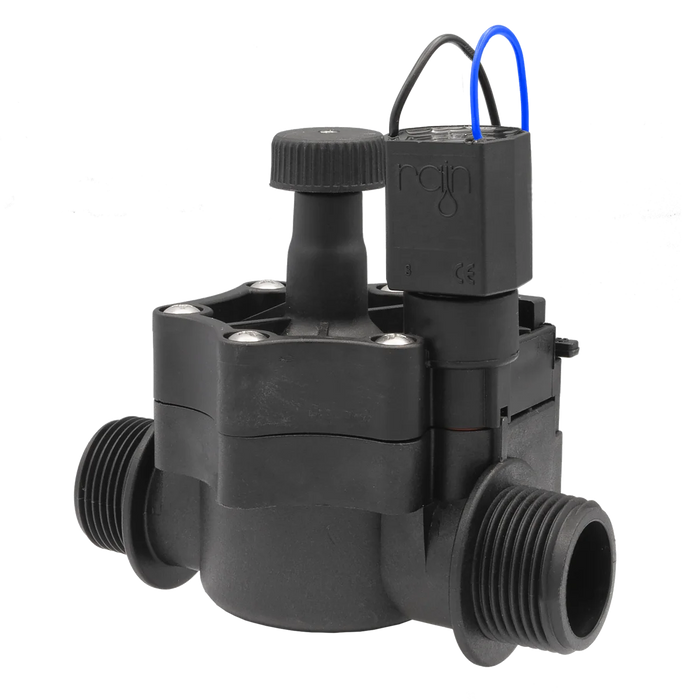

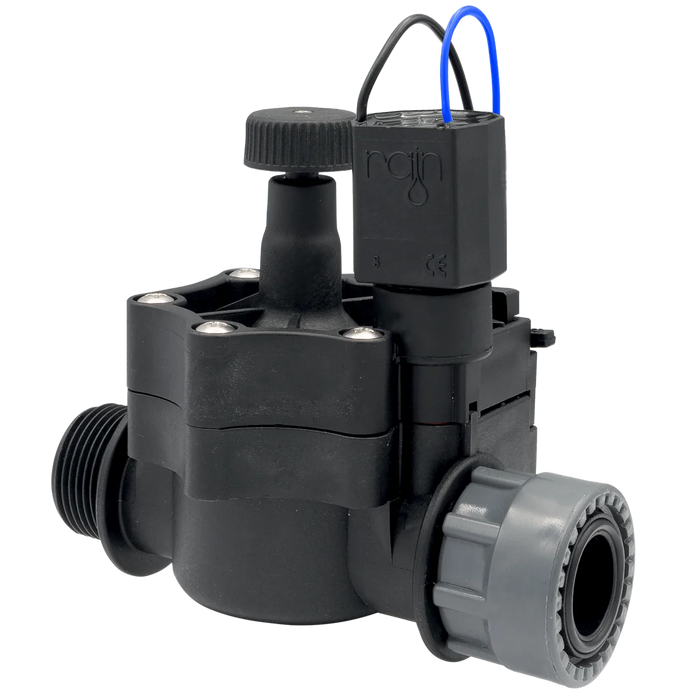

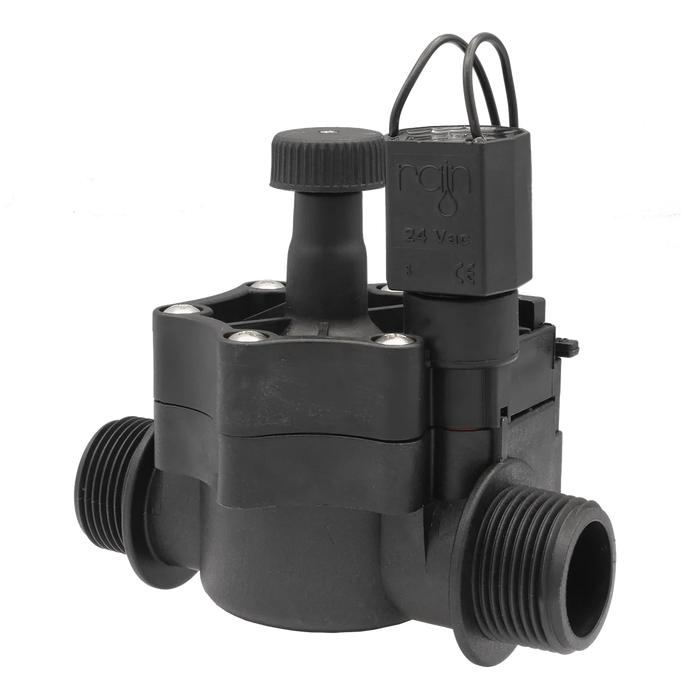

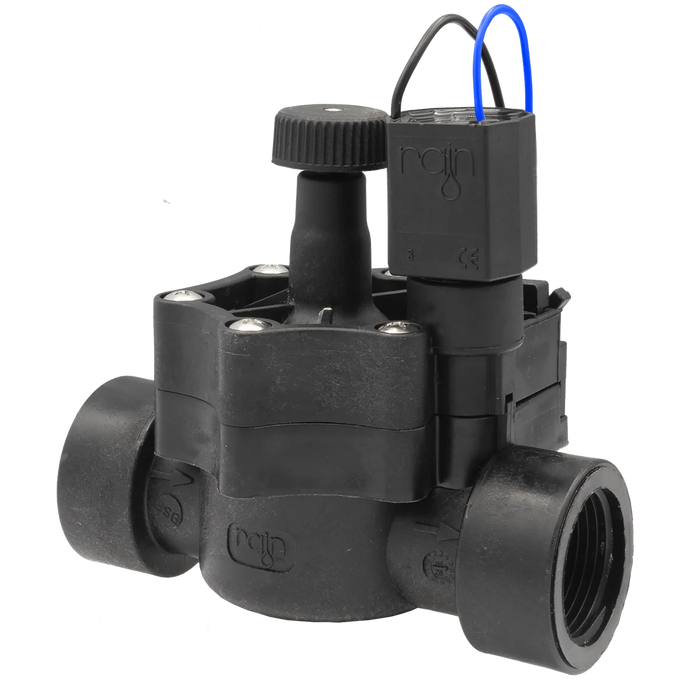

RAIN RN155 PLUS Solenoid Valve 25mm/1" with 9VDC Latching Coil

Save $14.59 Save $14.59
Original price WAS $72.92
Original price WAS $72.92 - Original price $72.92
Original price WAS $72.92
Current price NOW $58.33
$58.33 - $58.33
Current price NOW $58.33
Excl. GST
Flow Rate
35 - 90 L/m
The flow rate of water from the fixture.
35 - 90 L/m (Litres per Minute)
2100 - 5400L/h (Litres per Hour)

9.25 - 23.78 GPM (Gallons per Minute)
554.76 - 1426.53 GPH (Gallons per Hour)
At 100 - 1300 KPa
Minimum: 100 KPa
Maximum: 1300 KPa

We accept all major credit cards.

  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Bank Transfer
The RN155 PLUS Manifold Solenoid Valve 25mm/1" is the ideal solution for residential and semi commercial irrigation with flow rates from 30 l/min to 90 l/min. It comes with with DC Coil 9VDC which is compatible with any DC Battery Operated Irrigation Controller.
Valve Configuration: 1" Female inlet x 1" Female outlet.

Value Added Features

  • QUICK CONNECTION. The unique waterproof Built in quick connection allows quick installation without the use of electrical connectors and quick maintenance of the solenoid valves ( for DC Valves )
  • Patented manifold system allows a considerable saving of time during the installation phase but above all allows the replacement of the valve in a short time and without using of tools ( for M x UN Valves )
  • O-ring seal for high performance.
  • Single-piece diaphragm for reliable leak-free valve closing
  • Flow Control
9 Vdc Solenoid

9 Vdc Solenoid

Battery-operated controllers control 9Vdc latching solenoids. The control unit will send an electrical signal at the start of irrigation to open the solenoid valve and a signal at the end of irrigation to close the solenoid valve.

24 Vac Solenoid

24 Vac Solenoid

The controllers control 24 Vac normally closed solenoids. The control unit will supply the solenoid with a 24 Vac electrical signal for the entire irrigation time to open the electrovalve.

Manifold system

Manifold system

The patented Rain Manifold System allows easy installation of solenoid valves and during valve box maintenance allows quick removal of the solenoid valve.

    RN 155 PLUS
    Manufacturing material: Glass fiber PA 6 30%
    Solenoid inrush absorption 24 Vac: 0.43 A
    Absorption at solenoid maintenance 24 Vac: 0.21 A
    Operating flow rate: 30 - 150

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
