Rain
Rain Pressure Regulator 100
SKU 120.8000100

Rain Pressure Regulator 100

WAS $0.00 - $0.00
WAS
$145.20
$145.20 - $145.20
$145.20
Excl. GST

We accept all major credit cards.

  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Bank Transfer

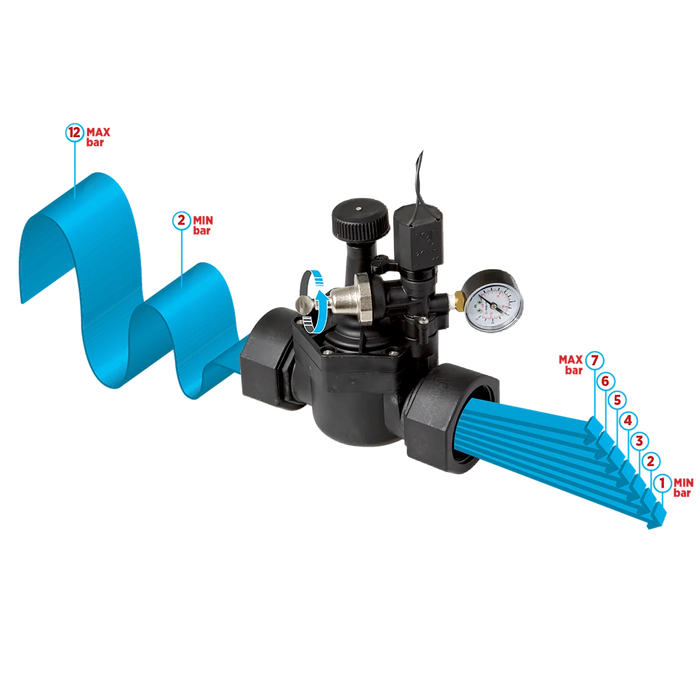

The pressure regulator, which is compatible with all RAIN solenoid valves, allows for adjustment of the output pressure from the solenoid valve. The outlet pressure of the solenoid valve can be adjusted from a minimum of 1 bar to a maximum of 7 bar. The pressure difference between inlet and outlet is a minimum of 1 bar.

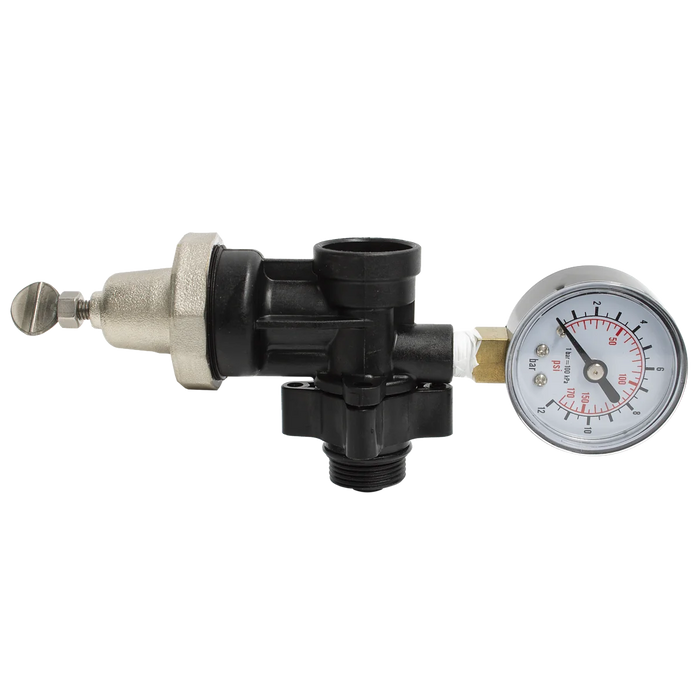

    Rain Pressure Regulator 100
    Function: Adjusts the outlet pressure of the solenoid valve
    Inlet pressure min: 2.0 bar
    Inlet pressure max: 10.0 bar
    Minimum adjustment delta: 0.5 bar
    Temperature min: +4°C
    Temperature max: 70°C
    Minimum inlet pressure at valve: 2.0 bar
    Material: Nylon and fiberglass
    Reading type: Manometer
    Mechanism: Adjustment screw

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.

FAQ's

What is a relief valve and what does it do?

In irrigation systems, a relief valve, also called a pressure relief valve (PRV), acts as a safety guard against pressure spikes. Here's how it protects your irrigation system:

Prevents Damage: Imagine your irrigation system as a network of pipes. When water pressure builds beyond a safe limit, the relief valve acts like a release valve. It opens and diverts excess water, preventing pipe bursts, sprinkler head damage, and potential leaks.

Protects Components: High pressure can also harm pumps, valves, and other irrigation system components. The relief valve safeguards these by ensuring pressure stays within the recommended range.
