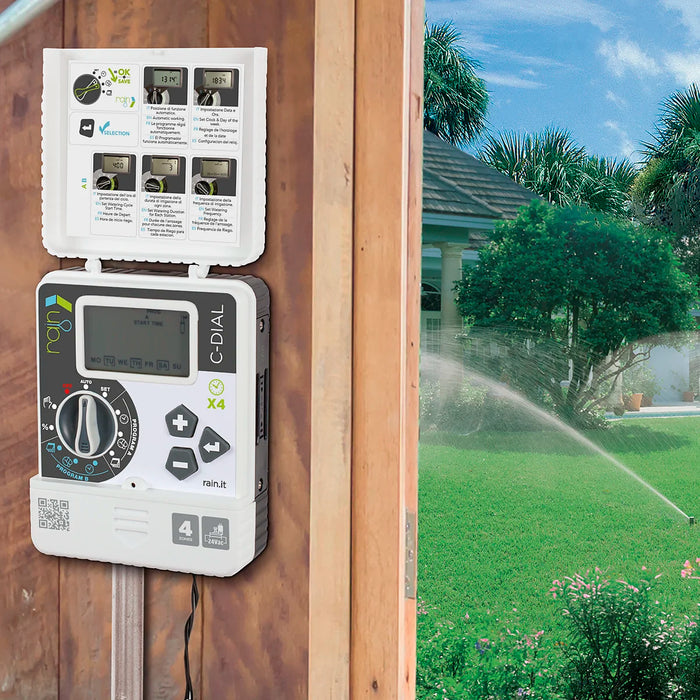

Rain C Dial Indoor 24VAC Residential Irrigation Controller
SKU 200.4180410

Rain C Dial Indoor 24VAC Residential Irrigation Controller

WAS $0.00 - $0.00
WAS
$109.57
$109.57 - $114.14
$109.57
Excl. GST

We accept all major credit cards.

  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Bank Transfer

The C-Dial is a compact control unit, easy to operate, making it perfect for small residential applications. It can control up to 6 solenoid valves with 2 programs and 2 starts each. The practical 3 Easy Steps programming allows irrigation to be adjusted in just 60 seconds.

C-DIAL INSTRUCTION ENG

3 Easy Steps

3 Easy Steps

The special three-step programming feature allows for easy and intuitive programming in less than 60 seconds. The programming logic is based on answering three simple questions: what time of day to water, for how long, and how often.

Sensor input

Sensor input

The controller is equipped with a sensor input for the connection of the rain sensor, 2 wired normally closed. Installation of the rain sensor prevents irrigation during rain events thus saving water.

24 Vac Solenoid

24 Vac Solenoid

The controllers control 24 Vac normally closed solenoids. The control unit will supply the solenoid with a 24 Vac electrical signal for the entire irrigation time to open the electrovalve.

    Rain C Dial Indoor 24VAC Residential Irrigation Controller
    Controller type: Wall-mounted
    Power supply: External transformer 220 VAC 50–60 Hz – 24 Volts AC, 0.8 AMP
    Back-up battery: 2 alkaline batteries 1.5 volts (AA) not included
    Rain sensor input: Yes
    Pump/master valve control outlet: Yes
    Closing lid: Yes
    Low battery signal: Yes
    Maximum number of zones: 6
    Models available: 4 and 6 zones
    Programming mode: Traditional
    Number of programs: 2
    Start times per program: 2
    Maximum number of starts per day: 4
    Minimum irrigation time per zone: 1 min
    Maximum irrigation time per zone: 240 min
    Irrigation frequency: By days of the week
    Manual start: By zone
    Reset button: Yes
    Clear button: Yes
    OFF function: Control unit
    Seasonal adjustment: From 10% to 200%

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
