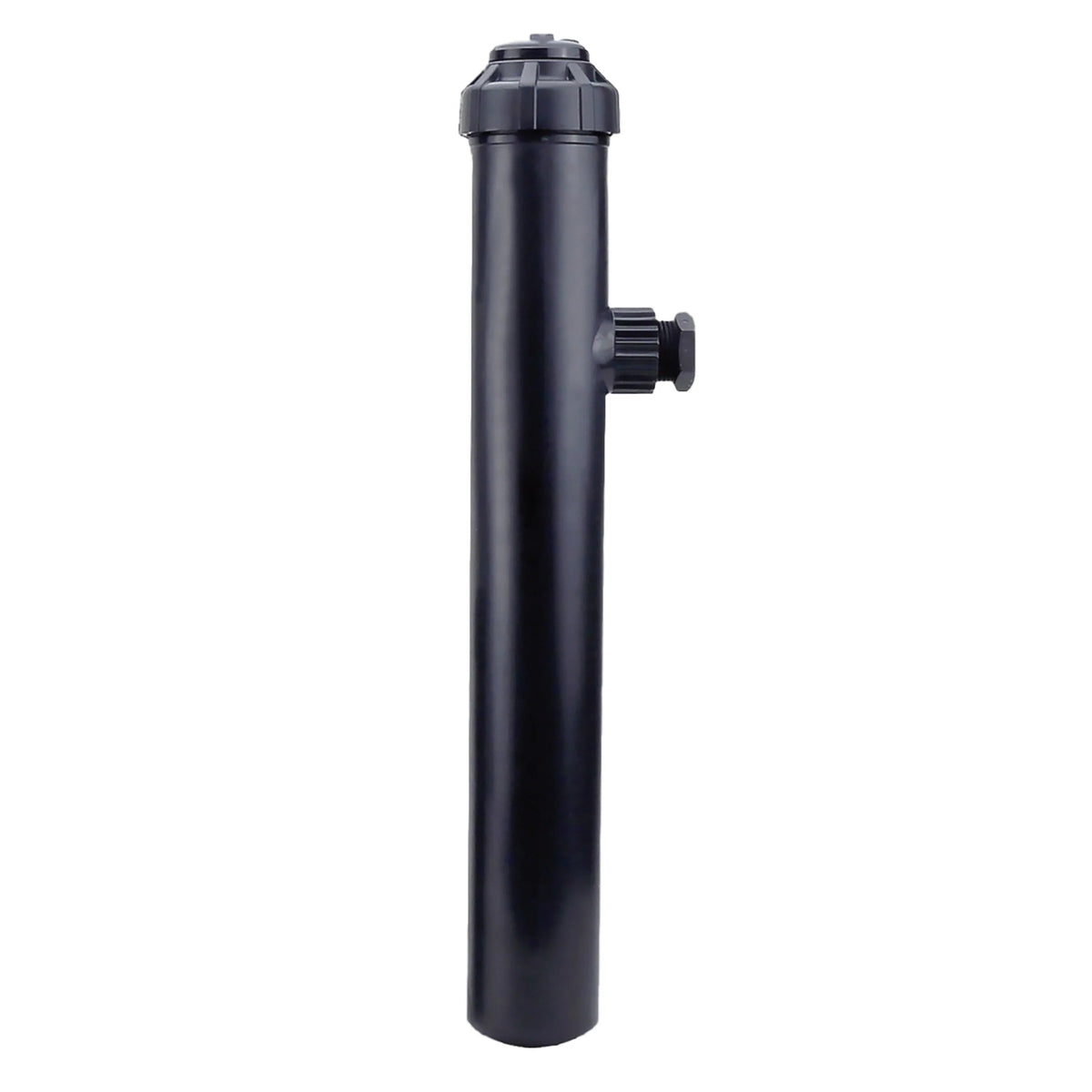

Toro T5 High Pop 12 inch (305mm) Rotor Sprinkler with RapidSet® with Plastic Riser
Toro T5 Rotor Sprinkler with Plastic Riser, Check Valve and RapidSet Feature
The Toro T5 RapidSet™ Series Rotor is packed with features, including an industry leading 5” pop-up height, advanced nozzle technology and superior debris tolerant seal.
- RapidSet® Arc Adjustment within seconds without tools
- Arc from 40? to 360?
- In-built Stream Straighteners give unmatched uniformity
- 5" Standard Pop-up height or 12" Hi-Pop
- Available with Stainless Steel Riser or effluent options
- Standard Nozzles #1.5 - #8.0, Radius 10.06 - 15.24m, Flow 4.4 - 36.7 l/m, Trajectory 25?, Pressure 1.7 - 4.5 bar
- Inlet 3/4" Female Threaded
- Low angle Nozzles #1.0 - #3.0, Radius 7.62 - 10.97m, Flow 2.8 - 14.0 l/m, Trajectory 10?, Pressure 1.7 - 4.5 bar
- 5 Years Warranty
Features
RapidSet® Arc Adjustment
Arc adjustments from 40° to 360° can be made quickly with a few twists of the turret – no tools required. The patent pending RapidSet slip clutch also protects against gear damage caused by intentional vandalism or inexperienced users.
Airfoil Technology Nozzles
The T5 RapidSet rotor comes with a full set of 8 standard nozzles (25° trajectory) and 4 low angle (10° trajectory) nozzles. The nozzles unique geometry creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity without forcefully washing out newly laid seeds.
5" Pop-Up
Easily replaces most competitive 4” pop-up rotors in the same footprint, but delivers an extra inch of nozzle clearance.
Available Stainless Steel Models
Commercial-grade 304 stainless steel riser and nozzle base sleeves help prevent ‘stick-ups’ and eliminate scoring of the riser caused by coarse and sandy soils.
Specifications
| Radius |
7.6 - 15.2m |
| Flow Rate |
2.8 - 36.7 Lpm |
| Operating Pressure Range |
170 - 450 kPa (Max. 517 kPa) |
| Trajectory |
25° standard, 10° low angle |
| Pop-up to nozzle |
125mm (lawn), 300mm (high pop) |
| Inlet |
20mm |
| #3.0 nozzle |
Factory installed |
| Warranty |
5 years |
| Options |
Check valve, stainless steel riser, effluent |
Documentations
T5 RapidSet® Rotors – Sell Sheet MetricVideos
Compatible with
Swing Joints
Swing joints are pipe fittings that are used to attach sprinklers or rotors to an irrigation system. The T5 is only compatible with 20mm threaded Swing Joints.
- Click here to shop for Swing Joints
T5 Adjustment tool
Used to make changes to your T5 sprinkler
- Click here to shop for the T5 adjustment tool.
Spare Nozzle tree for T5
In case of loss or breakages we also offer spare Nozzle Racks for T5
- Click here to shop for the spare Nozzle Rack for T5
