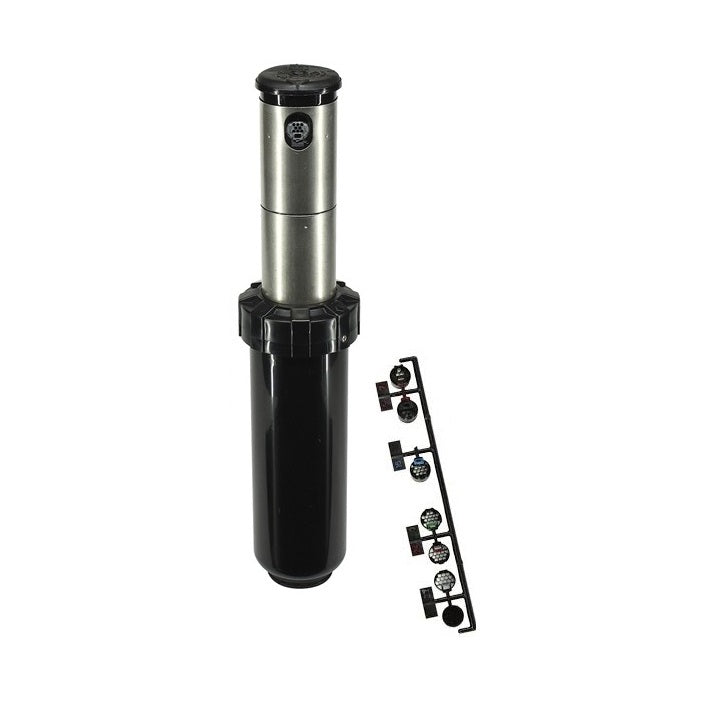

Toro T7 Sports Field Rotor Sprinkler (with Stainless Steel Riser)

The Toro® T7 Rotor is built to withstand the harsh conditions present in municipal, sports field and commercial rotor applications. The planetary gear-drive and closed gearbox delivers precision full circle rotation speed and make the T7 a proven performer in dirty water applications.

• Single port with highly efficient "Honeycomb" nozzles for uniformity
• Top arc indication allows for wet and dry adjustments
• Vandal and abuse-resistant through SmartArc™ and slip clutch.
• Zero flush wiper seal and heavy-duty retraction spring
• 5" (125mm) pop-up nozzle
• Inlet 1" female threaded
• High Flow:
• Nozzles #7.0 - #27.0
• Radius 14.1 - 22.9m
• Flow 25.4 - 116 l/m
• Trajectory 25?
• Pressure 2.8 - 6.9 bar
• Low Flow:
• Nozzles #2.0 - #9.0
• Radius 12.2 - 17.1m
• Flow 6.4 - 49.2 l/m
• Trajectory 25?
• Pressure 2.8 - 6.9 bar

Features

Top Arc Indication
Arc setting indicator on top of the rotor allows for easy wet or dry adjustments from 45°-360°.

High Efficiency Nozzles
Single port design ensures water is evenly distributed across the pattern without putting too much water near the head, which prevents seed from washing away.

Vandal and Abuse Resistance
Smart Arc™ memory safely returns sprinkler to previously set arc if vandalized.

Design Solutions and Safety
Standard check valve to prevent low head drainage. Small exposed diameter reduces possibility of injury on play areas. Stainless steel riser and nozzle base stands up to the toughest of abuse.

Versatility
Available in low-flow models (identified by "circle L" on rubber cover), for short radius (38'-53') applications, such as baseball infields.

Specifications

• Radius
  Low-flow models: 11.6 - 16.2m (38'-53'); High-flow models: 14.0 - 25.0m (46'-83')

• Flow
  Low-flow models: 6.4 - 49.2 l/m (1.7-13.0 g/m); High-flow models: 25.4-116 l/m (6.8-30.5 g/m)
• Trajectory
  25°
• Arc
  Full Circle; Part-circle Adjustable; Part/Full circle in One
• Recommended Operating Pressure
  40-100 psi (2.8 - 6.9 bar)
• Inlet
  25 mm (1")
• Pop-Up Height
  127 mm (5")
• Body Height
  224 mm (8.8")
• Cap Diameter
  56 mm (2.2")

Documentations

 Toro T7 Rotor Sprinkler - Cell Sheet

 Toro T7 Rotor Sprinkler - User's Guide

 Toro T7 Rotor Sprinkler - Bidding Specifications

Videos

Compatible with

Swing Joints
Swing joints are pipe fittings that are used to attach sprinklers or rotors to an irrigation system. The T7 is only combatable with 25mm threaded Swing Joints.

• Click here to shop for Swing Joints

T7 Adjustment tool
Used to make changes to your T7 sprinkler

• Click here to shop for the T7 adjustment tool.

Spare Nozzle tree for T7
Incase of losses or breakages we also offer Spare Nozzle Rack for T7

• Click here to shop for the a Spare Nozzle Rack for T7
