Toro T7 Sports Field Rotor Sprinkler (with Plastic Riser)

SKU T7P-52
Original price $0.00 - Original price $0.00
Original price
$189.27
$189.27 - $189.27
Current price $189.27
Excl. GST
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

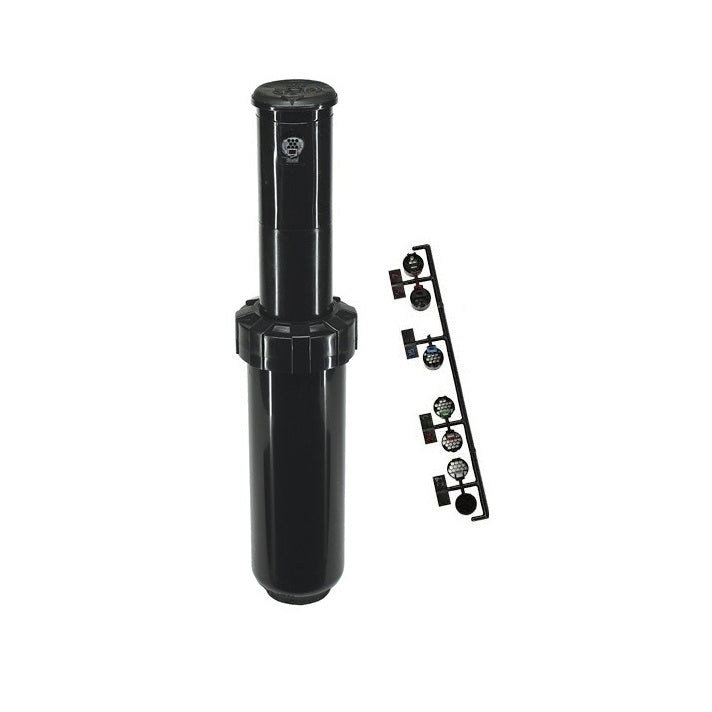

T7 Sports Field Rotor Sprinkler (with Plastic Riser)

The Toro® T7 Rotor is built to withstand the harsh conditions present in municipal, sports field and commercial rotor applications.  The planetary gear-drive and closed gear box delivers precision full circle rotation speed and make the T7 a proven performer in dirty water applications.

  • Single Port with highly efficient "Honeycomb" nozzles for uniformity.
  • Top arc indication allows for wet and dry adjustments.
  • Vandal and abuse resistant through SmartArc™ and slip clutch.
  • Zero flush wiper seal and heavy-duty retraction spring.
  • 5" (125mm) pop-up nozzle
  • Inlet 1" female threaded
  • High Flow:
    • Nozzles #7.0 - #27.0
    • Radius 14.1 - 22.9m
    • Flow 25.4 - 116 l/m
    • Trajectory 25˚
    • Pressure 2.8 - 6.9 bar
  • Low Flow:
    • Nozzles #2.0 - #9.0
    • Radius 12.2 - 17.1m
    • Flow 6.4 - 49.2 l/m
    • Trajectory 25˚
    • Pressure 2.8 - 6.9 bar
Features

View Larger

Top Arc Indication
Arc setting indicator on top of the rotor allows for easy wet or dry adjustments from 45°-360°.

View Larger

High Efficiency Nozzles
Single port design ensures water is evenly distributed across the pattern without putting too much water near the head, which prevents seed from washing away.

View Larger


Vandal and Abuse Resistance
Smart Arc™ memory safely returns sprinkler to previously set arc if vandalized.

View Larger

Design Solutions and Safety
Standard check valve to prevent low head drainage. Small exposed diameter reduces possibility of injury on play areas. Stainless steel riser and nozzle base stands up to the toughest of abuse.

View Larger


Versatility
Available in low-flow models (identified by "circle L" on rubber cover), for short radius (38'-53') applications, such as baseball infields.

Specifications
  • Radius
    Low-flow models: 11.6 - 16.2m (38'-53'); High-flow models: 14.0 - 25.0m (46'-83')
  • Flow
    Low-flow models: 6.4 - 49.2 l/m (1.7-13.0 gpm); High-flow models: 25.4-116 l/m (6.8-30.5 g/m)
  • Trajectory
    25°
  • Arc
    Full Circle; Part-circle Adjustable; Part/Full circle in One
  • Recommended Operating Pressure
    40-100 psi (2.8 - 6.9 bar)
  • Inlet
    25 mm (1")
  • Pop-Up Height
    127 mm (5")
  • Body Height
    224 mm (8.8")
  • Cap Diameter
    56 mm (2.2")
Documentations
Videos







Compatible with

Swing Joints
Swing joints are pipe fittings that are used to attach sprinklers or rotors to an irrigation system. The T7 is only compatible with 25mm threaded Swing Joints.


T7 Adjustment tool
Used to make changes to your T7 sprinkler.


Spare Nozzle tree for T7
In case of loss or breakages we also offer Spare Nozzle Rack for T7.

  • Click here to shop for the Spare Nozzle Rack for T7.
