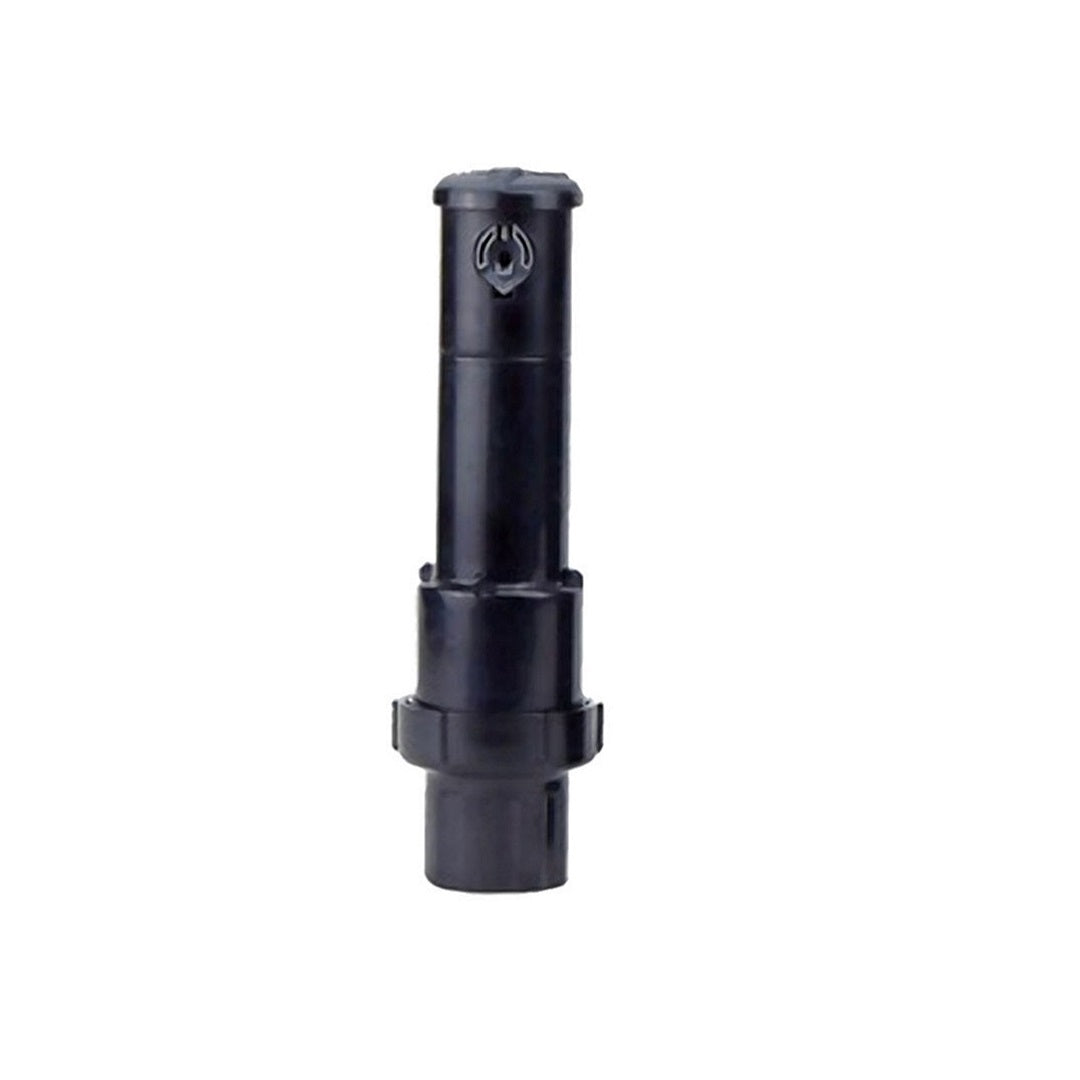

Toro T5 Shrub Rotor Sprinkler
T5 Shrub Rotor with Check Valve and RapidSet.
The Toro T5 RapidSet Series Rotor has the features to satisfy all your basic irrigation needs while surprising you with a few extras. The T5 offers an extra inch of pop-up height compared to most competitive units. All lawn models are now available with the optional RapidSet feature, a quick and easy way to make arc adjustments with NO TOOLS. For those day-in and day-out installations, the T5 is the only rotor you’ll need.
Features
RapidSet® Arc Adjustment
Arc adjustments from 40° to 360° can be made quickly with a few twists of the turret – no tools required. The patent pending RapidSet slip clutch also protects against gear damage caused by intentional vandalism or inexperienced users.
Airfoil Technology Nozzles
The T5 RapidSet rotor comes with a full set of 8 standard nozzles (25° trajectory) and 4 low angle (10° trajectory) nozzles. The nozzles’ unique geometry creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity without forcefully washing out newly laid seeds.
Specifications
| Radius |
7.6 - 15.2m |
| Flow Rate |
2.8 - 36.7 l/m |
| Operating Pressure Range |
170 - 450 kPa (Max. 517 kPa) |
| Trajectory |
25° standard, 10° low angle |
| Pop-up to nozzle |
125mm (lawn), 300mm (high pop) |
| Inlet |
20mm |
| #3.0 nozzle |
Factory installed |
| Warranty |
5 years |
| Options |
Check valve, stainless steel riser, effluent |
Documentations
T5 RapidSet® Rotors – Sell Sheet MetricVideos
Compatible with
Swing Joints
Swing joints are pipe fittings that are used to attach sprinklers or rotors to an irrigation system. The T5 is only combatable with 20mm threaded Swing Joints.
- Click here to shop for Swing Joints
T5 Adjustment tool
Used to make changes to your T5 sprinkler
- Click here to shop for the T5 adjustment tool.
Spare Nozzle tree for T5
In case of loss or breakages we also offer Spare Nozzle Rack for T5
- Click here to shop for the Spare Nozzle Rack for T5
