Spectrum FieldScout SC 900 Soil Compaction Meter

SKU 6110FS
Original price $0.00 - Original price $0.00
Original price
$5,341.00 - $5,341.00
Current price $5,341.00
Excl. GST
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

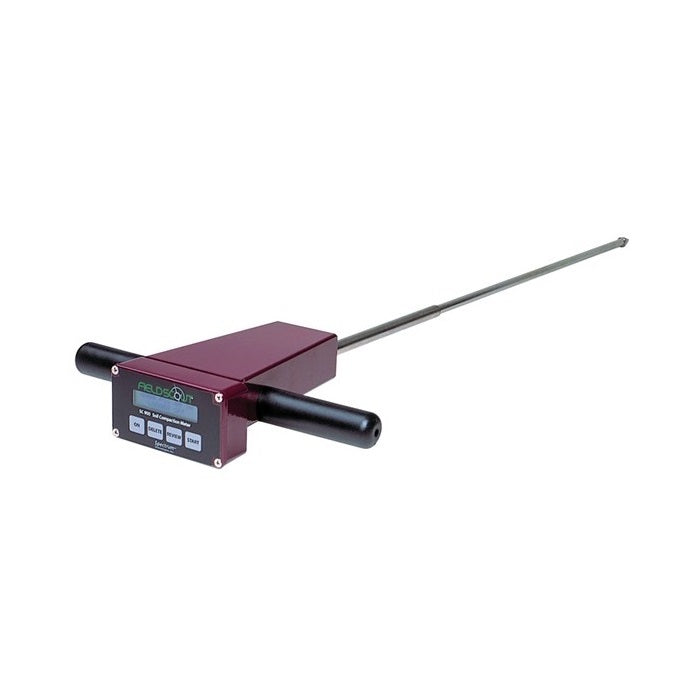

Spectrum FieldScout SC 900 Soil Compaction Meter

Help make decisions regarding areas of the field that require tillage, changes to crop rotation, and planting of cover crops

  • Includes 1/2 in and 3/4 in cone tip
  • Takes compaction readings to a depth of 18 in (45 cm)
  • Exclusive ultrasonic depth sensor captures readings in 1 in (2.5 cm) increments
  • Penetration resistance measured by internal load cell
  • Compaction data is displayed in psi or kPa (1 psi = 6.9 kPa)
  • Connects to any GPS receiver with serial output option*
  • Equipped with internal data logger and RS-232 port
  • Records 772 measurements (579 with added GPS/DGPS option)
  • Configure and download meter with FieldScout® software and USB-to-3.5mm-Stereo-Plug Adapther (Item 3661U.(included)**
  • Compatible with SpecConnect - view contour maps of compaction at each depth, or an "ocean floor" map showing the depth of the compaction layer.
  • Includes carrying case and depth target

The SC 900 meter now includes the brand new 3/4" cone tip, as well as improved handling of insertion errors. The 3/4" tip is appropriate for coarse soils. These new features took effect with units shipped after January 1, 2012. Meters acquired prior to 2012 can be upgraded by purchasing the SC900 Upgrade Package (Item #6110FSUP, see purchase table above). The upgrade includes a microcontroller chip with updated firmware, a 3/4" cone tip, new depth target, and updated User's Manual.

SpecConnect - General Overview

    Spectrum FieldScout SC 900 Soil Compaction Meter
    Measurement Units: Cone Index (PSI or kPa)
    Resolution: 1 in (2.5 cm), 5 PSI (35 kPa)
    Accuracy: ± 0.5 in (1.25 cm) Depth, ±15 PSI (103 kPa) Pressure
    Range: 0 to 18 in (0 to 45 cm), 0 to 1,000 PSI (0 to 7,000 kPa)
    Battery/Life: 4 AAA alkaline batteries; approximately 12-month life
    Data Logger Capacity: 772 profiles without GPS; 579 profiles with GPS

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
