SKU: 280.1170100

Rain S075 S Pop Up Sprinkler

Save 20%
$25.35 excl. GST $31.69 $25.35 excl. GST /

The Intelligent Flow Technology® (IFT) device of the S075 S rotor allows simultaneous and proportional range adjustment of up to 50% and water savings of up to 30%. Integrated range adjusting devices (IFT), 360° continuous rotation, ARC MEMORY CLUTCH vandal-proof device, and the patented ARC SET DEGREE system that allows you to adjust the working angle while saving up to 75% installation time make it the ideal sprinkler for public and private applications.

Rain S075 S Pop Up Sprinkler

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

Intelligent Flow Technology

Intelligent Flow Technology

The patent on the range adjustment allows the sprinkler radius to be reduced by up to 20% by acting on a membrane inside the nozzle turret without interfering with the sprinkler precipitation, it is also, with IFT technology, possible to close the sprinkler.

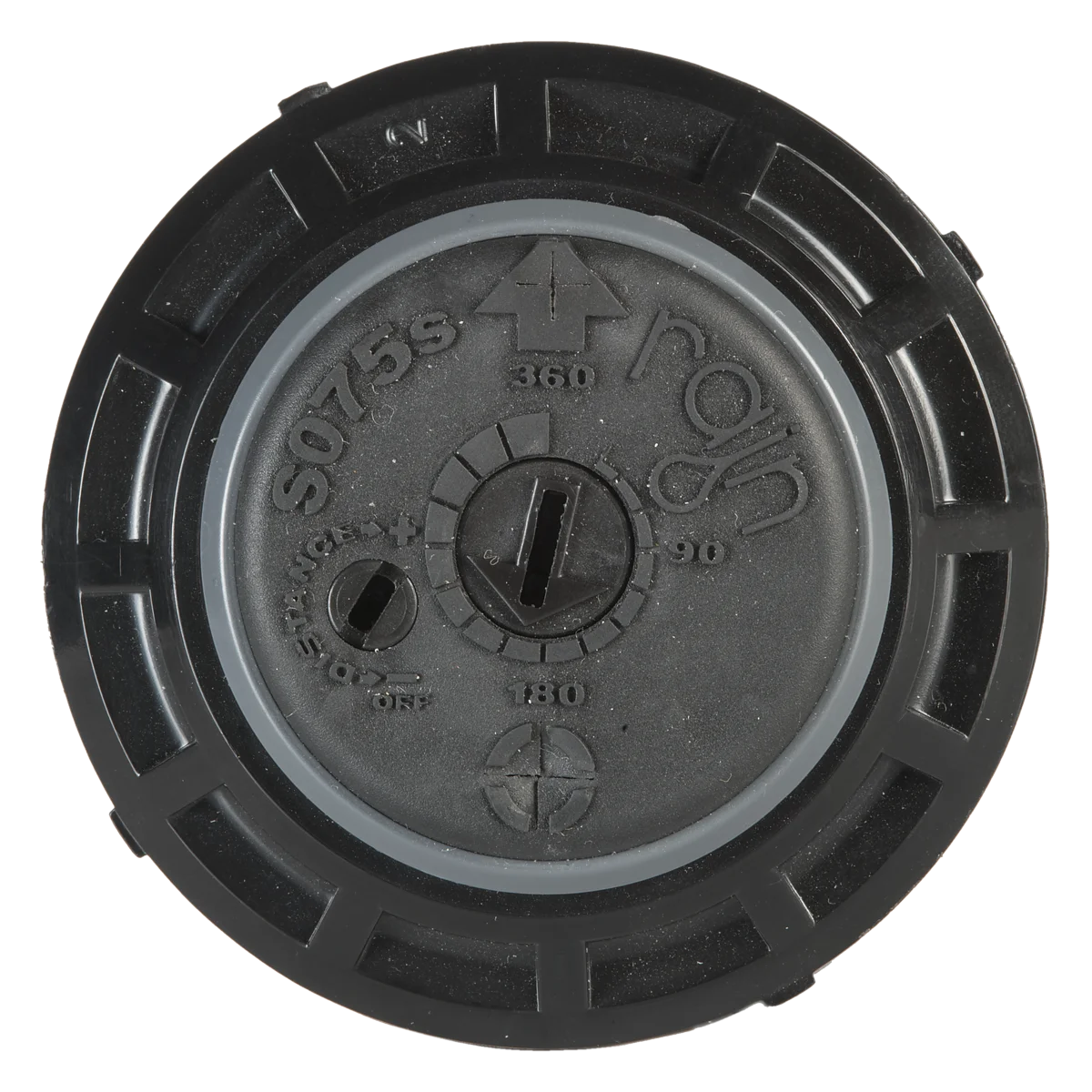

Arc Set Degree

Arc Set Degree

Rain's patented sprinkler angle adjustment system allows quick and intuitive adjustment of all angles by indicating the selected angle on the nozzle turret.
360° CONTINUOUS

360° CONTINUOUS

The sprinkler set at 360° does not have a return point, but continues to turn in the same direction.

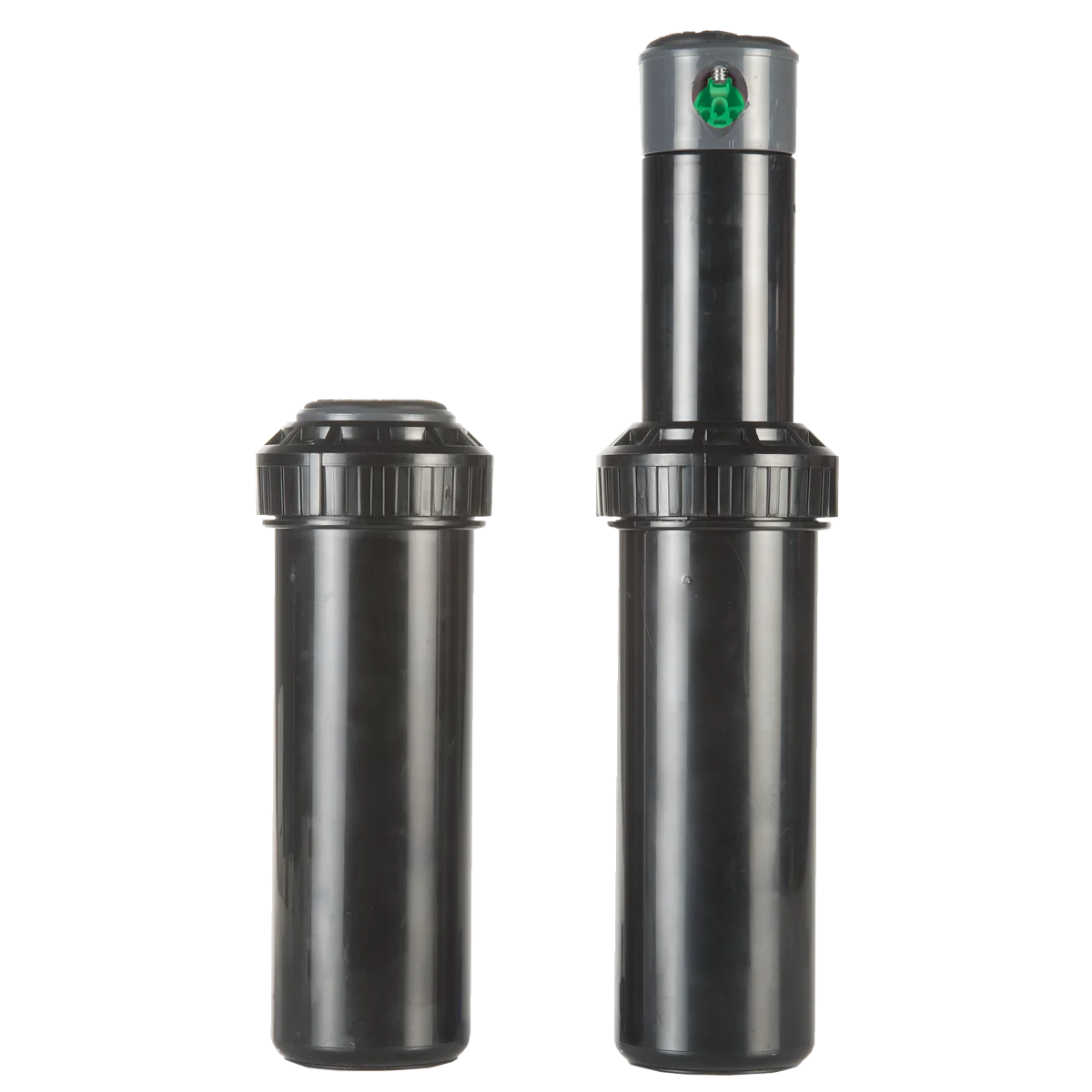

Rain S075 S Pop Up Sprinkler Specs

Sprinkler type: Rotor
Inlet: 3/4" F
Minimum range (radius): 7.9 m
Maximum range (radius): 14 m
Working angle: 40° to 360°
Precipitation Rate: 0.3 to 2.9 cm per hour (depending on sprinkler spacing and nozzle used)
Minimum operating flow rate: 4.2 l/min
Maximum operating flow rate: 42 l/min
Minimum working pressure: 2.0 bar
Maximum working pressure: 5.0 bar
Angle of trajectory: 25°
Low trajectory angle: 11°
Raiser Height: 10.2 cm
Body Height: 18.7 cm
Starting position: Right
Visual working angle adjustment:
Adjustment: IFT range adjustment
Degrees: Continuous 360°
Protection: Anti-vandalism mechanism
Drainage valve: Optional
Number of nozzles available: 4 angle 11°

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
