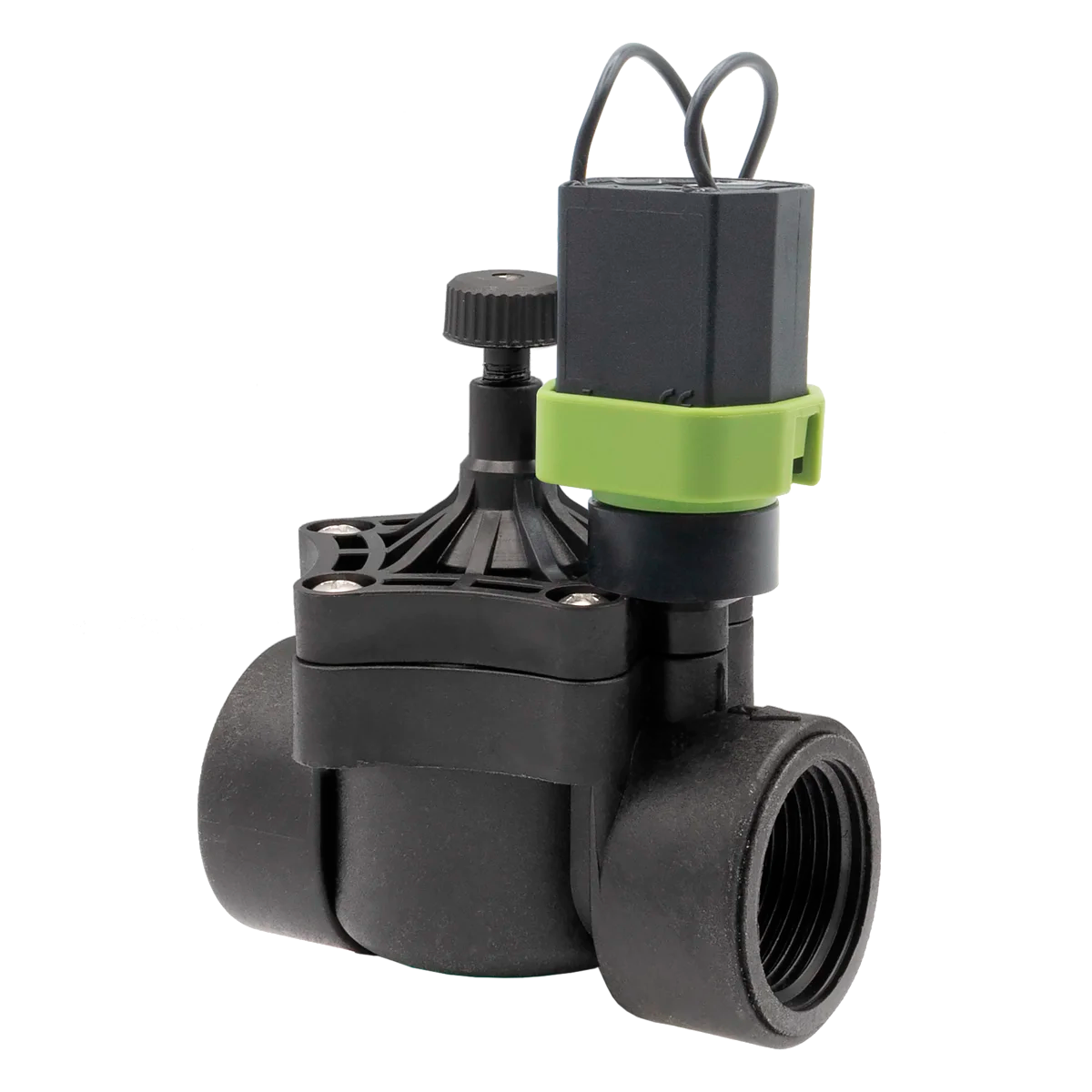

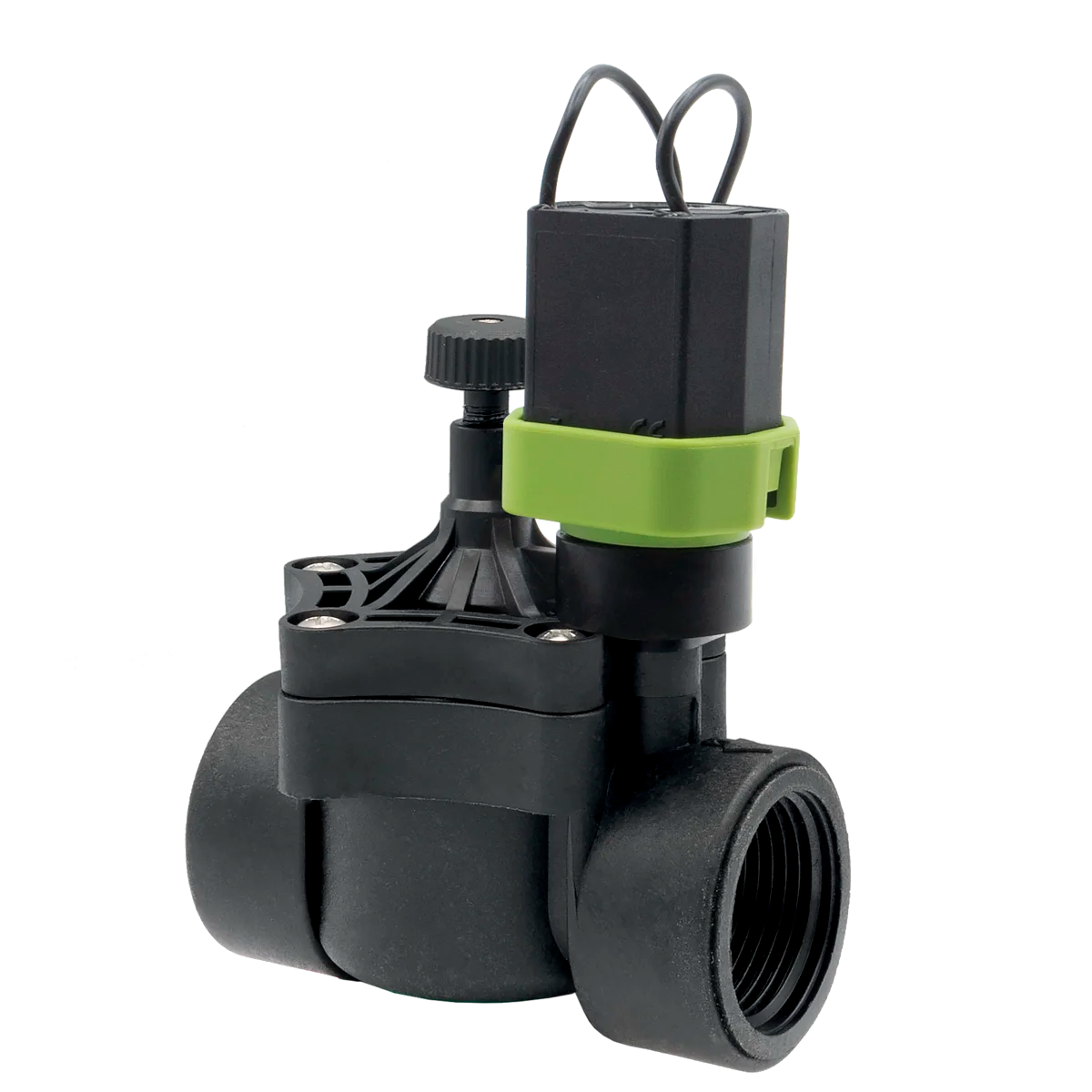

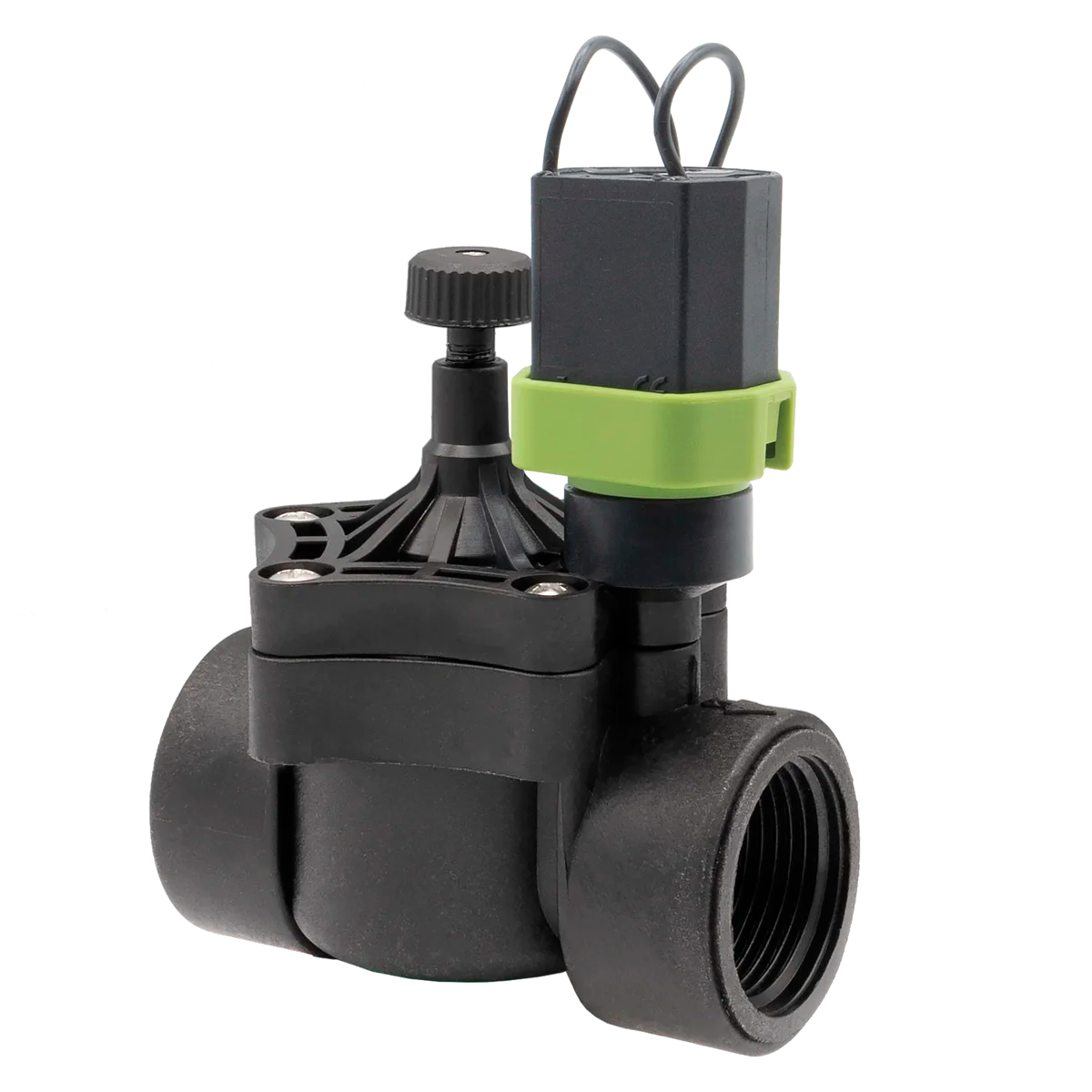

Rain RN 150 Solenoid Valve

Name: Rain RN 150 Solenoid Valve
Availability: InStock

WAS $0

WAS $0.00 - $0.00

WAS

$68.69

$68.69 - $68.69

$68.69

Excl. GST

Configuration

Quantity

Pickup available at Parkland Products Auckland

Usually ready in 24 hours

We accept all major credit cards.

Bank Transfer

The RN 150 solenoid valve is ideal for handling small flow rates from 10 l/min to 25 l/min and for small residential systems connected to the municipal water supply. The presence of the ring nut of the patented Manifold system allows significant time savings during installation, but more importantly, it allows the solenoid valve to be replaced in a matter of seconds, directly from inside the valve box and without the use of tools.

Choose your configuration.

Features

9 Vdc Solenoid

Battery-operated controllers control 9Vdc latching solenoids. The control unit will send an electrical signal at the start of irrigation to open the solenoid valve and a signal at the end of irrigation to close the solenoid valve.

Manifold system

The patented Rain Manifold System allows easy installation of solenoid valves and during valve box maintenance allows quick removal of the solenoid valve.

Downloads

Rain RN 150 Solenoid Valve Spec Sheet Download View File
Rain RN 150 Spec Sheet Pro Catalogue Download View File

Specifications

Rain RN 150 Solenoid Valve
Threads available:	3/4" M, 3/4" F, 1" F, 1" M, 1" MxU
Solenoid type:	24 Vac - normally closed, 9 Vdc - latching
Minimum pressure:	1 bar
Maximum pressure:	12 bar
Minimum operating flow rate:	20 l/min
Maximum operating flow rate:	90 l/min
Minimum operating temperature:	4°C
Maximum operating temperature:	70°C
Diaphragm type:	In co-molded parts
Manufacturing material:	Glass fiber PA 6 30%
Solenoid inrush absorption 24 Vac:	0.43 A
Absorption at solenoid maintenance 24 Vac:	0.21 A

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
