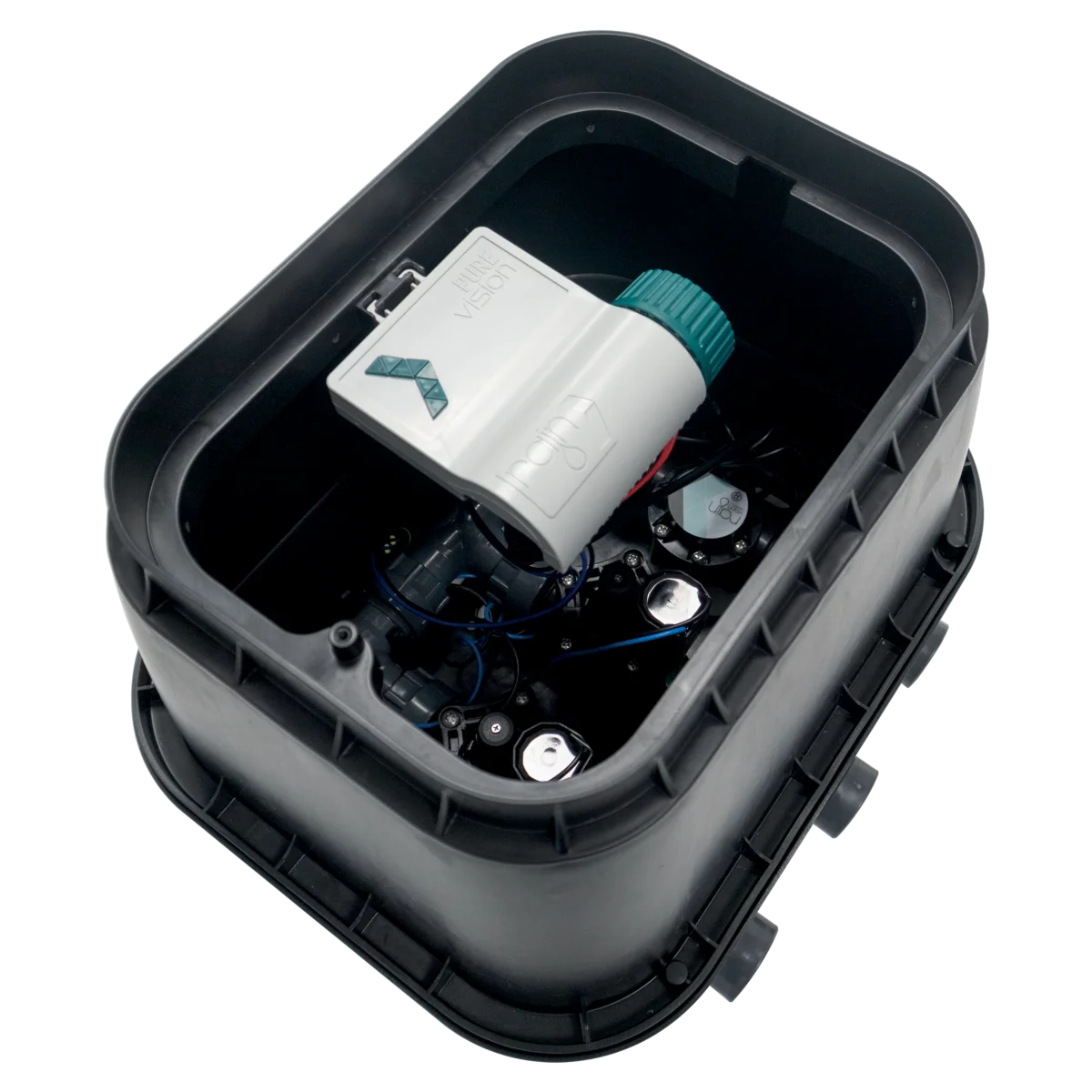

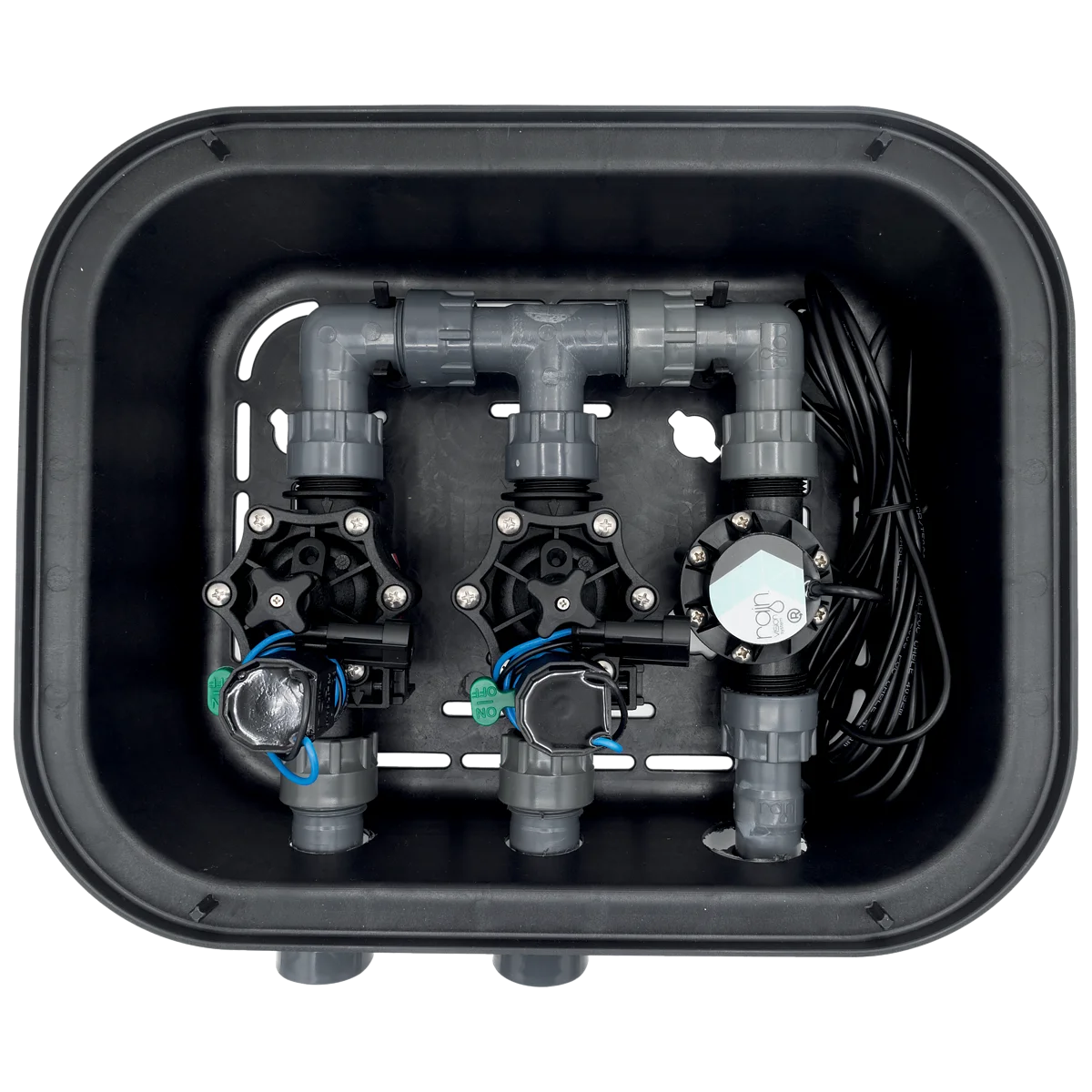

Rain Pre-Assembled Valve Box Kit 111
SKU 164.2155111

Rain Pre-Assembled Valve Box Kit 111

WAS $0.00 - $0.00
WAS
$729.03
$729.03 - $729.03
$729.03
Excl. GST

We accept all major credit cards.

  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Bank Transfer

The EZ-Open 111 Smart Valve Box Kit for gardens up to 600 m² is designed to significantly reduce installation time and make the work of irrigation experts easier. It assembles in just 4 minutes and is the ideal solution for setting up a self-sufficient and eco-sustainable irrigation system, as the lithium batteries of the Pure Vision controller remain charged thanks to the Vision Turbina, which uses water from the system itself. Pure Vision is also remotely manageable, making maintenance time even more streamlined. The ultimate in efficiency and convenience!

Contains:

RAIN's Smart Valve box: ready-to-use in less than 5 minutes! (English subtitles)

CHALLENGE! How much time it takes to assemble a Rain smart valve-box kit?

Our mission is to make gardeners' job easier and faster. This translates into products that are e...
    Rain VALVE BOX 111-155
    Controller type: Valve-box
    Waterproof: IP68 watertight (submersible)
    Power supply: 18650 rechargeable lithium battery - 2,000 mAh 3.7V
    Recharging mode: Via Turbina Vision
    Bluetooth: Bluetooth 5.0 connection
    Internet connection: Via a Nuvola device of your choice (Wi-Fi or Cell)
    Sensors: Rain sensor input
    CU: Removable control unit
    Battery: Low battery signal
    Maximum number of zones: 2
    Minimum pressure: 1 bar
    Maximum pressure: 12 bar
    Nozzles: 4 different nozzles
    Charging: IP68 quick connector to be recharged

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.

FAQ's

VISION APP: What happens if I lose the data connection when I click save and send? Will I have to repeat the programming?

Yes, a data connection is necessary for saving. If the connection fails, the application and system will not be updated.

VISION APP: What is the difference between PAUSE and OFF?

OFF: The control unit is turned off, indicating the end of the irrigation season.

PAUSE: Temporarily suspends operation for a few days, resuming programming after the pause period.

VISION APP I see the umbrella icon and the active zone icon. What does that mean?

It means that the area being irrigated does not have a rain sensor active, while the others do. So the umbrella icon (rain sensor icon) appears for those areas where it is active, while it does not appear for the area which is irrigating.

VISION APP: I can't find devices to pair. What should I do?

Try updating the app, clearing Bluetooth settings, removing and reinserting the battery, or restarting your smartphone.

VISION APP: How can I re-pair a controller accidentally deleted from Nuvola?

Go to the Nuvola screen, search for devices, and re-pair with the previously associated control unit.

VISION APP: The Vision App is not responding. What could be the problem?

It may be due to background apps, processor overload, or device conditions. Restart your smartphone to resolve the issue.

VISION APP If I delete the App with the devices I have associated, will they remain saved in the Account? So if I reinstall the App, will I still find the devices saved in my Account?

Yes, if you uninstall the App with the devices associated with this Account and then install it again, you will still see the devices associated with the Account.

BLUETOOTH: What is the maximum distance for pairing Vision devices via Bluetooth?

The average distance is 15 meters under standard conditions but can vary due to obstacles and environmental factors.

BLUETOOTH: How many smartphones can simultaneously connect to a Vision device via Bluetooth?

Only one device can connect at a time as Bluetooth communication is point-to-point.

BLUETOOTH: Is it compatible with older smartphones?

Compatibility depends on Bluetooth version. Devices with Bluetooth 5.0 are recommended.

BLUETOOTH: I entered the Bluetooth password but can't pair the device. What should I do?

Ensure no other account is paired with the device, clear Bluetooth data, restart your smartphone, and try again.

BLUETOOTH: I forgot the Bluetooth password. How can I reset it?

Scan the QR code on the device to reset it to the default password (000000).

INTERNET CONNECTION: What kind of Wi-Fi does Vision System use?

It uses standard Wi-Fi (WPA2) with SSID and password.

INTERNET CONNECTION: What distance should I maintain between Nuvola and the Wi-Fi router?

The range is typically 25-30 meters, depending on obstacles like walls or trees.

INTERNET CONNECTION: How many accounts can pair with one Nuvola?

Only one account can link to a Nuvola, but one account can manage multiple Nuvola devices.

INTERNET CONNECTION: Pairing with Nuvola takes too long. Why?

Wireless interference or environmental factors may delay pairing. Normally, it takes around 10 seconds under optimal conditions.

INTERNET CONNECTION: Can Vision controllers connect to the Internet for remote management?

Yes, they can connect via Nuvola devices.

RECHARGING Is there a proper direction for installing Turbina Vision?

Yes, the direction is indicated by the arrow on the bottom of the Turbine

RECHARGING How long does it take the Turbine to recharge the battery?

Depending on the flow rate and thus the type of nozzle selected, it takes a couple of hours of irrigation to recharge the controller battery.

RECHARGING Where is the female battery power-charging connector located in the Pure Vision 2.0 control unit?

Inside the battery compartment of the controller.

RECHARGING How many charge cycles can the lithium battery of Vision controllers, not connected to recharging devices, sustain?

The lithium batteries of Vision control units not connected to automatic recharging devices last about 400 days with standard programming (2 openings/closures per day). Regarding irrigation cycles, the battery level (without recharging) drops from 100% to 20% after 15,000 cycles of opening and closing solenoid valves.

RECHARGING: How long does the Luce Vision solar panel take to recharge the battery?

A couple of hours under full sunlight.

RECHARGING: Where is the battery power-charging connector in Pure Vision 2.0?

Inside the controller’s battery compartment.

RECHARGING: What are the flow rate and pressure limits for Turbina Vision?

Maximum flow rate: 50 l/min, Minimum pressure: 1 bar, Maximum pressure: 6 bars.

RECHARGING: How long do Vision controller batteries last without recharging?

Approximately 400 days with standard programming (2 openings/closures per day).

RECHARGING: Can Luce solar panel and Vision Turbine charge the same device simultaneously?

No, two charging systems cannot connect to the same device at the same time.

RECHARGING: Are all Vision devices rechargeable?

No, some devices like Nuvola Mini WiFi Vision are not rechargeable. Others, such as Amico Vision, Zenit Vision, and Acqua Vision, are rechargeable.

VISION PROGRAMMING How do I switch from standard mode to advanced mode

Choose "advanced mode" from the settings menu in the upper-left corner.

VISION PROGRAMMING What does Save and send mean?

Save: to save the settings in the Server. Send: to send these settings to the Server

VISION PROGRAMMING In the Advanced Frequency mode, I entered a frequency for every 2 days and then Thursday and Friday because I need to irrigate those two days. Will the controller save my programming?

No, the controller saves only one of the set frequency modes. Specifically, it stores the last changed frequency. In the list of frequencies, the one that has the "check mark" will be stored.
