Rain

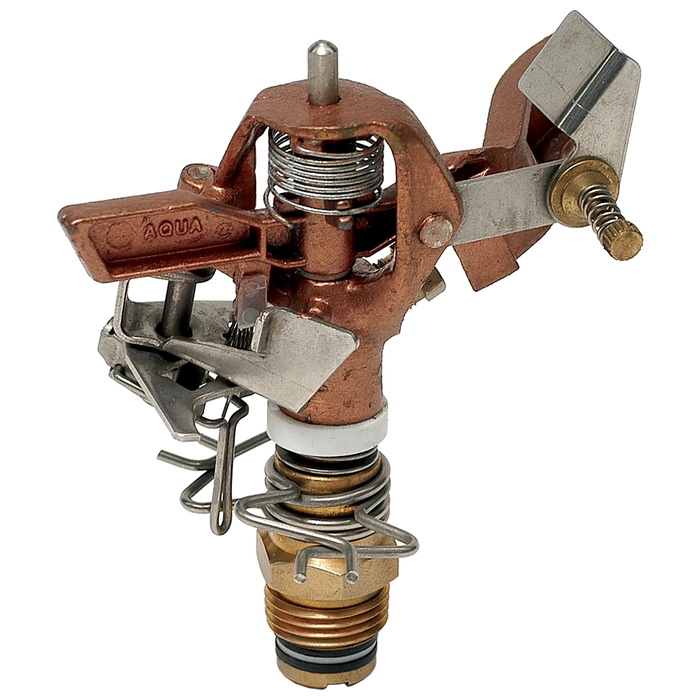

Metal sprinkler valve on a white background
SKU 270.1300031

Rain Adjustable Metal Impact Sprinkler Part Circle 20mm (3/4")

Save $15.53 (30%) Save $15.53
WAS $51.76
WAS $51.76 - $51.76
WAS $51.76
NOW $36.23
$36.23 - $36.23
NOW $36.23
Excl. GST

We accept all major credit cards.

  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Bank Transfer

The AQ-20PC is a ¾" part circle impact sprinkler for Efficient irrigation of field edges / turf application. Equipped with nozzles with integrated stream straightening vane for longer range with high water distribution uniformity.

  • Adjustable part-circle arc control: Ranging from 25 Degree to 335 Degree, allows coverage for specific parts without spraying areas that do not need water. Uniform
  • Water Distribution: Ensures even coverage, with a spray reach of up to 15 metres, making it suitable for a wide range of applications.
  • Durability: Heavy duty brass used for body, arm, nut, tube and nozzles while pivot pin and springs made of stainless steel.
    Rain Adjustable Metal Impact Sprinkler 20mm (3/4") 270.1300031
    Connection: 20mm (3/4") BSP/NPT Male Thread
    Range (radius): 21 - 36.5m
    Working angle: 20°-360°
    Pressure range: 2 - 5 bar (30 - 70 Psi)
    Recommended Operating pressure: 3 bar
    Flow rate: 710 - 3155 l/h
    Material: Bronze

    Rain Adjustable Metal Impact Sprinkler 25mm (1") - 270.1300040
    Material: Bronze
    Connection: 25mm (1") Female
    Range (radius): 17.7m
    Working angle: 20°-360°
    Operating pressure: 4.0 bar
    Flow rate: 74.2 l/min

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
