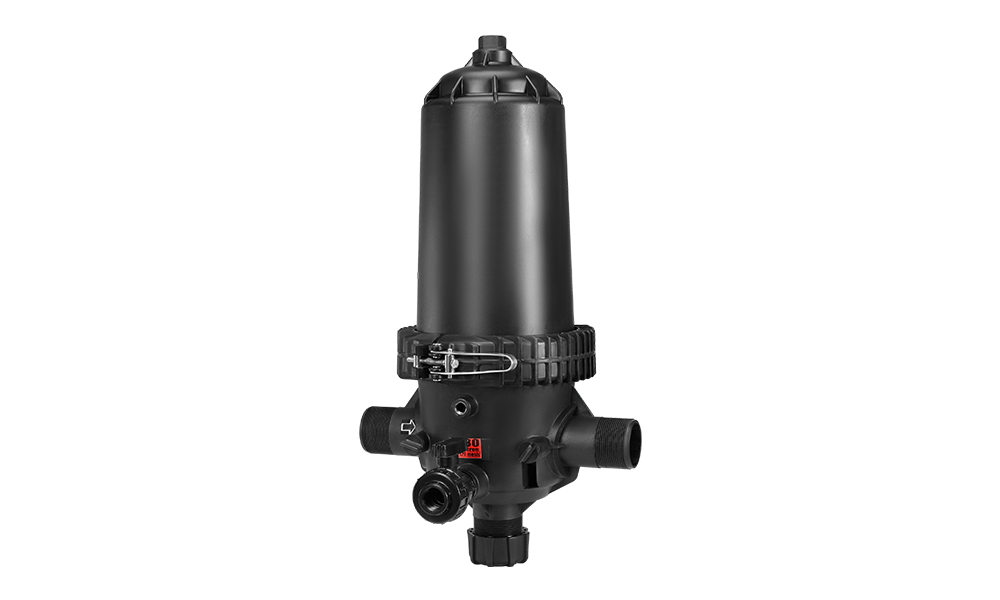

Rain 2" T Disc Filter | 120 Mesh
SKU 280.5501040

Rain 2" T Disc Filter 120 Mesh

WAS $0.00 - $0.00
WAS
$194.30
$194.30 - $194.30
$194.30
Excl. GST

We accept all major credit cards.

  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • Bank Transfer

2” T-Type Disc filter (30m³/h) in which flow passes from outside to inside of disc stake. The filters are made from special chemically bonded polymer which are weather resistant. Disc filter made with special Helix system which gives better performance and results.

Features:

  • Clamp made up of Nylon reinforced material for durability.
  • Vacuum breaker for upside down installation.
  • Drain port is located in front of the ration body.
  • Maximum operating pressure is 8 bar.
  • Flow passes through outside to inside of disc stake.
    Rain 2" T Disc Filter | 120 Mesh Specs
    Inlet/Outlet Connection: 2” BSP Male Thread
    Max. Working Pressure (PPGF Filter): 8 Bar (110 Psi)
    Range of Flow Rate: 22-35 m³/h
    Nominal Flow Rate: 30 m³/h
    Filtration Surface Area: 1193 cm²
    Material of Construction: Glass Filled Polypropylene / Polyamide
    Material of Disc: Polypropylene disc
    Cartridge Diameter (With O-ring): 122 mm
    Cartridge Length: 388 mm

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.

Free Shipping

When you spend $250+*

Give Us A Call

09 415 0300

35 YEARS

NZ Owned & Operated

NATIONWIDE SERVICING

Experienced Irrigation Technicians

Rain 2" T Disc Filter | 120 Mesh Performance Chart
