Piccolo XR RTU 450-470
SKU 88.XR2.High

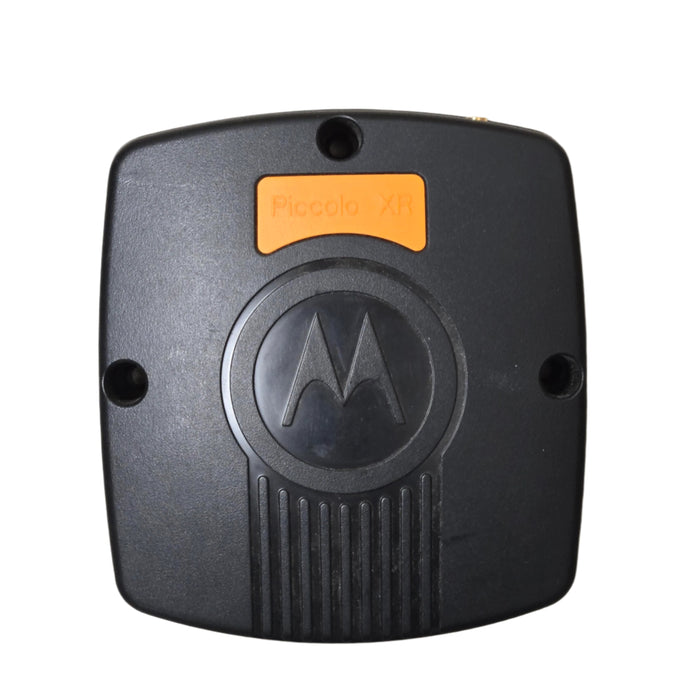

Piccolo XR RTU 450-470

The Piccolo XR is a small, wireless two-way radio remote terminal unit (RTU) that is an integral part of the IRRInet platform. The Piccolo XR operates up to 8 latched outputs and may receive up to 12 digital inputs (model dependent). The Piccolo Interface Unit (PIU) connects to an IRRInet field unit and communicates with other Piccolo XR units via its internal two-way, low-power radio.

Piccolo XR and PIU are equipped with internal 10/100 mW configurable radios. For extended radio coverage, the Piccolo XR can operate in networking mode using numerous hops. Thousands of XRs are installed around the world in use in applications that range from agriculture and municipal irrigation control systems to water supply systems.

Both the Piccolo XR and the PIU are equipped with configurable internal 10/100 mW radios to extend radio coverage. They can function as part of the communication network, using store and forward protocols. With its self-contained, secure enclosure, Piccolo XR installs and is ready to work with IRRInet in just minutes. The Piccolo XR series has been designed to work in nearly all environments.

Enquire Below

    Piccolo XR & XR Plus Specifications
    XR PIU Frequency Range: 450–470 MHz
    PIU I/O Capacity: • Up to 248 inputs and 248 outputs • Internal UHF two-way radio • RS232 communication to IRRInet field unit • RS485 communication to IRRInet field unit
    Piccolo XR & PIU Power Supply: • External 6VDC for Piccolo XR • 6 to 12VDC for PIU
    Operating Temperature: -30 °C – + 60 °C (-22 °F – + 140 °F)

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
