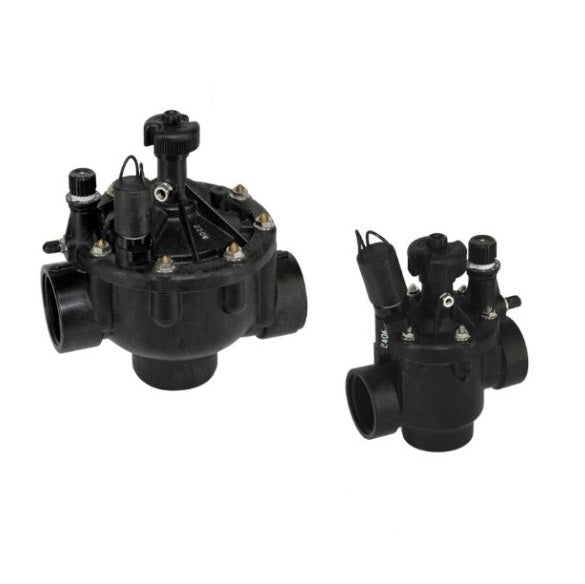

Toro P220 Solenoid Valve with Flow Control Feature ( AC Coil )

SKU P220-23-54
Original price $0.00 - Original price $0.00
Original price
$280.55 - $1,147.54
Current price $280.55
Excl. GST
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Toro P220 Solenoid Valve with AC Coil & Flow Control Feature

For proven reliability in the field, the Toro® P220 Series valves deliver. Constructed of heavy-duty, glass-filled nylon material, these valves are ready to consistently withstand pressures up to 1500 kPa.

25, 40, 50 and 80 mm Electric Models With superior regulation and a 1515 kPa rating, the P220 Series gives you ‘brass strength’ at a value price.

Toro P220 with DC Coil is also available (Click here to view)

  • Tough Glass-Filled Nylon and Stainless Steel Construction
  • Optional EasyReg Pressure Regulation either Factory-Installed or Field-Installed even under Pressure
  • Low Power Requirement for Longer Wire Runs
  • Standard, built-in Schrader-type Valve for Downstream Pressure Verification
  • Flow rate 18.9 - 1135 LPM, Operating Pressure 0.69 - 15.17 Bar
  • 5 Years Warranty

 View Larger
Durable Glass-Filled Nylon
Ensures the P-220 can operate at pressures up to 220 psi (15 Bar).

View Larger
Precise Pressure Control Option
Compact EZReg® dial-design technology (factory or field installed - no need to remove solenoid).

View Larger
Internal And External Manual Bleed
Keeps valve box dry and easy to use.

View Larger
Schrader Valve Pre-Installed
Simple verification of downstream pressure.

View Larger
Nearly Three Times the Lightning Protection of Competitive Product
With a lightning rating exceeding 20,000 volts.

View Larger
Filter Screen On 2” (50mm) & 3” Models (75 mm)
Allows for upstream filtration of water to ensure no clogging occurs inside the valve.

Operating pressure – Electric — 70–1515 kPa
– Pressure regulating models
Outlet EZR–30 30–200 kPa (± 20 kPa)
Outlet EZR-100 30–700 kPa (± 20 kPa)
– Inlet 100–1515 kPa – Minimum pressure differential
(between inlet and outlet) 70 kPa for EZReg operation
Body styles Globe/angle valve, female-threads BSP
Solenoid 50 Hz 24 V.a.c.
– Inrush 0.3 amps, 7.2 VA

 No Videos Available

Compatible with

Replacement Diaphragm
We also offer replacement diaphragms in case yours wears out. (Click here to view)

MDPE Fittings
The P220 series valves are compatible with any male threaded MDPE fittings of the appropriate size (Click here to view)

Threaded fittings
The P220 series valves are compatible with any male threaded fittings of the appropriate size. (Click here to view)

Toro EZReg Series Pressure Regulator Kit
The P220 series valves are compatible with The OMNIREG series Pressure regulators. (Click here to view)

Multi wire controllers (AC Solenoid ONLY)
The P220 series valves are compatible with all of our multi wire controls as long as they are equipped with an AC Solenoid. (Click here to view)
