SKU CD51-68-70

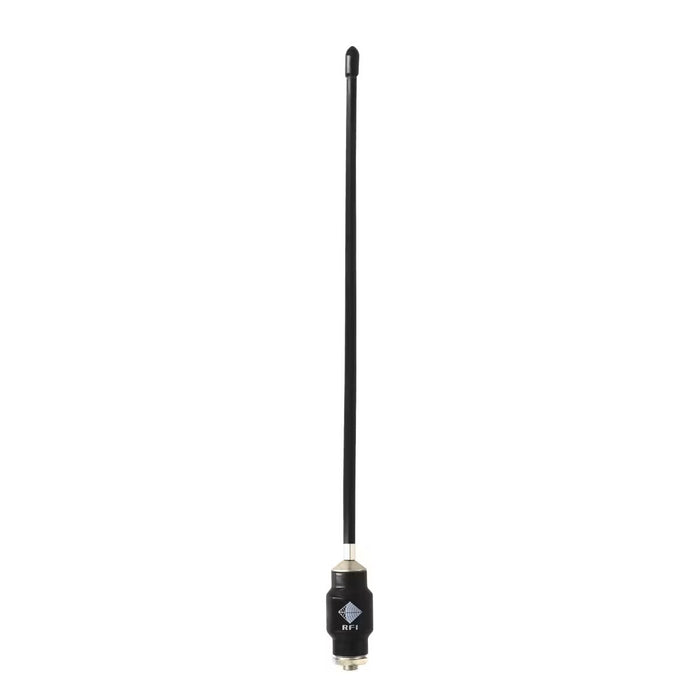

IRRInet RFI Mopole 450-520MHz

Name: IRRInet RFI Mopole 450-520MHz
Brand: IRRInet
SKU: CD51-68-70
Price: 88.22 NZD
Availability: InStock

WAS $0.00 - $0.00

WAS

$88.22

$88.22 - $88.22

$88.22

Excl. GST

We accept all major credit cards.

Bank Transfer

The CD50/CD51 Series UHF ground independent Mopole antennas are versatile and popular antennas, providing excellent performance in virtually any mounting position.

Features:
- Ground plane independence allows alternative mounting - - High performance and largely omni-directional pattern when not centre roof mounted
- Patented design allows termination or re-termination in seconds
- Stainless steel whip or flexible nylon whips cater to individual needs
- Durable - Base coil is virtually indestructible
- Unique transformer design
- Australian Patents #596830 and #656793

Downloads

Installation CD51-68-70 Series Mopole Antenna Download View File
IC CD51 Series Specification Sheet Download View File

Specifications

RFI UHF 4dB Mopole Antenna (450-520 MHz); Stud Mount No Cable Specs
Brand:	RFI
Mounting:	Threaded Stud
Frequency MHz:	450-520
Tuned Bandwidth:	13 MHz @ <1.5.1 VSWR
VSWR:	13 MHz @ <1.5.1
Nominal Gain [dBi]:	4dB over a 1/4 wave
Power [W]:	50
Tuning:	Field tune to minimum VSWR using supplied tuning chart
Cable And Connector:	Not included
Whip Length mm:	360
Whip Material:	Copper braid element in flexible nylon tubing
Antenna Type:	Ground Independent, Stud Mounted, Vehicle
Antenna Application:	Vehicle Antenna
Antenna Configuration:	SISO

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
