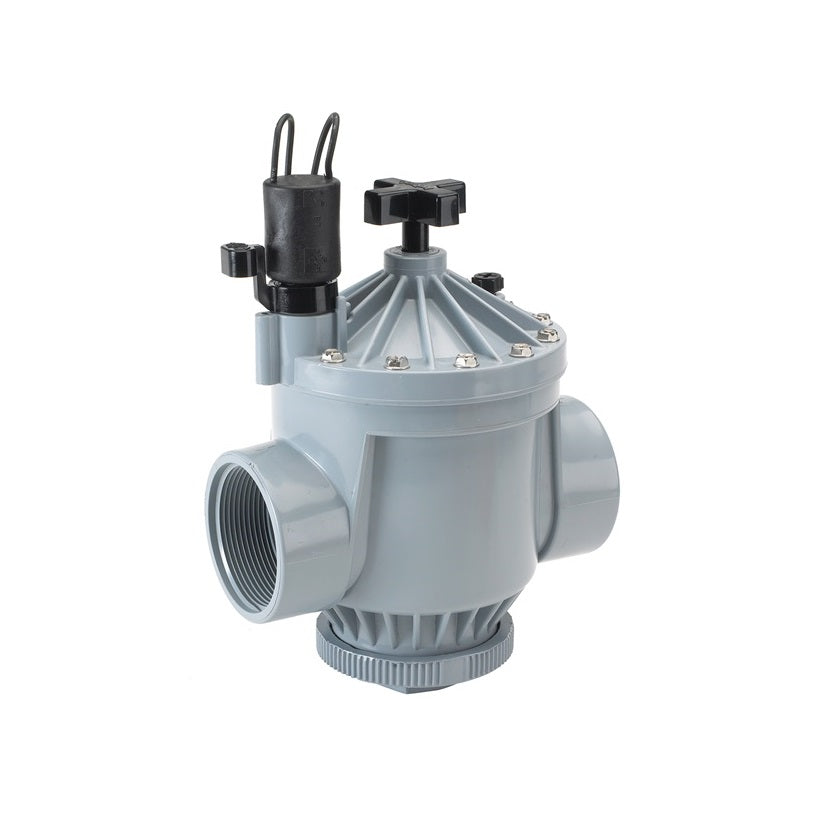

Irritrol 200B Series Solenoid Valve with AC Coil and Flow Control Feature.
These durable, heavy-duty commercial valves offer a selection of key features designed to provide reliable, cost-effective performance under the most challenging conditions.
- Heavy-duty corrosion and UV-resistant PVC construction with stainless steel spring and hardware
- Rugged, bouble-beaded santoprenen diaphragm
- Captive solenoid plunger
- Flow control allows flow adjustment and manual shut-off
- Accepts omnireg pressure regulator
- Flow rate 18.9-454.2l/m
- Operating pressure 1.4-10.3bar
- 5 years warranty.
Specifications
| Flow Range |
|
| 40 mm |
80 to 300l/m |
| 50 mm |
225 to 450l/m Consult your irrigation designer before using any solenoid valve where flow velocities exceed 2 m/sec |
| Pressure Range |
140–1034kPa Maximum pressure of 800kPa if using latching coil (DCL) |
| Solenoid |
24 VAC |
| Inrush volt-amp |
24VAC – 9.6VAC |
| Inrush current |
0.4amp |
| Holding volt-amp |
24VAC–4. VAC |
