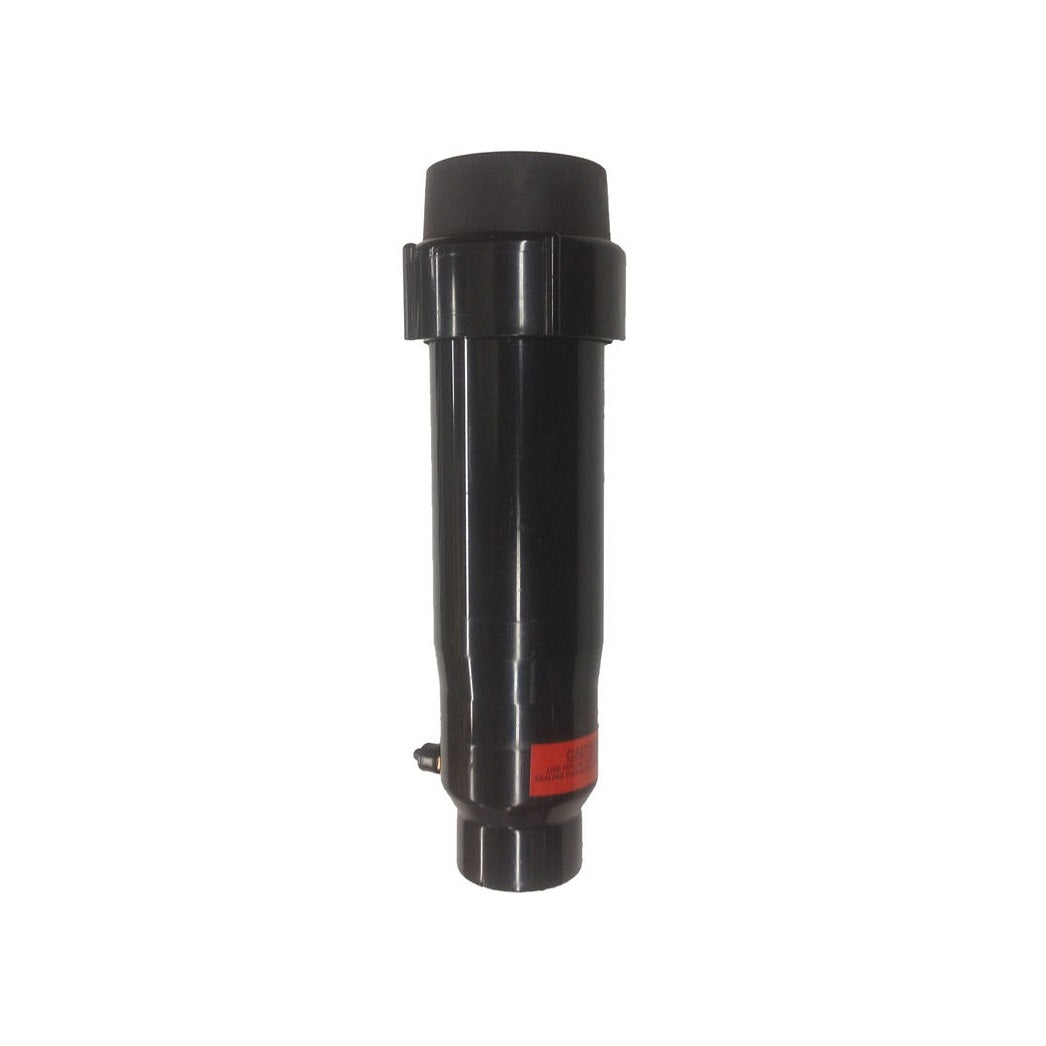

Toro 640 Rotor Sprinkler (Body Only)

SKU 640-51
Original price $0.00 - Original price $0.00
Original price
$169.70
$103.96 - $169.70
Current price $169.70
Excl. GST
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Toro 640 Sports Field Rotor Sprinkler.

Considered the most durable, heavy– duty commercial sprinkler available, the 640 Series is the traditional, proven veteran for athletic fields and other large commercial applications. It is equipped with a standard rubber cover, five nozzles*, 12 arcs* and a check valve. A variety of models are available including Valve-In-Head and effluent.

*Ordered Individually

Note: The 640 Range of sprinklers does not come assembled and you will also require the following items. The Body, Drive Assembly and a Nozzle. See bellow the links to the Drive Assembly and Nozzles.

640 Series Drive Assembly (Click here to view

640 Series Nozzle & Stator (Click here to view


Features
  • Body only
  • Normally open
  • Without drive assembly
  • Nozzle & Stator.
  • Standard rubber cover minimizes impact damage
  • Small exposed surface diameter
  • Stainless-steel encased nozzle and drive assembly
  • Durable engineering plastic, brass and stainless-steel construction
  • Capable of faster rotation – fast speed performance data available
  • Selection of 5 nozzles and 12 arcs
  • Valve-in-head (normally open hydraulic models)
  • Adjustment screw allows up to 25% radius reduction
  • Standard check valve prevents low-head drainage, keeping laterals charged with water
  • Up to 13mm below-grade installation
  • Vandal-resistant cap with locking set screw
  • Stainless-steel retraction spring
  • Gear-drive design for longer life
  • Basket filter screen to prevent clogging
  • 5 year warranty



Specifications
Radius 14.6-20.2m
Flow rate 23.6-92.8 l/m
Recommended operating pressure 300-600 kPa
Maximum operating pressure 700 kPa
Pop-up to nozzle 60mm 25mm (1”) FBSP inlet,
Trajectory 27°
Exposed surface diameter when buried 12mm below grade 45mm
Body diameter 65mm
Cap diameter 83mm
Valve-in-head 267mm
Check-O-Matic 230mm
Valve-in-head 267mm
Check-O-Matic maintains 4.5m elevation change
Documentations
Videos



Compatible with

The 640 Series sprinkler

The 640 Range of sprinklers does not come assembled and you will also require the following items. The Body, Drive Assembly and a Nozzle. See below the links to the Drive Assembly and Nozzles.

640 Series Drive Assembly (Click here to view

640 Series Nozzle & Stator (Click here to view

Swing Joints
Swing joints are pipe fittings that are used to attach sprinklers or rotors to an irrigation system. The T7 is only combatable with 25mm threaded Swing Joints.
