Irritrol Dual Check Backflow Preventer
The Dual Check Valve provides protection to the potable water supply from contamination in low hazard applications like meter connections on domestic properties.
Features
- Protects against back pressure and back siphonage
- Suitable for low hazard applications
- Compact and lightweight
- Corrosion resistant
- Independently operating check valves
- Operating temperature range of 1°C to 60°C
- Suitable for vertical and horizontal installations
- Approved to AS 2845-1
Specifications
Materials | DR Brass (body + covers); stainless steel (springs) |
Size (Model No) |
20mm (101DC20) |

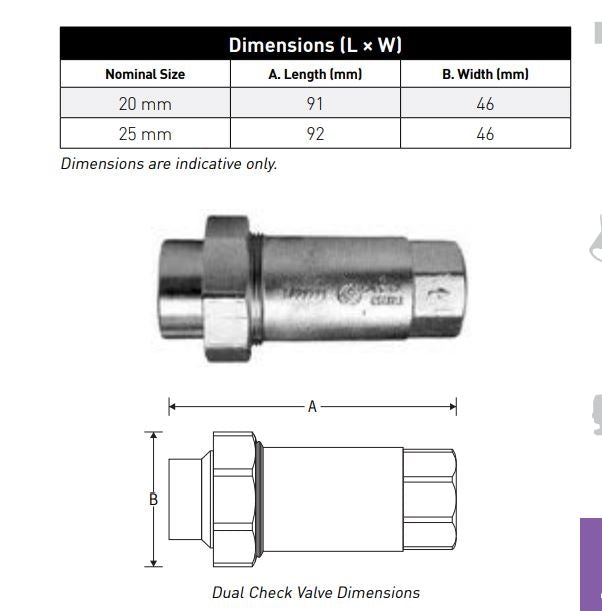

Dimensions | 91 x 46mm |
Size (Model No) | 25 mm (101DC25) |
Dimensions | 92 x 46mm |
Inlet/Outlet BSP | Female |
Working Pressure range | 220 - 1200kPa |
Materials | Plastic |
Size (Model No) |
20mm (101DC20P) |
Dimensions | 91 x 46mm |
Size (Model No) | 25mm (101DC25P) |
Dimensions | 92 x 46mm |
Inlet/Outlet BSP | Female |
Working Pressure Range | 220 - 1050kPa |
Operating Temperature Range | 1?C - 60?C |
?Documentation?
?Videos??
No Video Available
?Compatible with?
Threaded Fittings
Irritrol Dual Check Backflow Preventers are compatible with any Threaded fitting of the appropriate size (Click here to view)
