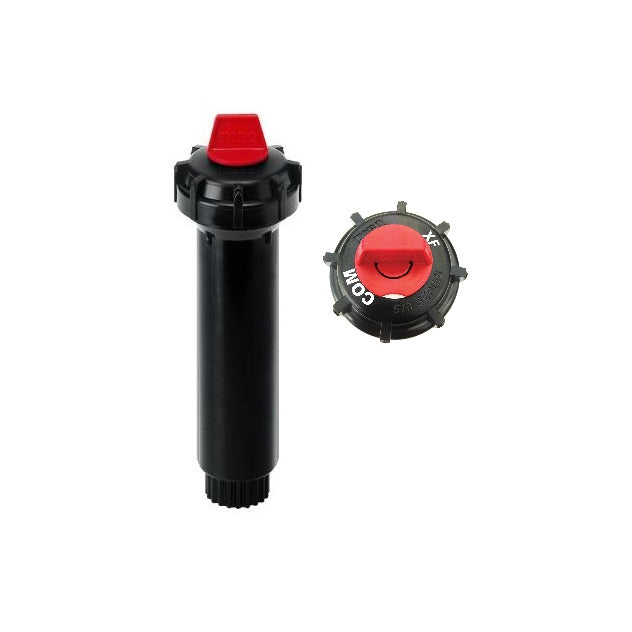

Toro 570Z XF Pop-up Sprayer with Flow Shut-Off (Body Only)

Product Description

Overview

  • Zero flush wiper seal eliminates flushing on pop-up
  • Ratcheting riser for quick and precise arc adjustment
  • Upgraded strong retraction spring
  • Hundreds of combinations offer unparalleled flexibility
  • Pop-up height 3", 4", 6" or shrub version and 12" on special order
  • Inlet 1/2"female threaded
Features
  • Patented X-Flow® high-flow shut-off device built into the riser
  • Restricts water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion, and safety issues and saving precious water
  • Allows for “dry” nozzle and filter replacement or maintenance, while the system is running
$18.20 Plus GST
Maximum quantity available reached.
Sku: 102-2828
 Radius: 2'-26' (.6 - 7.9 m)
Recommended Operating Pressure: 20-75 PSI (1.4 - 5.2 Bar)
Pop-Up Height: 4", 6", 12" (100 mm, 150 mm, 300 mm)
Cap Diameter: 2" (50 mm)
Flow: 0.05-4.50 GPM (0.2 - 17 LPM)
Inlet: 1/2" (12 mm) female threaded
Body Diameter: 1 3/8" (35 mm) except 12P - 1 5/8" (41 mm) & 12P SI - 1 3/4" (45 mm)
Body Style: Bottom and Side inlet option



115 different nozzles provide tremendous versatility.



Check valve maintains up to 3m in elevation change (The Check-O-Matic feature requires the use of the bottom inlet).

  • Click here to shop Check Valves for the Toro 570 Series
