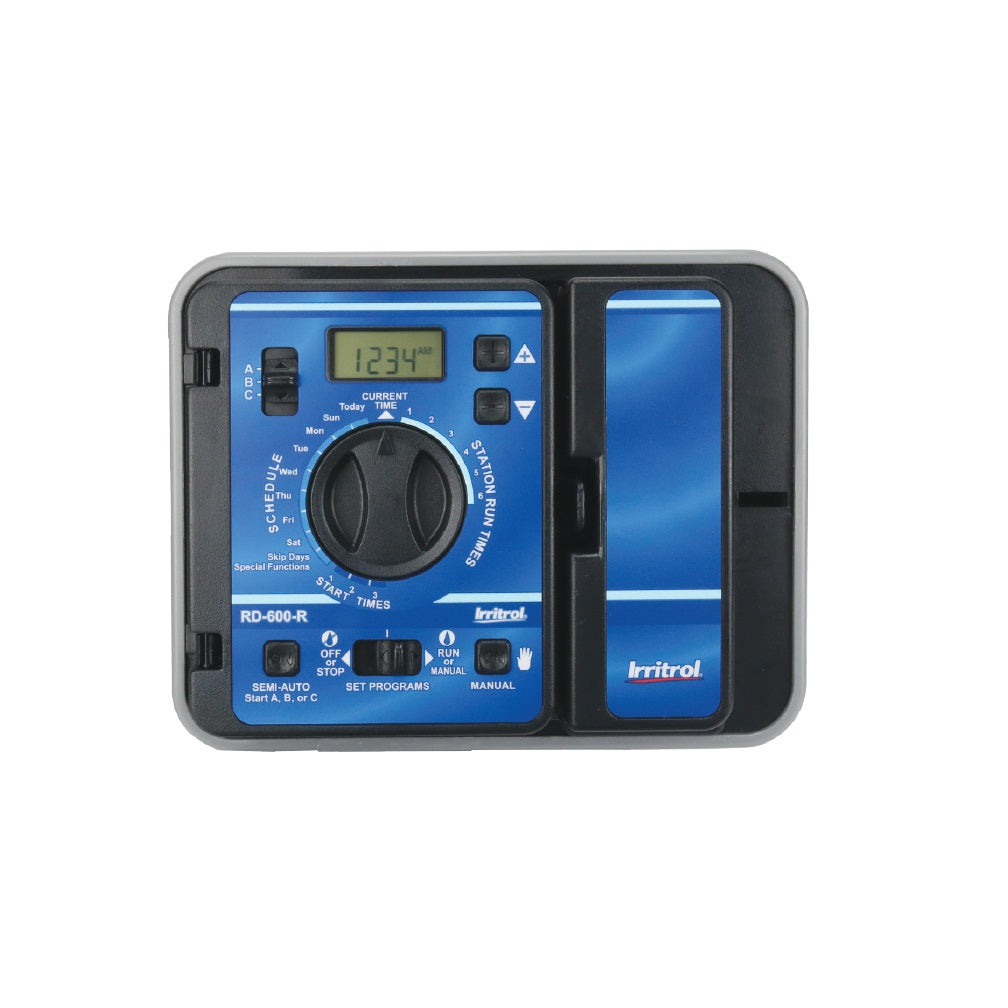

Irritrol Rain Dial R Series Controller (Outdoor Version)

$639.32 excl. GST $639.32 – $660.89 excl. GST /

Select an option to add this to your cart.

Number of Stations:

Irritrol Rain Dial R Series Controller (Outdoor Version) with 6, 9, 12 stations and a built-in transformer.

The popular, long-standing Rain Dial^®- R controller offers exceptional scheduling flexibility and a host of new features for speed of programming and maintenance and more pump control for bore and booster pump applications.

6, 9 or 12 station models in weather-resistant lockable outdoor enclosure
3 programs with up to 3 start times per program
Maximum runtime 6 hrs in 6-min increments (1-min increments from 1-60mins)
Multiple watering day options
Seasonal water adjust from 0% - 200% in 10% increments for all stations and programs simultaneously
5 year warranty

Specifications

Battery Battery backup for “armchair” programming and keeping current time and date: 9-volt alkaline (not included)
Battery Backup Battery backup for “armchair” programming and keeping current time and date: 9-volt alkaline (not included)
CSA Listed
Maximum Output per Station 24V ac, .5 amps
Maximum Output to Valves 24V ac, 1.0 amps (including master valve/pump start circuit)
Start Times (Number of Start Times) 3 per program per day for 9 starts total
Station Run Times 1-59 minutes in 1-minute increments or 1-5.9 hours in .1-hour (6 minute) increments
Transformer Input 120V ac, 60Hz (220/240V ac, 50Hz available internationally)
Transformer Output 24V ac, 1.25 amps
UL Listed
Watering Schedule (Irrigation Schedule) Any day of the week Skip days from 1 to 31 days between irrigation days Odd or even date watering

?Documentation?

Irritrol Rain Dial R series Controller Data Sheet (Metric)

Irritrol Rain Dial R series Controller Data Sheet (Imperial)

Irritrol Rain Dial R series Controller User manual

Irritrol Rain Dial R series Controller Quick Reference Card

Videos

Compatible with

AC Solenoid Valves
The Toro DDC Series Controller is compatible with all AC Solenoid Vales
(Click here to view)

Irrigation cable
The Toro DDC Series Controller is compatible with all multicore cable
(Click here to view)

Rain Sensors
The Toro DDC Series Controller is compatible with both Irritrol and Toro Rain sensors
Toro (Click here to view)
Irritrol (Click here to view)

Irritrol Replacement Module
There are also replacement modules for our range of Irritrol Rain Dial R Series Controllers. (Click here to view)
