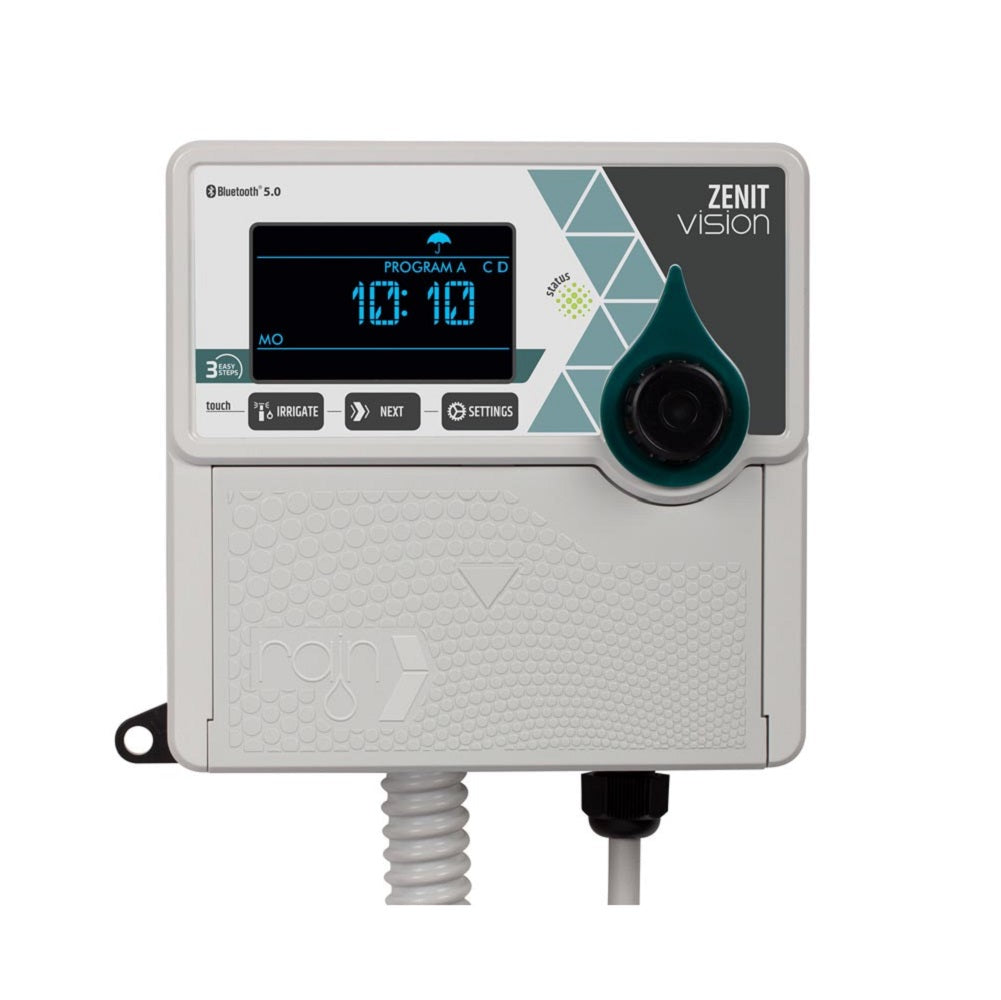

Rain Zenit Vision Wall Mounted AC Irrigation Controller

Save 20%
$298.75 excl. GST $373.44 – $617.34 $298.75 – $493.87 excl. GST /

Select an option to add this to your cart.

The Zenit Vision control unit is ideal for managing medium to large installations of up to 16 zones.  Completing the control unit are two dedicated outputs for managing the master valve and pump control via relay.

In addition, connecting it to the Nuvola WiFi Vision device will give access to all the Smart features of the Vision system for remote monitoring of the system via the Internet. You can also use the Vision App to convert the zone 1 output to a fertilizer output for fertigation management.



Rain Zenit Vision Wall Mounted AC Irrigation Controller

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

Internet Access - Requires Nuvola Vision

Internet Access - Requires Nuvola Vision

The controller is Wi-Fi-ready via the Nuvola WiFi Vision hub. The controller will connect via Bluetooth to the Nuvola device, and the irrigation system will be accessible and manageable via the Internet.
Learn More
PRO Mode

PRO Mode

The PRO programming mode is designed for more technical applications, such as seeding and rolling lawns. The high number of starts (6 starts per program) allows the installer and maintainer of irrigation systems to easily manage large systems.
One by One Mode

One by One Mode

The ONE-BY-ONE programming mode allows for totally flexible irrigation planning, designed to independently manage each individual solenoid valve. This programming mode allows you to enter the starting time and irrigation frequency for each individual solenoid valve.
Fertigation

Fertigation

From the Rain Vision application, it is possible to change the output of the first zone to fertigation output.
Pump Start

Pump Start

The Pump Start function allows you to program pump output activation on a zone-by-zone basis.
Sens Start

Sens Start

The Sens Start feature allows the rain sensor intervention to be programmed on a zone-by-zone basis.
Bluetooth 5.0

Bluetooth 5.0

The Bluetooth 5.0 data transmission technology built into the controllers enables the programming via the Vision App directly on your smartphone, or Webapp on your computer, when using a Nuvola Vision device.
Vision App

Vision App

The Vision app is available on Google Play and App Store for smartphones and tablets.
Download Free Demo
24 Vac Solenoid

24 Vac Solenoid

The controllers control 24 Vac normally closed solenoids. The control unit will supply the solenoid with a 24 Vac electrical signal for the entire irrigation time to open the electrovalve.

Rain Zenit Vision

Controller type: Wall-mounted
Power supply: Internal transformer 220 VAC 50-60 Hz - 24 Volts AC, 1.25 AMP
Back-up battery: Integrated
Bluetooth: Bluetooth 5.0 connection
Internet connection: Via Nuvola WiFi Vision
Sensors: Rain sensor input
Outlet Type: Pump/master valve control outlet
Screen: Backlit screen
Lid: Closing lid
Maximum number of zones: 16
Models available: 6, 8, 12 and 16 zones
Programming mode: Traditional
Number of programs: 4
Start times per program: 6
Maximum number of starts per day: 96
Minimum irrigation time per zone: 1 min
Maximum irrigation time per zone: 480 min
Irrigation frequency: By days of the week, from every 6 hours to every 14 days, For odd or even days -31, by single calendar day
Manual start: By zone, By program
OFF function: Control unit, Single zone, Single programme
SENS START function: Programmable rain sensor for single zone
PUMP START Function: Programmable pump control for single zone
Fertigation function: Settable via App
Seasonal Variance: Seasonal adjustment from 10% to 200%
Zone delay function: 0 to 240 seconds
Irrigation pause function: 1 to 300 days

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.

VISION PROGRAMMING How do I switch from standard mode to advanced mode

Choose "advanced mode" from the settings menu in the upper-left corner.

VISION PROGRAMMING What does Save and send mean?

Save: to save the settings in the Server. Send: to send these settings to the Server

VISION PROGRAMMING In the Advanced Frequency mode, I entered a frequency for every 2 days and then Thursday and Friday because I need to irrigate those two days. Will the controller save my programming?

No, the controller saves only one of the set frequency modes. Specifically, it stores the last changed frequency. In the list of frequencies, the one that has the "check mark" will be stored.

VISION APP If I delete the App with the devices I have associated, will they remain saved in the Account? So if I reinstall the App, will I still find the devices saved in my Account?

Yes, if you uninstall the App with the devices associated with this Account and then install it again, you will still see the devices associated with the Account.

VISION APP I see the umbrella icon and the active zone icon. What does that mean?

It means that the area being irrigated does not have a rain sensor active, while the others do. So the umbrella icon (rain sensor icon) appears for those areas where it is active, while it does not appear for the area which is irrigating.

RECHARGING Is there a proper direction for installing Turbina Vision?

Yes, the direction is indicated by the arrow on the bottom of the Turbine

RECHARGING How long does it take the Turbine to recharge the battery?

Depending on the flow rate and thus the type of nozzle selected, it takes a couple of hours of irrigation to recharge the controller battery.

RECHARGING Where is the female battery power-charging connector located in the Pure Vision 2.0 control unit?

Inside the battery compartment of the controller.

RECHARGING How many charge cycles can the lithium battery of Vision controllers, not connected to recharging devices, sustain?

The lithium batteries of Vision control units not connected to automatic recharging devices last about 400 days with standard programming (2 openings/closures per day). Regarding irrigation cycles, the battery level (without recharging) drops from 100% to 20% after 15,000 cycles of opening and closing solenoid valves.

RECHARGING: How long does the Luce Vision solar panel take to recharge the battery?

A couple of hours under full sunlight.

RECHARGING: Where is the battery power-charging connector in Pure Vision 2.0?

Inside the controller’s battery compartment.

RECHARGING: What are the flow rate and pressure limits for Turbina Vision?

Maximum flow rate: 50 l/min, Minimum pressure: 1 bar, Maximum pressure: 6 bars.

RECHARGING: How long do Vision controller batteries last without recharging?

Approximately 400 days with standard programming (2 openings/closures per day).

RECHARGING: Can Luce solar panel and Vision Turbine charge the same device simultaneously?

No, two charging systems cannot connect to the same device at the same time.

RECHARGING: Are all Vision devices rechargeable?

No, some devices like Nuvola Mini WiFi Vision are not rechargeable. Others, such as Amico Vision, Zenit Vision, and Acqua Vision, are rechargeable.

INTERNET CONNECTION: What kind of Wi-Fi does Vision System use?

It uses standard Wi-Fi (WPA2) with SSID and password.

INTERNET CONNECTION: What distance should I maintain between Nuvola and the Wi-Fi router?

The range is typically 25-30 meters, depending on obstacles like walls or trees.

INTERNET CONNECTION: How many accounts can pair with one Nuvola?

Only one account can link to a Nuvola, but one account can manage multiple Nuvola devices.

INTERNET CONNECTION: Pairing with Nuvola takes too long. Why?

Wireless interference or environmental factors may delay pairing. Normally, it takes around 10 seconds under optimal conditions.

INTERNET CONNECTION: Can Vision controllers connect to the Internet for remote management?

Yes, they can connect via Nuvola devices.

BLUETOOTH: I forgot the Bluetooth password. How can I reset it?

Scan the QR code on the device to reset it to the default password (000000).

BLUETOOTH: I entered the Bluetooth password but can't pair the device. What should I do?

Ensure no other account is paired with the device, clear Bluetooth data, restart your smartphone, and try again.

BLUETOOTH: Is it compatible with older smartphones?

Compatibility depends on Bluetooth version. Devices with Bluetooth 5.0 are recommended.

BLUETOOTH: What is the maximum distance for pairing Vision devices via Bluetooth?

The average distance is 15 meters under standard conditions but can vary due to obstacles and environmental factors.

BLUETOOTH: How many smartphones can simultaneously connect to a Vision device via Bluetooth?

Only one device can connect at a time as Bluetooth communication is point-to-point.

VISION APP: Will my devices remain saved if I uninstall the app?

Yes, associated devices remain saved in the account and will appear after reinstalling the app.

VISION APP: The Vision App is not responding. What could be the problem?

It may be due to background apps, processor overload, or device conditions. Restart your smartphone to resolve the issue.

VISION APP: How can I re-pair a controller accidentally deleted from Nuvola?

Go to the Nuvola screen, search for devices, and re-pair with the previously associated control unit.

VISION APP: I can't find devices to pair. What should I do?

Try updating the app, clearing Bluetooth settings, removing and reinserting the battery, or restarting your smartphone.

VISION APP: What does the umbrella icon and the active zone icon mean?

The umbrella icon indicates an active rain sensor. If it doesn’t appear for an irrigated area, the rain sensor is not active there.

VISION APP: What is the difference between PAUSE and OFF?

OFF: The control unit is turned off, indicating the end of the irrigation season.

PAUSE: Temporarily suspends operation for a few days, resuming programming after the pause period.

VISION APP: What happens if I lose the data connection when I click save and send? Will I have to repeat the programming?

Yes, a data connection is necessary for saving. If the connection fails, the application and system will not be updated.
