Rain S100 1" Pop Up Sprinkler

Save 20%
$73.77 excl. GST $92.22 – $166.66 $73.77 $133.32 excl. GST /

Select an option to add this to your cart.

The S100 sprinkler is designed for all sporting applications where precision and even water distribution are critical. The sprinkler is complemented by a kit of 5 interchangeable triple-jet nozzles. The main jet allows long-distance irrigation, and the two secondary jets allow medium- and short-distance irrigation. It can cover distances from 13 to 23 meters and is available with ABS or STAINLESS STEEL riser and HIGH SPEED (fast rotation) version for dust reduction in riding arenas.

Rain S100 1" Pop Up Sprinkler

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

360° CONTINUOUS

360° CONTINUOUS

The sprinkler set at 360° does not have a return point, but continues to turn in the same direction.
Arc Set Degree

Arc Set Degree

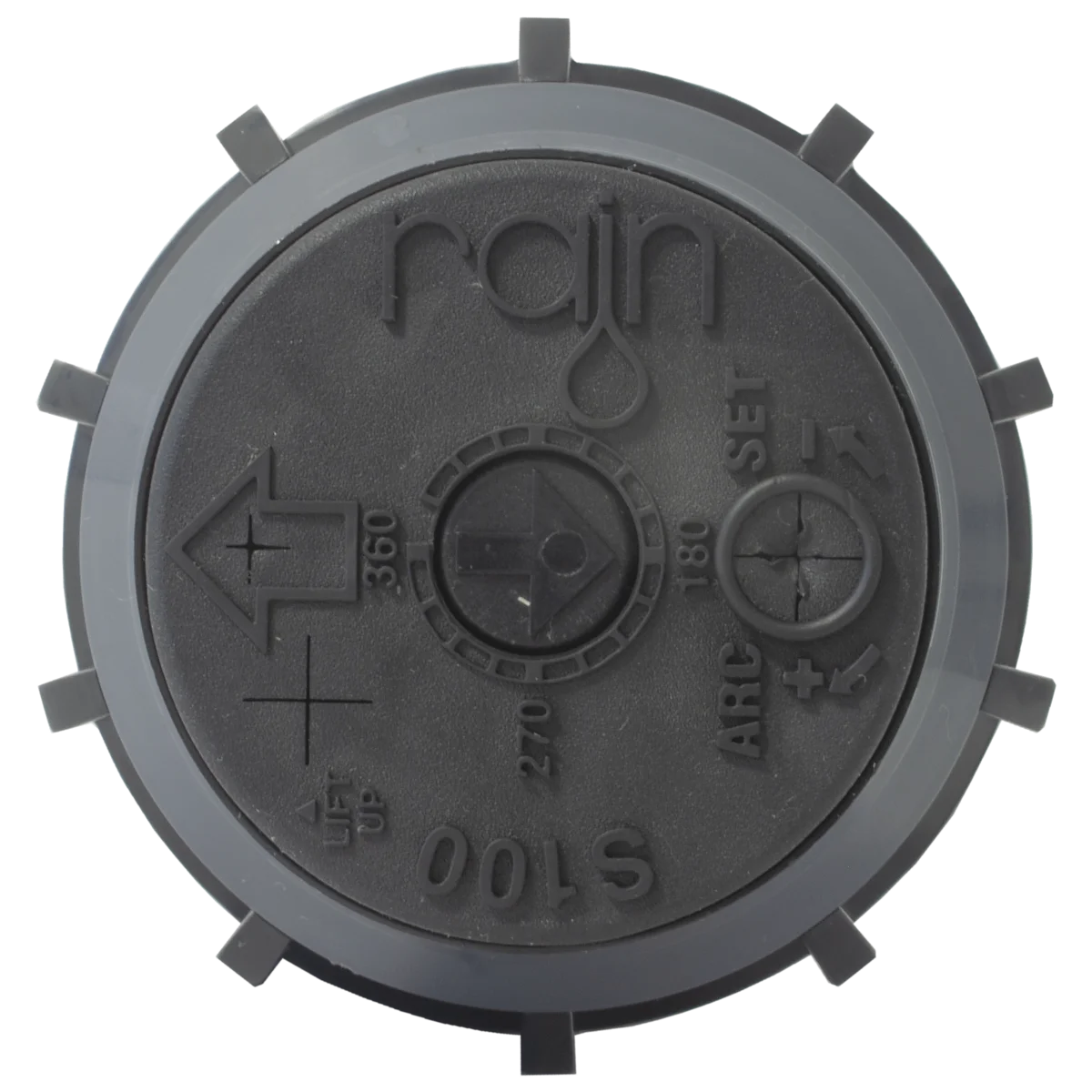

Rain's patented sprinkler angle adjustment system allows quick and intuitive adjustment of all angles by indicating the selected angle on the nozzle turret.
Triple Nozzle Configuration

Triple Nozzle Configuration

Triple Nozzle Configuration – Ensures even distribution of water
Arc Memory Clutch

Arc Memory Clutch

Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past stop
Time Proven Patented Reversing Mechanism

Time Proven Patented Reversing Mechanism

Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 20 year history
Heavy Duty Rubber Cover and Mud Guard

Heavy Duty Rubber Cover and Mud Guard

Heavy Duty Rubber Cover and Mud Guard – Protects against physical injury and reduces liability, allows sprinkler to be installed below grade
Factory Installed Check Valve

Factory Installed Check Valve

Factory Installed Check Valve – Prevents low head drainage

Rain S100 1" Pop Up Sprinkler Specs

Sprinkler type: Rotor
Inlet: 1" F
Minimum range (radius): 13.1 m
Maximum range (radius): 22.9 m
Working angle: 40° to 360°
Precipitation Rate: 1.5 to 12.0 cm per hour
Minimum operating flow rate: 19.3 l/min
Maximum operating flow rate: 123 l/min
Minimum working pressure: 2.8 bar
Maximum working pressure: 6.5 bar
Angle of trajectory: 26°
Raiser Height: 12.7 cm
Body Height: 24.13 cm
Starting position: Right
Rotation: 360° continuous
Drain valve: Integrated
Adjustment method: Visual working angle
Number of nozzles available: 6 (25° angle)

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
