SKU: 200.4083410

Rain I-Dial Outdoor Wall Mounted AC Irrigation Controller

Save 20%
$205.17 excl. GST $256.47 – $565.03 $205.17 – $452.02 excl. GST /

Select an option to add this to your cart.

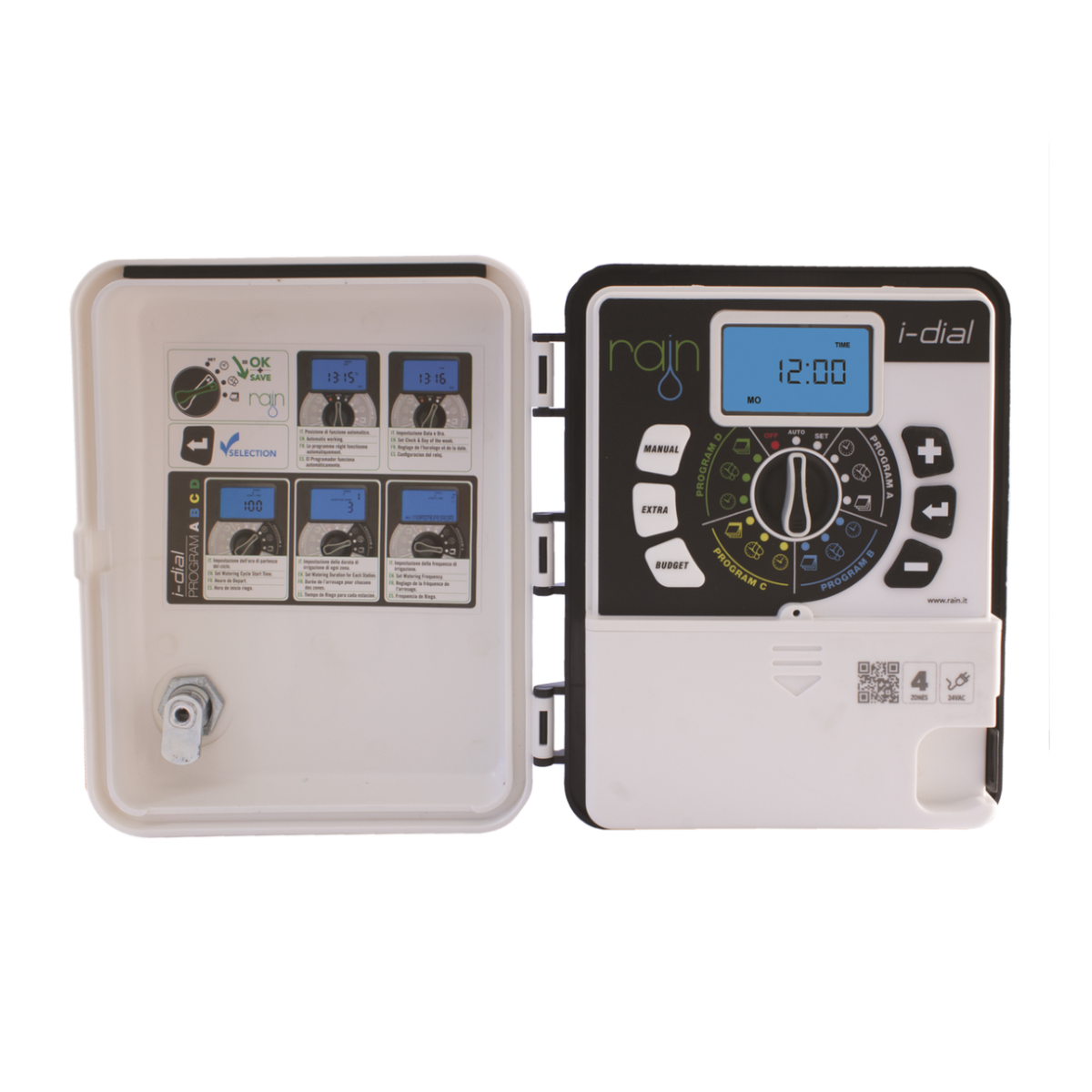

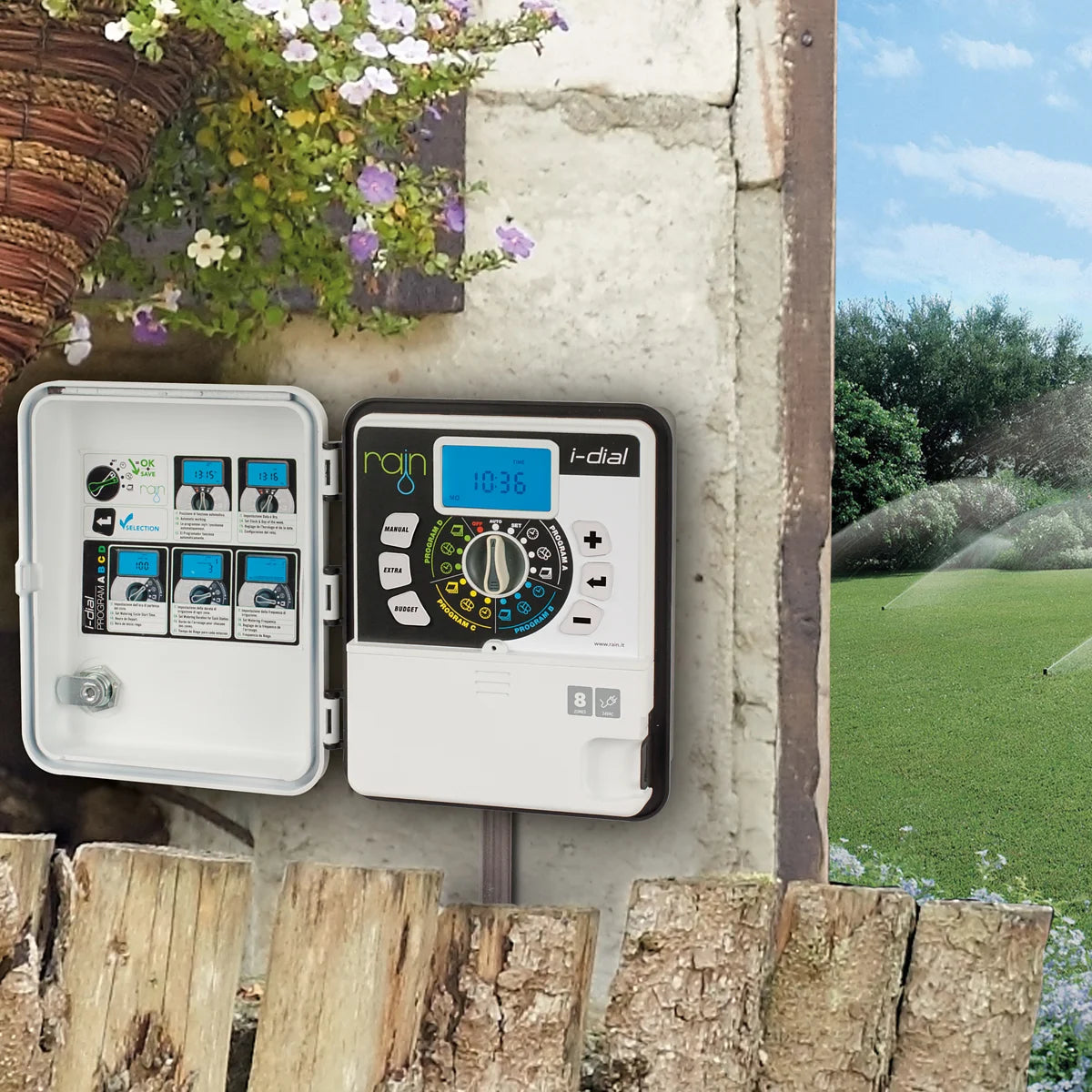

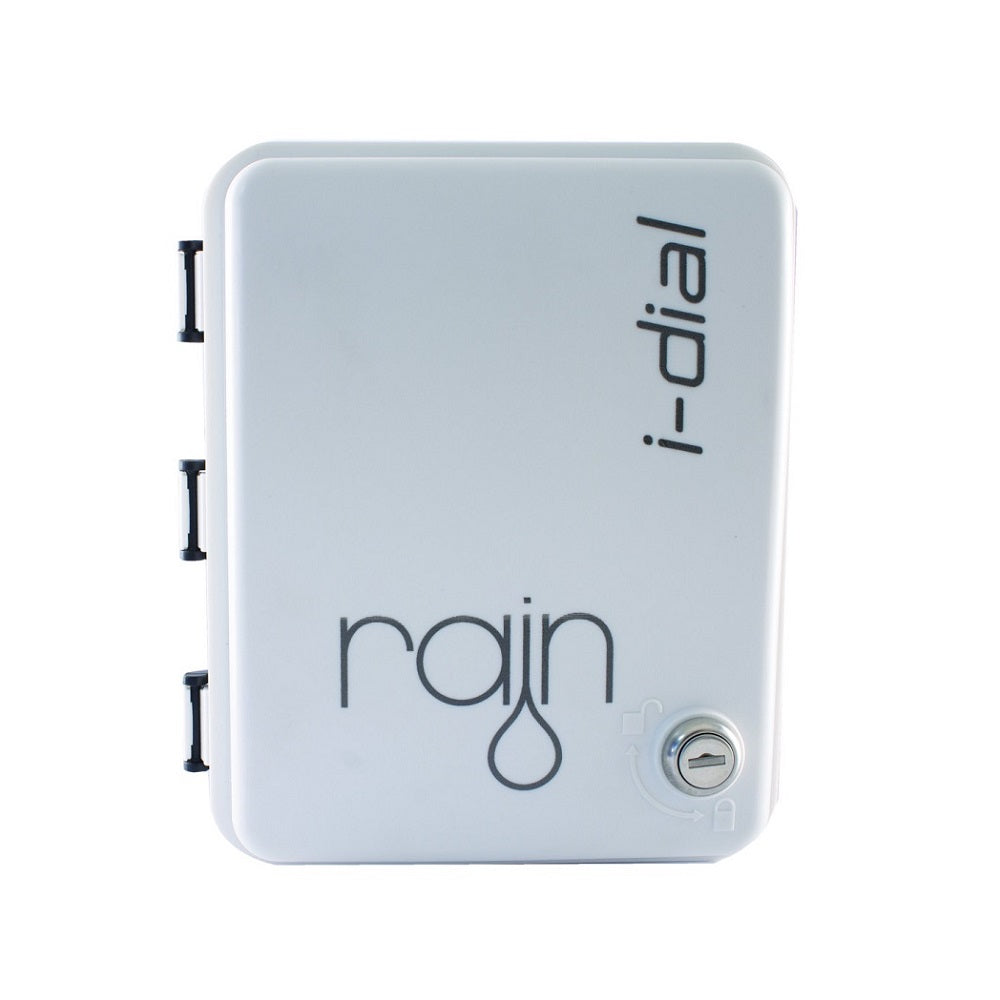

I-Dial Outdoor is a full-function control unit designed for flexible system management. Its versatility makes it ideal for residential as well as sports and municipal applications. It can control up to 12 solenoid valves with 4 programs and 1 start each. The easy 3 Easy Steps programming methodology allows you to change the programming in just 60 seconds. In addition, extra functions allow for management of the rain sensor and pump.

Rain I-Dial Outdoor Wall Mounted AC Irrigation Controller

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

Pump Start

Pump Start

The Pump Start function allows you to program pump output activation on a zone-by-zone basis.
Sens Start

Sens Start

The Sens Start feature allows the rain sensor intervention to be programmed on a zone-by-zone basis.
24 Vac Solenoid

24 Vac Solenoid

The controllers control 24 Vac normally closed solenoids. The control unit will supply the solenoid with a 24 Vac electrical signal for the entire irrigation time to open the electrovalve.
3 Easy Steps

3 Easy Steps

The special three-step programming feature allows for easy and intuitive programming in less than 60 seconds. The programming logic is based on answering three simple questions: what time of day to water, for how long, and how often.
One Look Display

One Look Display

The 3" backlit display shows you the full irrigation schedule at a glance. It is no longer necessary to navigate through various programming menus to see the irrigation schedule.

I-DIAL OUTDOOR

Controller type: Wall-mounted
Power supply: Internal transformer 220 VAC 50-60 Hz - 24 Volts AC, 1.0 AMP
Back-up battery: 2 alkaline batteries 1.5 volts (AA) not included
Bluetooth: Bluetooth 5.0 connection
Maximum number of zones: 12
Models available: 4, 6, 8 and 12 zones
Programming mode: Traditional
Number of programs: 4
Start times per program: 1
Maximum number of starts per day: 4
Minimum irrigation time per zone: 1 min
Maximum irrigation time per zone: 240 min
Irrigation frequency: By days of the week
Manual start: By zone
OFF function: Control unit
SENS START function: Programmable rain sensor for single zone
PUMP START Function: Programmable pump control for single zone
Seasonality: Seasonal adjustment from 10% to 200%

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.

Difference between Programs and Zones.

Controllers programs identify an area or group of solenoid valves. Zones identify a specific solenoid valve.

How do I set the start time of the zones?

Irrigation controller programming is based on irrigation cycles distributed over irrigation programs, which means that it is not necessary to set the start time for all zones. It is sufficient to set the start time of the irrigation cycle (program start time) and the irrigation times of the zones. The controller will then open and close the solenoid valves in sequence.

I have programmed the I-Dial or C-Dial controller but it never irrigates.

The days of the week were probably not enabled during programming. Check that the days of the week in the frequency menu are enabled (frame around the day). If they are not active simply press the "+" key to enable the flashing day and move between days of the week with the "enter" key.

The screen shows the umbrella symbol but it did not rain

Check that the two-wire rain sensor is correctly installed and is a normally closed rain sensor (Acqua Click model). If the rain sensor is not present, check that the metal bridge in the terminal compartment corresponding to the word "SENS" is present. In the case of an I-DIAL OUTDOOR control unit, check that the connection to the 220V electrical network has been made correctly (this operation requires a qualified electrician) and that an external 220/24 VAC transformer has not been installed.

Can I enable the rain sensor for single zones?

It's not possible to activate the rain sensor per zone with C-Dial. It's possible to activate the rain sensor per zone from the EXTRA functions with I-Dial.

I noticed that when irrigation starts, the irrigation cycles are repeated twice in a row. How can I set only one daily cycle?

Check whether 2 start times or 2 programmes are active

The control unit is properly powered but the screen indicates NoAC.

NoAC indicates that the circuit board is not receiving 24VAC. This situation can occur when the fuse is blown or the power supply is blown.
