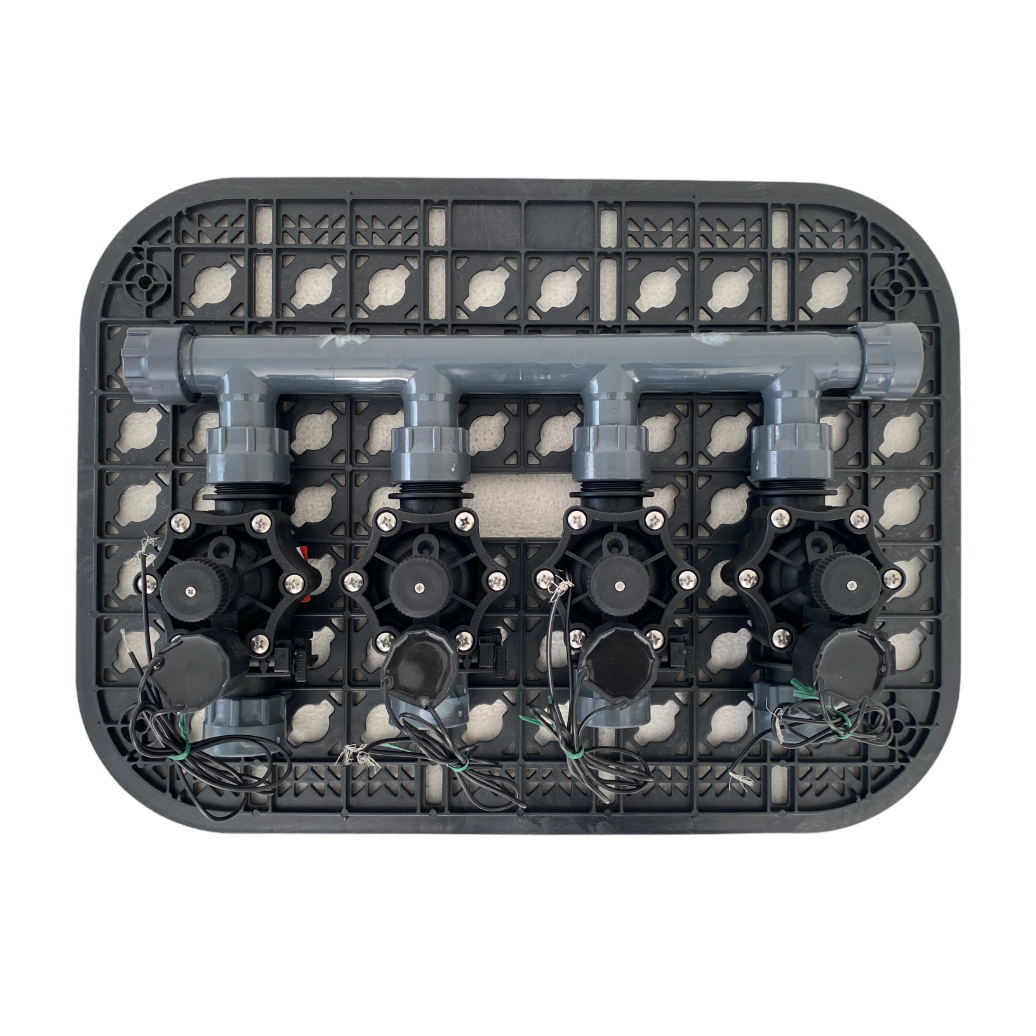

Valve Box Kit
Rain 4 Zone Pre-Made Rack Kit Small 113 | (525 x 395mm)
Valve Box Kit
Rain 4 Zone Pre-Made Rack Kit Small 113 | (525 x 395mm)
Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

SKU: 100.4151130

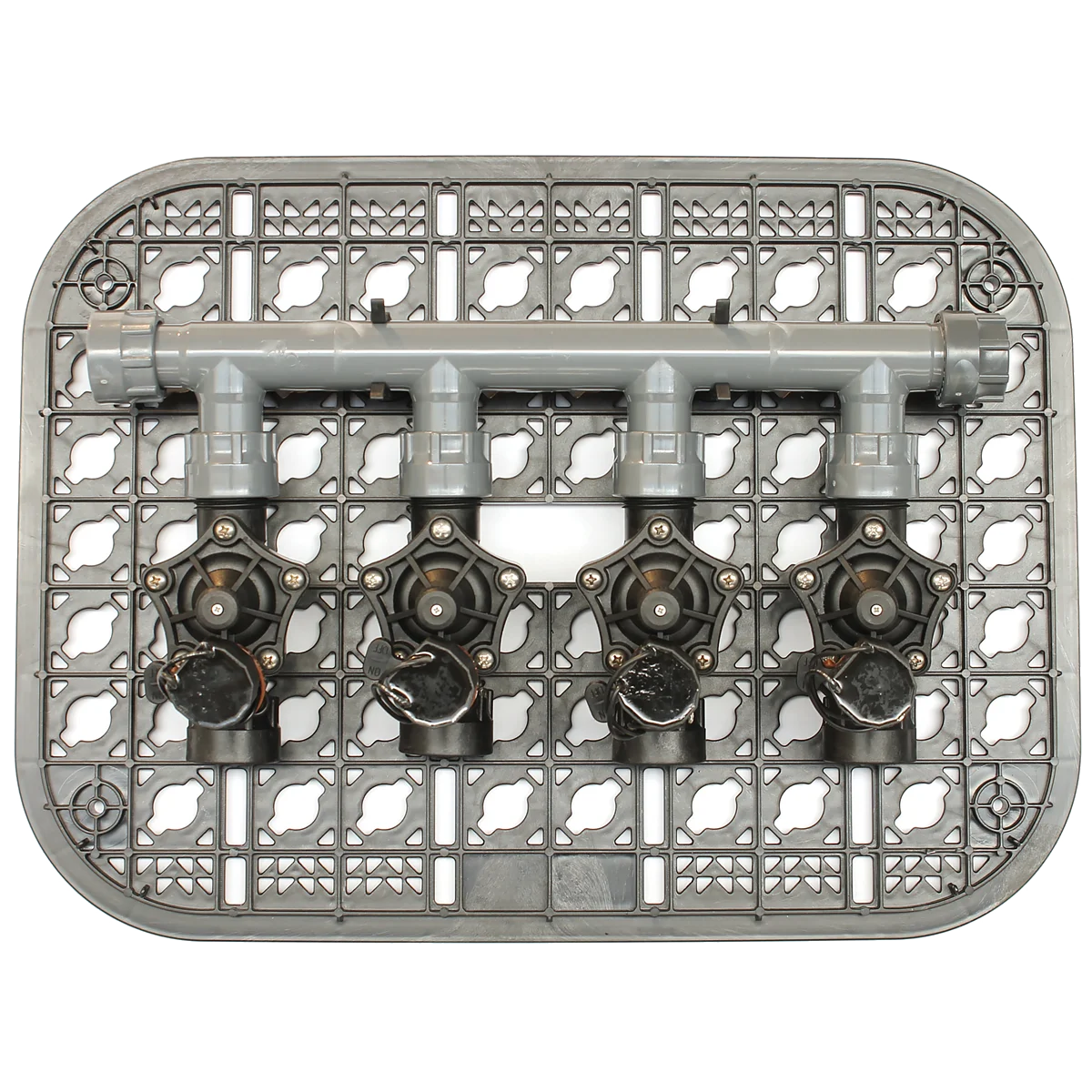

Rain 4 Zone Pre-Made Rack Kit Small 113 (525 x 395mm)

Save 20%
$130.46 excl. GST $163.08 – $232.10 $130.46 – $185.68 excl. GST /

Select an option to add this to your cart.

The 4 Zone pre-assembled  Small 113 Rack Kit with 4 x solenoid valves speeds up the installation time of the valve box and reduces system maintenance time, as well as keeping the valve box clean and tidy at all times.

Includes:
  • Rack
  • 4x 25mm (1)"  solenoid valves
  • 4-outlet Manifold,
  • cap
  • Positioning grid.
Valve specifications:
Ideal for systems with flow rates from 25 l/min to 70 l/min.
  • Threads available: 1" MxU
  • Minimum pressure: 1 bar
  • Maximum pressure: 12

Compatible with PZRM Small (113) Rectangular Standard Valve Box

Rain 4 Zone Pre-Made Rack Kit Small 113 | (525 x 395mm)

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

24 Vac Solenoid

24 Vac Solenoid

The controllers control 24 Vac normally closed solenoids. The control unit will supply the solenoid with a 24 Vac electrical signal for the entire irrigation time to open the electrovalve.
9 Vdc Solenoid

9 Vdc Solenoid

Battery-operated controllers control 9Vdc latching solenoids. The control unit will send an electrical signal at the start of irrigation to open the solenoid valve and a signal at the end of irrigation to close the solenoid valve.
Manifold system

Manifold system

The patented Rain Manifold System allows easy installation of solenoid valves and during valve box maintenance allows quick removal of the solenoid valve.
Wall Mounted

Wall Mounted

Rain's patented Rack start kit can be installed in the valve box or mounted on the wall of utility rooms, simplifying the maintenance of the irrigation system.

RACK KIT 113-155

Threads available: 1" MxU
Solenoid type: 24 Vac - normally closed, 9 Vdc - latching
Minimum pressure: 1
Maximum pressure: 12
Minimum operating flow rate: 30
Maximum operating flow rate: 150
Minimum operating temperature: 4
Maximum operating temperature: 70
Diaphragm type: In co-molded parts
Manufacturing material: Glass fiber PA 6 30%
Opening: Manual opening
Solenoid inrush absorption 24 Vac: 0.43 A
Absorption at solenoid maintenance 24 Vac: 0.21 A

Rack Kit 113 - 150 Specs

Solenoid type: 24 Vac (normally closed), 9 Vdc (latching)
Minimum pressure: 1 bar
Maximum pressure: 12 bar
Minimum operating flow rate: 20 l/min
Maximum operating flow rate: 90 l/min
Minimum operating temperature: 4°C
Maximum operating temperature: 70°C
Diaphragm type: Co-molded parts
Manufacturing material: Glass fiber PA 6 30%
Manual opening: Yes
Solenoid inrush absorption (24 Vac): 0.43 A
Solenoid maintenance absorption (24 Vac): 0.21 A

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
