SKU 700-75-50H

Irritrol Ultra Flow Series Solenoid Valves with ( AC Coil )

Name: Irritrol Ultra Flow Series Solenoid Valves with ( AC Coil )
Availability: InStock

WAS $0.00 - $0.00

WAS

$70.00

$70.00 - $390.99

$70.00

Excl. GST

Quantity

We accept all major credit cards.

Bank Transfer

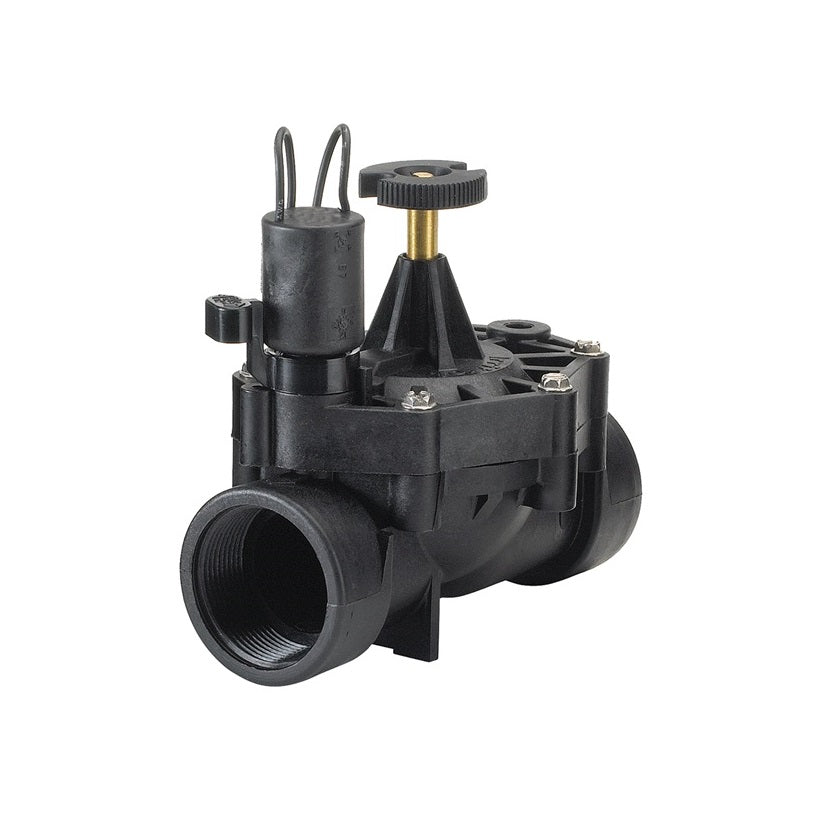

Irritrol Ultra Flow Series Solenoid Valves with AC Coil.

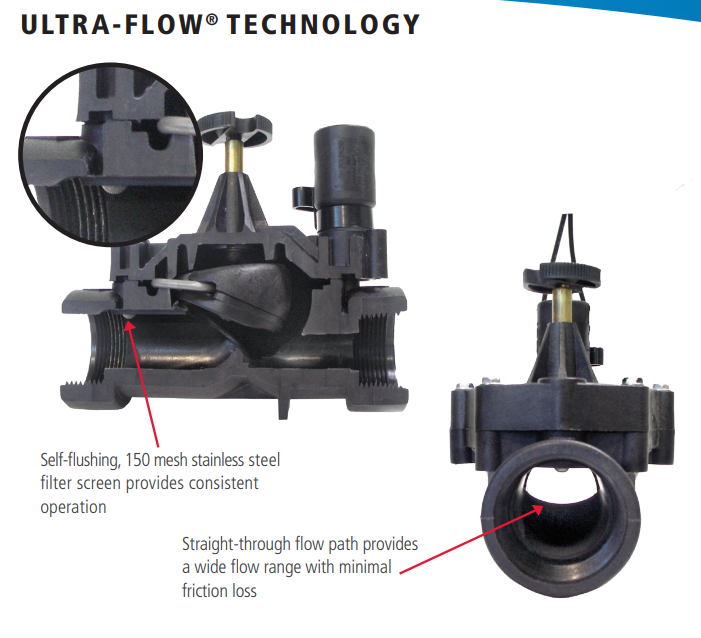

Unique straight-through flow path dramatically reduces friction loss
Glass-reinforced nylon body and bonnet with stainless steel spring and hardware
Rugged, nylon-reinforced Buna-N diaphragm add extra toughness
Self-flushing, 150-mesh, stainless steel filter provides consistent operation in potable and dirty water applications
Flow control allows flow adjustment and manual shut-off (not in 20mm Model)
Accepts Omnireg pressure regulator
Flow rate 1-680l/m
Operating pressure 0.7-10.3bar
5 year warranty

Specifications

Flow Range
20 mm	1 to 110l/m
25 mm	1 to 180l/m
40 mm	60 to 530l/m
50 mm	120 to 680l/m. Consult your irrigation designer before using any solenoid valve where flow velocities exceed 2m/sec
Pressure Range	70 - 1034kPa (maximum pressure drops to 800 kPa if using DCL coil) Independently tested at the CIT, California, USA
Solenoid	24VAC
Inrush volt-amp	24VAC–9.0VA
Inrush current	0.4amp
Holding volt-amp	24VAC–4.8VA

Documentations

Irritrol Ultra Flow Series Solenoid Valves (Metric)

Irritrol Ultra Flow Series Solenoid Valves (Imperial)

Irritrol Ultra Flow Series Solenoid Valves Installation and Operating Instructions

Compatible with

Replacement Diaphragm
We also offer replacement diaphragms in case yours wears out. (Click here to view)

MDPE Fittings
The Ultra Flow series valves are compatible with any male threaded MDPE fittings of the appropriate size (Click here to view)

Threaded fittings
The Ultra Flow series valves are compatible with any male threaded fittings of the appropriate size. (Click here to view)

Irritrol OMNIREG Series Pressure Regulator
The Ultra Flow series valves are compatible with The OMNIREG series Pressure regulators. (Click here to view)

Multi wire controllers (AC Solenoid ONLY)
The Ultra Flow series valves are compatible with all of our multi wire controls as long as they are equipped with a AC Solenoid. (Click here to view)

Battery Operated Controllers (DC Solenoid ONLY)
The Ultra Flow series valves are compatible with all of our battery operated controllers as long as they are equipped with a DC Solenoid. (Click here to view)

FAQ's

What does a solenoid valve do in an irrigation system?

A solenoid valve acts like a switch for water flow in irrigation. When activated by an irrigation controller, it opens an internal passage, allowing water to flow to a specific zone (sprinklers, drip system) and closes when shut off by the controller, stopping water flow.

What is a solenoid valve diaphragm used for?

In a solenoid valve, the diaphragm is a crucial component that acts as a barrier between the control mechanism (electrical coil) and the fluid being controlled (water, air, etc.). It has two main functions:

Sealing: The diaphragm separates the pressurised fluid from the electrical components of the valve. This prevents water damage to the coil and ensures a safe electrical operation.

Controlling Flow: The diaphragm moves based on the energising or de-energising of the solenoid coil. When energised, the coil creates a magnetic field that pulls the diaphragm open, allowing fluid to flow through the valve. Conversely, when de-energised, the magnetic field collapses, and a spring or fluid pressure pushes the diaphragm back to its closed position, stopping the flow.
