SKU EZP-23-94

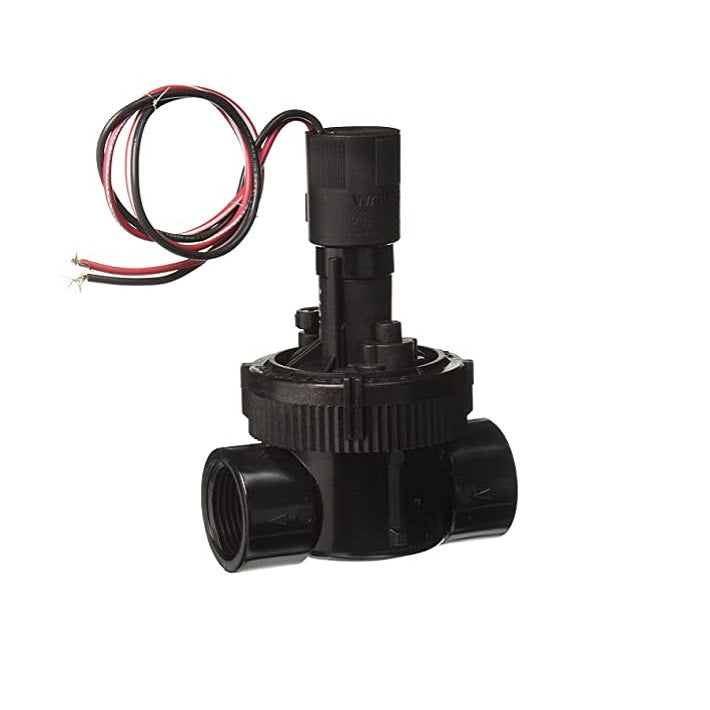

Toro EZ-Flo Plus Series 25mm BSP Solenoid Valve (DC Coil)

Name: Toro EZ-Flo Plus Series 25mm BSP Solenoid Valve (DC Coil)
Availability: InStock

WAS $0.00 - $0.00

WAS

$123.21

$109.74 - $123.21

$123.21

Excl. GST

Quantity

We accept all major credit cards.

Bank Transfer

Toro EZ-Flo Plus Series 25mm BSP Jar Top Solenoid Valve (DC Coil)

There are two different options available:

TORO 25mm EZ-Flo Solenoid Valve with Flow Control and DC Latching Coil
TORO 25mm EZ-Flo Solenoid Valve without Flow Control and DC Latching Coil

Features

DC Coil
25mm/1" BSP thread inlet
Jar-Top design requires no tools
Double-beaded, chloramine and ozone-resistant santoprene diaphragm
PVC, glass-filled nylon and stainless-steel construction for longer life span
Stainless steel pin for consistent valve operation
Multiple inlet and outlet configurations available (male, female, slip)
In-line or anti-siphon models
Flow range 0.9-113.5 l/m, operating pressure 0.68-10.32 bar
With or without flow control
3-year warranty.

Specifications

Flow range
25mm (1")	1-114 l/m
Operating pressure	70–1034 kPa
Body styles	(Globe valve) – 25mm (1") – FBSP and slip
Solenoid	50 Hz (24 V.a.c.)
– Inrush	0.34 Amps, 11.50 VA
– Holding	0.2 Amps, 5.75 VA

Options Available

• AC solenoid assembly also available (Click here to view)

Documentations

Toro EZ-Flo Plus Series Cell Sheet

Toro EZ-Flo Plus Series Installation Manual

Videos

No Videos Available

Compatible with

Manifold Fittings

The EZ-Flo Valves are compatible with all 25mm male Dura Manifold Fittings. (Click here to view)

Lateral Pipe Directors

The EZ-Flo Valves are compatible with the 25mm Threaded Male Directors. (Click here to view)

Swing Joints

The EZ-Flo valves are able to be installed in a VUH (Valve Under Head) configuration, this basically means that the valve is connected directedly to the sprinkler using a swing joint. EZ-Flo valves are only combatable with 25mm swing joints. (Click here to view)

Replacement Diaphragm

We also offer replacement diaphragms in case yours wears out. (Click here to view)

Reviews

FAQ's

What does a solenoid valve do in an irrigation system?

A solenoid valve acts like a switch for water flow in irrigation. When activated by an irrigation controller, it opens an internal passage, allowing water to flow to a specific zone (sprinklers, drip system) and closes when shut off by the controller, stopping water flow.

What is a solenoid valve diaphragm used for?

In a solenoid valve, the diaphragm is a crucial component that acts as a barrier between the control mechanism (electrical coil) and the fluid being controlled (water, air, etc.). It has two main functions:

Sealing: The diaphragm separates the pressurised fluid from the electrical components of the valve. This prevents water damage to the coil and ensures a safe electrical operation.

Controlling Flow: The diaphragm moves based on the energising or de-energising of the solenoid coil. When energised, the coil creates a magnetic field that pulls the diaphragm open, allowing fluid to flow through the valve. Conversely, when de-energised, the magnetic field collapses, and a spring or fluid pressure pushes the diaphragm back to its closed position, stopping the flow.
