SKU 204MT

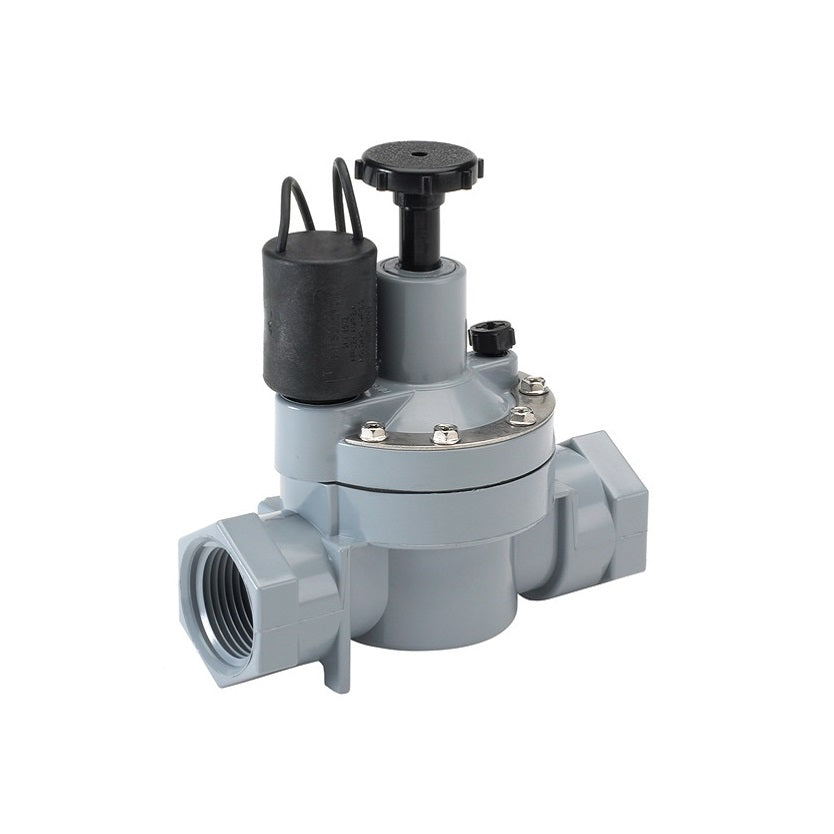

Irritrol 204-205 Series Solenoid Valve, 25mm/1" BSP Thread Inlet ( AC Coil )

Name: Irritrol 204-205 Series Solenoid Valve, 25mm/1" BSP Thread Inlet ( AC Coil )
Availability: InStock

WAS $0.00 - $0.00

WAS

$76.01

$76.01 - $78.29

$76.01

Excl. GST

Quantity

We accept all major credit cards.

Bank Transfer

Irritrol 204-205 Series Solenoid Valve with AC Coil, 25mm/1" BSP Thread Inlet.

Designed primarily for light commercial and residential use, these rugged electric valves have offered debris-tolerant operation and a high-flow, low-friction-loss design for optimum performance for nearly 30 years.

Improved bonnet design for improved pressure tolerance
Heavy duty construction
Corrosion and UV-resistant PVC
Rugged, nylon-reinforced Buna-N diaphragm
Debris-Tolerant Design for operation in potable and dirty water applications
Flowrate 1.0-100l/m
Operating pressure 0.69-10.34 bar
5 year warranty.

Specifications

Flow Range	.25-30GPM
Holding Current	.2amp
Holding Volt-Amp	24 VAC - 4.8 VAC
Inrush Current	.4amp
Inrush Volt-Amp	24 VAC - 9.6 VAC
Solenoid	24 VAC

Compatible with

Manifold Fittings

The Irritrol 204-205 Valves are compatible with all 25mm male Dura Manifold Fittings.

The Irritrol 204-205 Valves are compatible with the 25mm Threaded Male Directors.

Swing Joints

The Irritrol 204-205 valves are able to be installed in a VUH (Valve Under Head) configuration, this basically means that the valve is connected directedly to the sprinkler using a swing joint. Irritrol 204-205 valves are only combatable with 25mm swing joints.

Replacement Diaphragm

We also offer replacement diaphragms in case yours wears out.

Videos

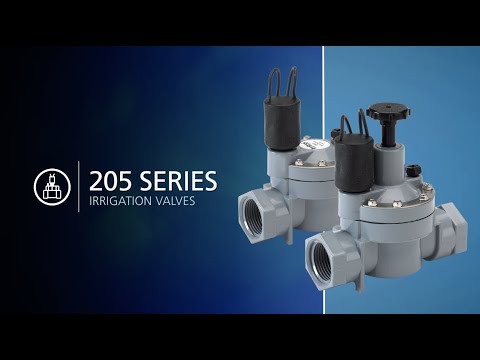

205 Series Valves

The Irritrol® 205 Series 1-inch plastic valve is the irrigation industry’s time-tested leader for dependable operation in potable and dirty water applications.

Downloads

Irritrol 204-205 Series Solenoid Valve (Metric) Download View File

FAQ's

What does a solenoid valve do in an irrigation system?

A solenoid valve acts like a switch for water flow in irrigation. When activated by an irrigation controller, it opens an internal passage, allowing water to flow to a specific zone (sprinklers, drip system) and closes when shut off by the controller, stopping water flow.

What is a solenoid valve diaphragm used for?

In a solenoid valve, the diaphragm is a crucial component that acts as a barrier between the control mechanism (electrical coil) and the fluid being controlled (water, air, etc.). It has two main functions:

Sealing: The diaphragm separates the pressurised fluid from the electrical components of the valve. This prevents water damage to the coil and ensures a safe electrical operation.

Controlling Flow: The diaphragm moves based on the energising or de-energising of the solenoid coil. When energised, the coil creates a magnetic field that pulls the diaphragm open, allowing fluid to flow through the valve. Conversely, when de-energised, the magnetic field collapses, and a spring or fluid pressure pushes the diaphragm back to its closed position, stopping the flow.
