SKU 100P1-BSP

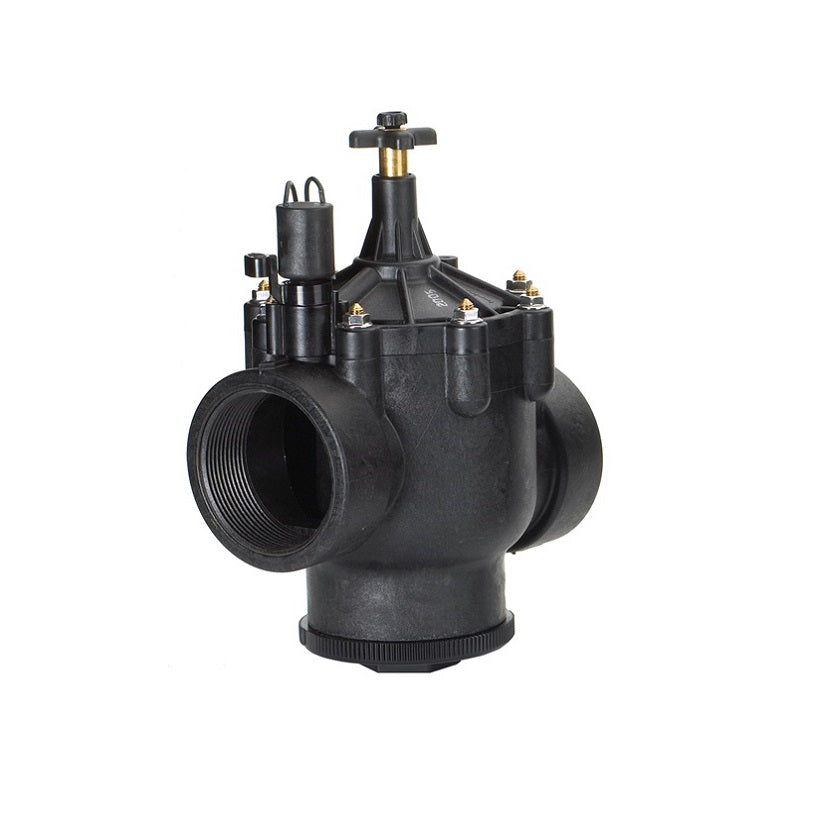

Irritrol 100P Series Solenoid Valve with Flow Control Feature ( AC Coil )

Name: Irritrol 100P Series Solenoid Valve with Flow Control Feature ( AC Coil )
Availability: InStock

$0.00 - $0.00

$160.18

$160.18 - $435.72

$160.18

Excl. GST

Quantity

Irritrol Century Plus 100P Series Solenoid Valve with AC Coil and Flow Control Feature.

These heavy-duty globe/angle valves, designed primarily for commercial applications, offer superior performance and durability under the most demanding conditions. Tracing its origin back to the highly popular Century Series, the 100 Series (Century PLUS) delivers reliable performance with a host of enhanced features.

Tough, glass-reinforced nylon, stainless steel and brass construction for extra reliability
Nylon reinforced EPDM double-beaded diaphragm
Externally removable self-cleaning metering system provides consistent performance in recycled water applications
Accepts Omnireg pressure regulator
Flow control allows flow adjustment and manual shut-off (not in 20mm model)
Flow rate 18.9-1136l/m
Operating pressure 0.69-15.17bar
5 year warranty.

Specifications

Solenoid	24 VAC
Inrush volt-amp	24 VAC - 9.6 VAC
Inrush current	0.4amp
Holding volt-amp	24 VAC - 4.8 VAC
Holding current	0.2amp Dimensions (L × W × H) Size Length (mm) Width (mm) Height (mm) 25 130 92 171 40 130 92 184 50 197 156 243 80 210 156 273
25 mm	20 to 200l/m
40 mm	120 to 400l/m
50 mm	300 to 650l/m
80 mm	575 to 1100l/m Consult your irrigation designer before using any solenoid valve where flow velocities exceed 2m/s

Documentations

Irritrol 100P Series Solenoid Valve Data sheet (Metric)

Irritrol 100P Series Solenoid Valve Data sheet (Imperial)

Irritrol 100P Series Installation Instructions

Compatible with

Replacement Diaphragm
We also offer replacement diaphragms in case yours wears out. (Click here to view)

MDPE Fittings
The 100P series valves are compatible with any male threaded MDPE fittings of the appropriate size (Click here to view)

Threaded fittings
The 100P series valves are compatible with any male threaded fittings of the appropriate size. (Click here to view)

Irritrol OMNIREG Series Pressure Regulator
The 100P series valves are compatible with The OMNIREG series Pressure regulators. (Click here to view)

Multi wire controllers (AC Solenoid ONLY)
The 100P series valves are compatible with all of our multi wire controls as long as they are equipped with a AC Solenoid. (Click here to view)

FAQ's

What does a solenoid valve do in an irrigation system?

A solenoid valve acts like a switch for water flow in irrigation. When activated by an irrigation controller, it opens an internal passage, allowing water to flow to a specific zone (sprinklers, drip system) and closes when shut off by the controller, stopping water flow.

What is a solenoid valve diaphragm used for?

In a solenoid valve, the diaphragm is a crucial component that acts as a barrier between the control mechanism (electrical coil) and the fluid being controlled (water, air, etc.). It has two main functions:

Sealing: The diaphragm separates the pressurised fluid from the electrical components of the valve. This prevents water damage to the coil and ensures a safe electrical operation.

Controlling Flow: The diaphragm moves based on the energising or de-energising of the solenoid coil. When energised, the coil creates a magnetic field that pulls the diaphragm open, allowing fluid to flow through the valve. Conversely, when de-energised, the magnetic field collapses, and a spring or fluid pressure pushes the diaphragm back to its closed position, stopping the flow.
