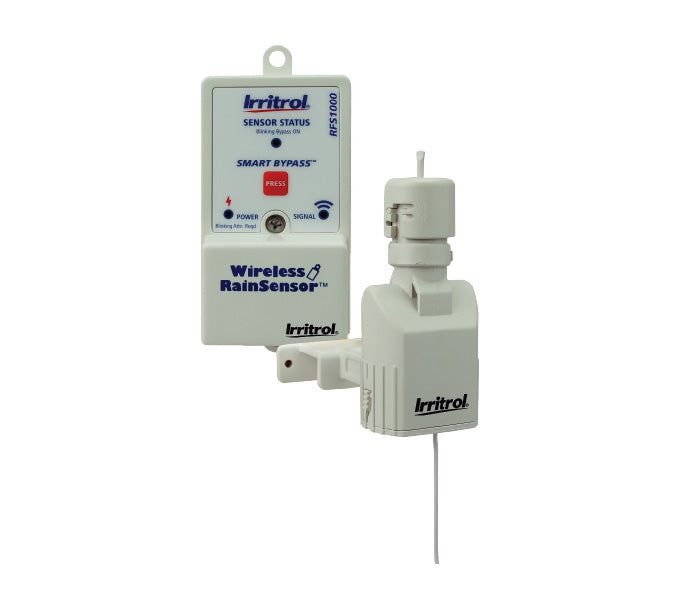

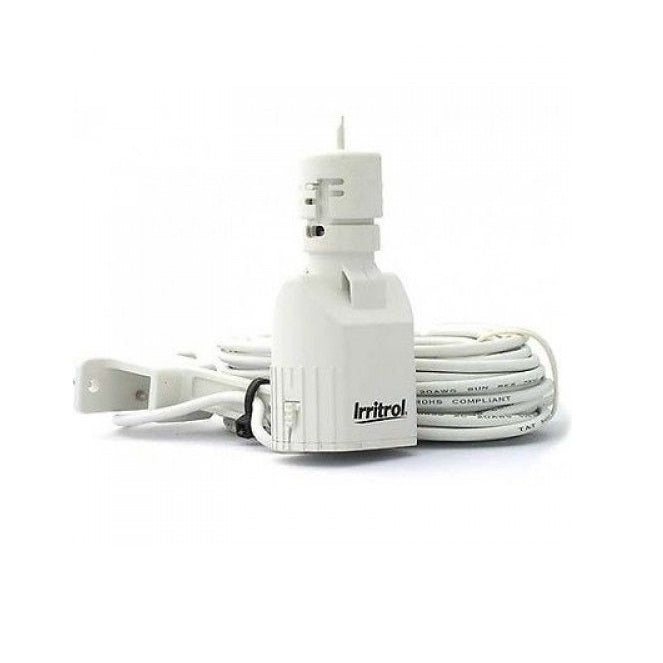

Irritrol Rain Sensor Series Wireless & Wired Sensors

$104.65 excl. GST $104.65 – $321.72 excl. GST /

Select an option to add this to your cart.

Rain Sensor Type : Hardwired : Wireless

Irritrol Rain Sensor Series.

Two water conservation devices that can operate with almost any controller. The sensor senses a rain event and prevents programmed irrigation from happening. Suitable for use in residential and commercial systems.

Key benefits of a wireless sensor:

Saves labour and suits retro-fit projects
Constant communication – assures that even after a controller power outage, the controller is continually updated with the sensors status
Signal strength indicator – aids installation and troubleshooting
Smart bypass – allows deactivation of the sensor temporarily – handy for watering special needs zones.
Dry out rate adjustment – increases water saving ability by setting the ideal dry out time.

Specifications

Housing Material UV-resistant engineered polymer
Load Rating normally open or normally closed — 3A @ 24VAC
Operating Temperature -20°F to 120°F
Rain Sensitivity adjustable nominal 1?8" to ¾"
Receiver Power 22-28 V ac/V dc, 100mA (to be used with Class 2, UL-approved (transformer)
Sensor Type industry-standard hygroscopic discs
Wireless only Features Transmission range: up to 300' line-of-sight - Battery: Two CR2032 3V cells, 5-year life (typical) - Frequency: 418MHz

Documentations

Irritrol Rain Sensor Series Data Sheet

Irritrol Rain Sensor Series Wired User Manual

Irritrol Rain Sensor Series Wireless User Manual

?Videos??

Compatible with

Multi-Wire Controllers
The Irritrol Rain Sensor Series is compatible with most of the Multi-Wire Controllers.
Please check compatibly with whatever Multi-Wire Controller you are interested in.
(Click here to view)

Battery Operated Controllers
The Irritrol Wired Rain Sensor Series is compatible with all of our battery operated controllers (Click here to view)
