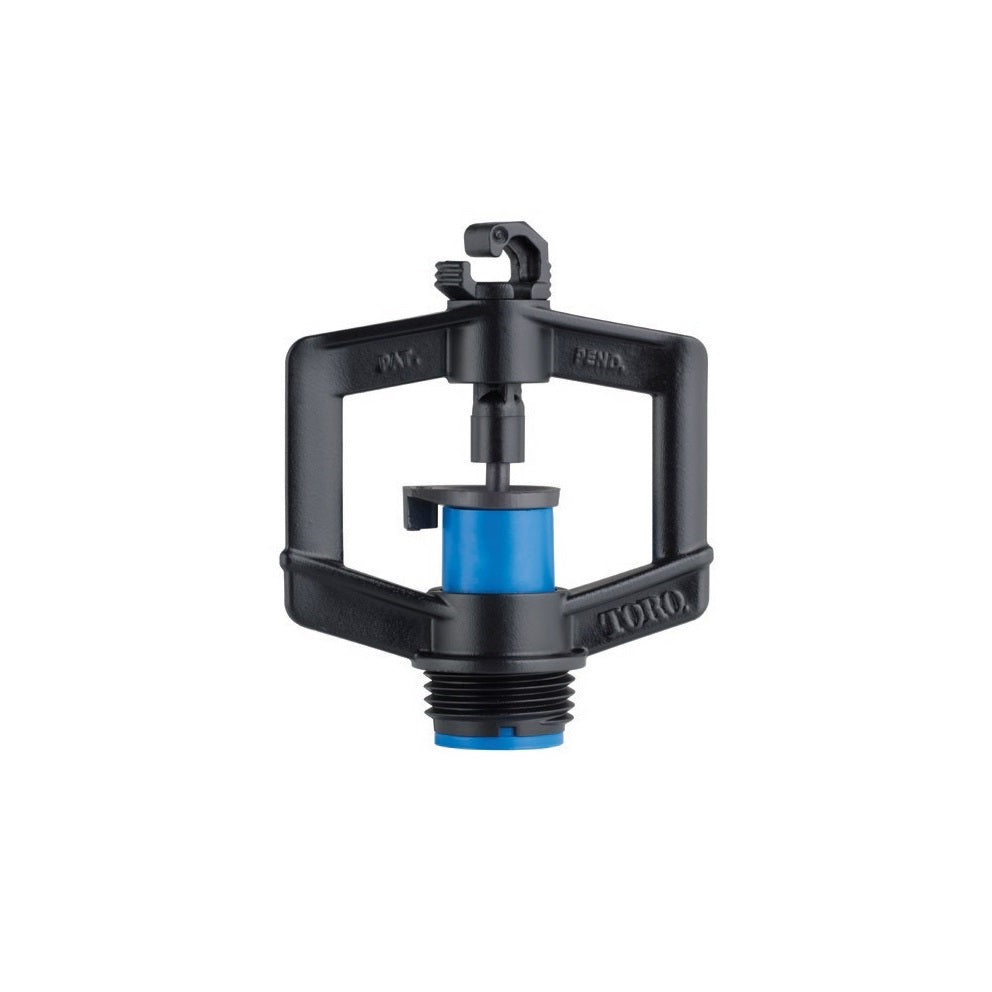

Toro Waterbird Classic - Non Pressure Compensating Without Deflector Tab
Engineered to provide improved water application for low volume, under-tree and under vine installations.
- Inlet 10 mm MBSP/NPT
- Materials: frame, bearing and nozzle: Acetal. Spinner: Nylon
- Flow above 100l/h use 10mm tube
-
Flows below 100l/h use 5mm tube
Features
- Engineered to provide improved water application for under tree and vine installations Aerofoil shaped frame minimises dry spots
- Snap Fit bearing provides easy field disassembly
- Anti-insect/dust proof spinner retracts to protect nozzle when not in operation
- Improved distribution characteristics with large droplet size being less susceptible to wind effects
- Low angle of throw for maximising under foliage penetration
- Proven robust frame design for superior strength and long field life
- Available with snap-off deflector for irrigating young trees (reduces diameter to 30% of stated performance)
- Eight colour coded flow rates from 29l/h to 304l/h
- Maximum diameter of throw in excess of 10m
- Fully assembled models available with pre-installed tube and stake
Specifications
- Inlet: 10mm MBSP/NPT
- Recommended Pressure Range: 100 – 200kPa
- Materials: Frame, bearing and nozzle: Acetal Spinner: Nylon
- Flow: 29-304l/h
- Radius: 2.75-5.1m
