SKU 1014281

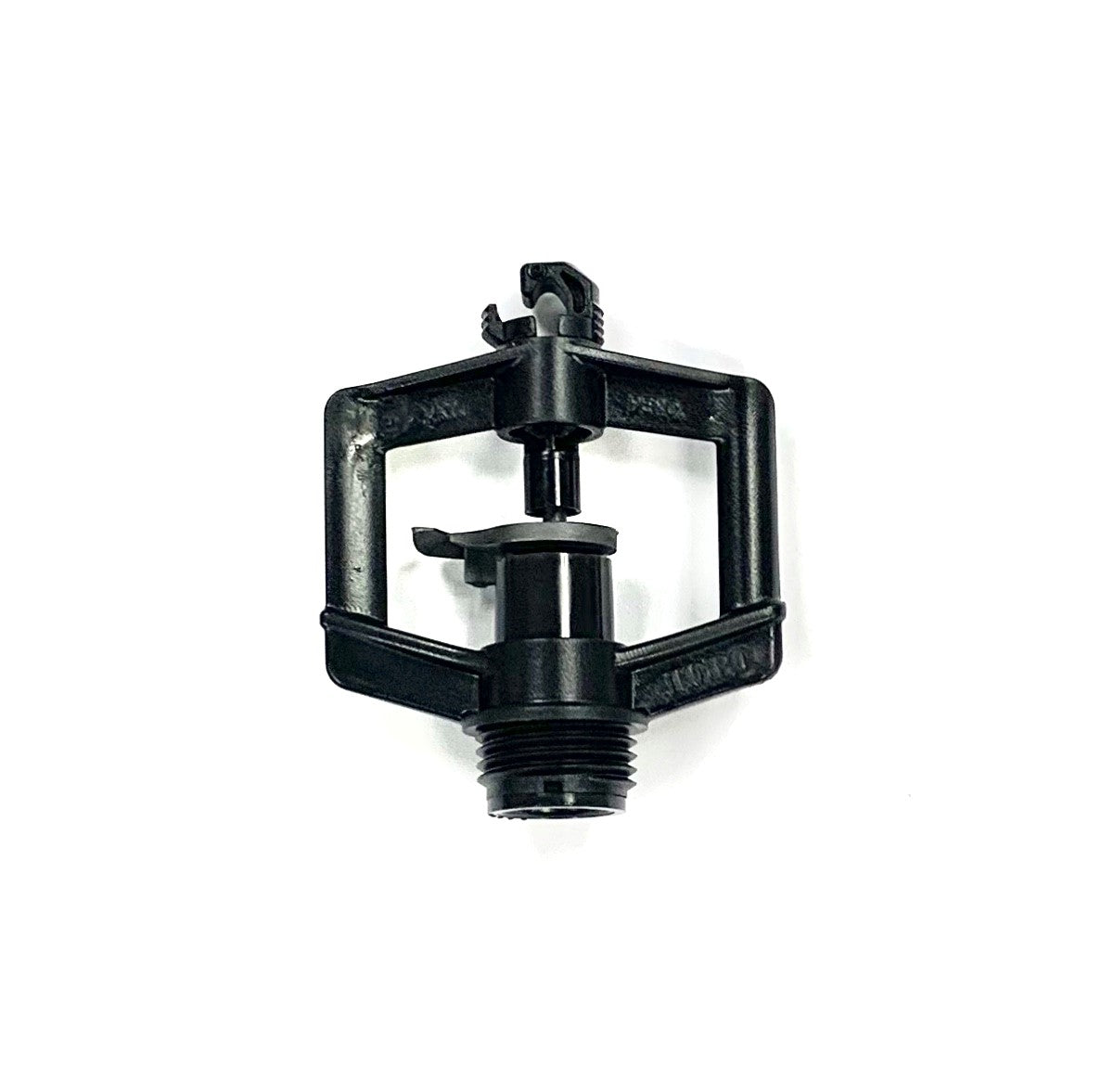

Toro Waterbird Classic - Non Pressure Compensating With Deflector Tab
Original price
WAS
$0.00
-
Original price
$0.00
Original price
WAS
$2.99
$1.29
-
$2.99
Current price
$2.99
Excl. GST
0.6L/m
The flow rate of water from the fixture.
0.6L/m (Litres per Minute)
36L/h (Litres per Hour)
0.16GPM (Gallons per Minute)
9.51GPH (Gallons per Hour)
0.6L/m (Litres per Minute)
36L/h (Litres per Hour)
0.16GPM (Gallons per Minute)
9.51GPH (Gallons per Hour)
At
100 - 200
KPa
Minimum: 100 KPa
Maximum: 200 KPa
Maximum: 200 KPa
Engineered to provide improved water application for low volume, under-tree and under vine installations.
- Inlet 10 mm MBSP/NPT
- Materials Frame, bearing and nozzle: Acetal. Spinner: Nylon
- Flow above 100l/h use 10mm tube
- Flows below 100l/h use 5mm tube
Features
- Engineered to provide improved water application for under tree and vine installations Aerofoil shaped frame minimizes dry spots
- Snap Fit bearing provides easy field disassembly
- Anti-insect/dust proof spinner retracts to protect nozzle when not in operation
- Improved distribution characteristics with large droplet size being less susceptible to wind effects
- Low angle of throw for maximising under foliage penetration
- Proven robust frame design for superior strength and long field life
- Available with snap-off deflector for irrigating young trees
- Six colour coded flow rates from 29l/h to 179l/h
- Fully assembled models available with pre-installed tube and stake
Specifications
- Inlet: 10 mm MBSP/NPT
- Recommended Pressure Range: 100 – 200kPa
- Materials: Frame, bearing and nozzle: Acetal Spinner: Nylon
- Flow: 36-134l/h
- Radius: 0.5-0.6m
