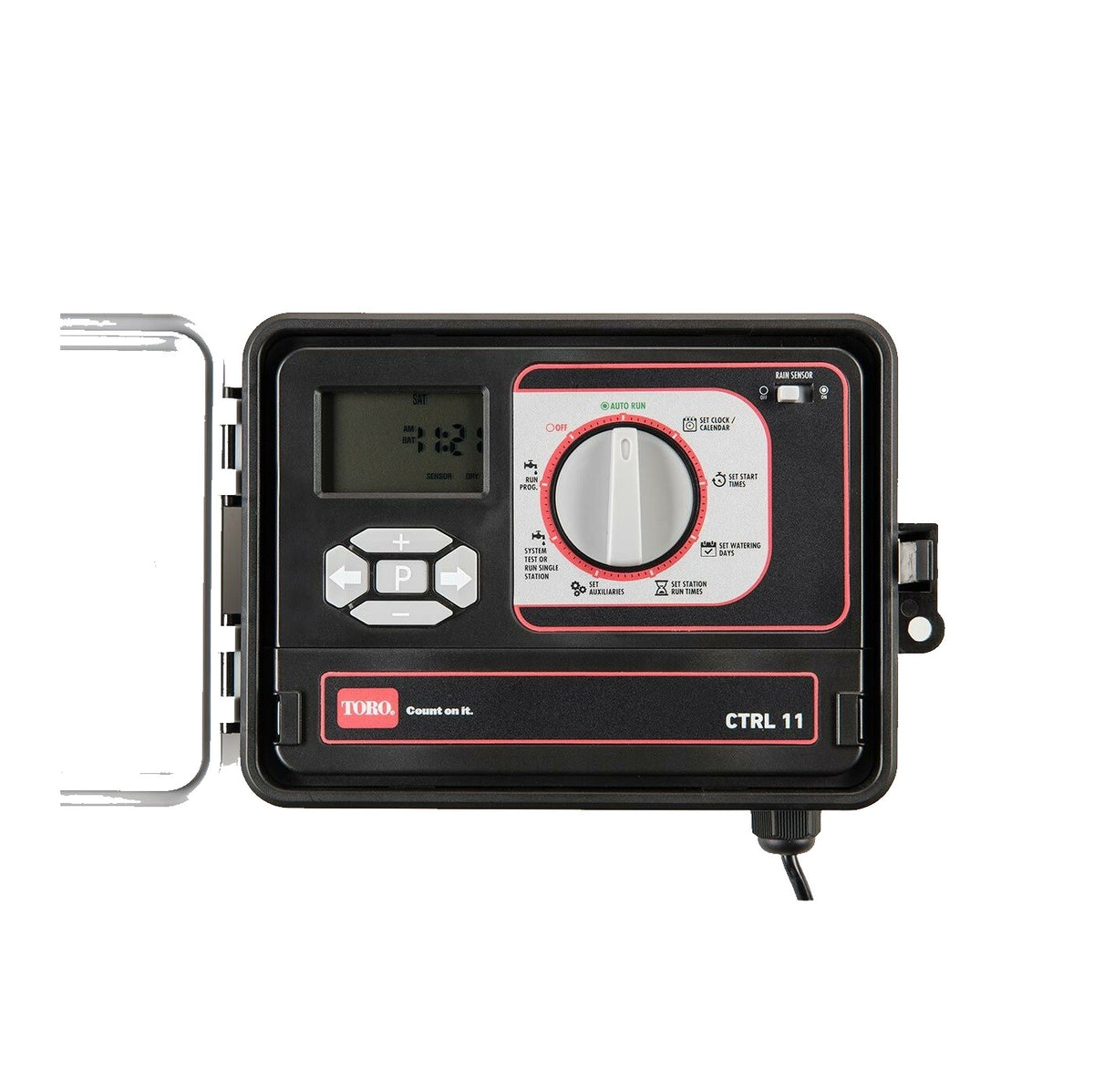

Toro Lawn Dial Series Controller.
Toro Lawn Dial is an entry-level outdoor controller suited to domestic and light commercial applications. The Lawn Dial is easy to use and reliable. Available in 6 and 11 stations, it features an easy-to-use dial, large LCD display and interactive control buttons to make navigating through the program sequence quick and easy. The non-volatile memory retains all programmed information for up to 5 years even in the event of loss of mains power. Suitable for use with pumps, the Lawn Dial controller provides versatile scheduling options and is compatible with Toro Rain Sensors to maximize water efficiency.
Features
- Available in 6 or 11 stations
- Has 6 programs with up to 6 start-times per program
- Maximum runtime of 12 hrs and 59 mins (in 1-min increments)
- Multiple watering days options
- Seasonal water adjust from 0%-200% in 10% increments for all stations and programs simultaneously
- Programmable master valve
-
1 year warranty.
Specifications
| Input Power |
230 VAC / 240 VAC 50 Hz
|
| Station Output Power |
24 VAC
|
| Operating Temperature |
0 - 60°C
|
| Dimensions |
240 mm (W) x 80 mm (D) x 185 mm (H)
|
Documentation
Toro Lawn Dial series Controller Brochure
Toro Lawn Dial series Controller User Manual
Videos
No Video Available
Compatible with
AC Solenoid Valves
The Toro DDC Series Controller is compatible with all AC Solenoid Vales
(Click here to view)
Irrigation cable
The Toro DDC Series Controller is compatible with all multicore cable
(Click here to view)
Rain Sensors
The Toro DDC Series Controller is compatible with both Irritrol and Toro Rain sensors
Toro (Click here to view)
Irritrol (Click here to view)
