Irritrol Ultra Flow Series Solenoid Valves with ( AC Coil )
Irritrol Ultra Flow Series Solenoid Valves with AC Coil.

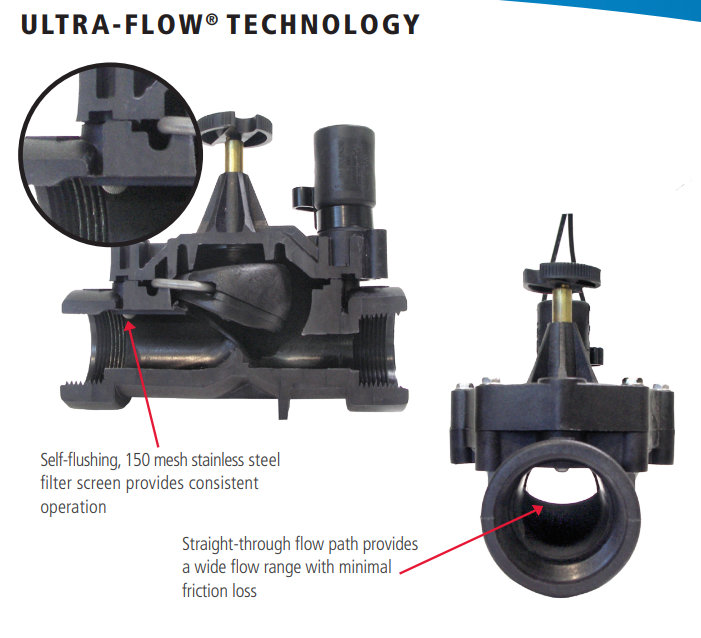

- Unique straight-through flow path dramatically reduces friction loss
- Glass-reinforced nylon body and bonnet with stainless steel spring and hardware
- Rugged, nylon-reinforced Buna-N diaphragm add extra toughness
- Self-flushing, 150-mesh, stainless steel filter provides consistent operation in potable and dirty water applications
- Flow control allows flow adjustment and manual shut-off (not in 20mm Model)
- Accepts Omnireg pressure regulator
- Flow rate 1-680l/m
- Operating pressure 0.7-10.3bar
- 5 year warranty
Specifications
| Flow Range | |
| 20 mm | 1 to 110l/m |
| 25 mm | 1 to 180l/m |
| 40 mm | 60 to 530l/m |
| 50 mm | 120 to 680l/m. Consult your irrigation designer before using any solenoid valve where flow velocities exceed 2m/sec |
| Pressure Range | 70 - 1034kPa (maximum pressure drops to 800 kPa if using DCL coil) Independently tested at the CIT, California, USA |
| Solenoid | 24VAC |
| Inrush volt-amp | 24VAC–9.0VA |
| Inrush current | 0.4amp |
| Holding volt-amp | 24VAC–4.8VA |
Documentations
Compatible with
Replacement Diaphragm
We also offer replacement diaphragms in case yours wears out. (Click here to view)
MDPE Fittings
The Ultra Flow series valves are compatible with any male threaded MDPE fittings of the appropriate size (Click here to view)
Threaded fittings
The Ultra Flow series valves are compatible with any male threaded fittings of the appropriate size. (Click here to view)
Irritrol OMNIREG Series Pressure Regulator
The Ultra Flow series valves are compatible with The OMNIREG series Pressure regulators. (Click here to view)
Multi wire controllers (AC Solenoid ONLY)
The Ultra Flow series valves are compatible with all of our multi wire controls as long as they are equipped with a AC Solenoid. (Click here to view)
Battery Operated Controllers (DC Solenoid ONLY)
The Ultra Flow series valves are compatible with all of our battery operated controllers as long as they are equipped with a DC Solenoid. (Click here to view)
