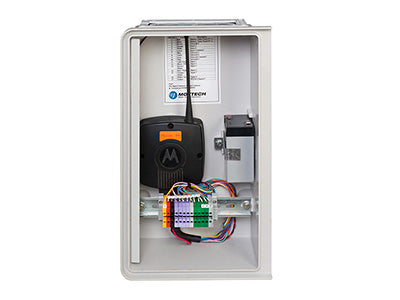

The Piccolo XR is a small, wireless two-way radio remote terminal unit (RTU) that is an integral part of the IRRInet platform. The Piccolo XR operates up to 8 latched outputs and may receive up to 12 digital inputs (model dependent).
The Piccolo Interface Unit (PIU) connects to an IRRInet field unit and communicates with other Piccolo XR units via its internal two-way, low-power radio.
Piccolo XR and PIU are equipped with internal 10/100 mW configurable radios. For extended radio coverage, the Piccolo XR can operate in networking mode using numerous hops.
Frequency Range: 450-470MHz
Thousands of XRs are installed around the world in use in applications that range from agriculture and municipal irrigation control systems to water supply systems.
Both the Piccolo XR and the PIU are equipped with configurable internal 10/100 mW radios to extend radio coverage. They can function as part of the communication network, using store and forward protocols.
Piccolo XR is a high-efficiency unit with very low power requirements. It ships complete with a 6V/90 mA solar panel to prolong the battery’s lifespan, provide a stable energy source, and ensure reliable communications. With its self-contained, secure enclosure, Piccolo XR installs and is ready to work with IRRInet in just minutes.
The Piccolo XR series has been designed to work in nearly all environments.
