SKU: INF55-5154

Toro Infinity Series INF55 Conversion Assembly Nozzles 40mm (1 1/2") Dual Trajectory Full Circle & Part Circle In One

$432.46 excl. GST $432.46 excl. GST /

Select an option to add this to your cart.

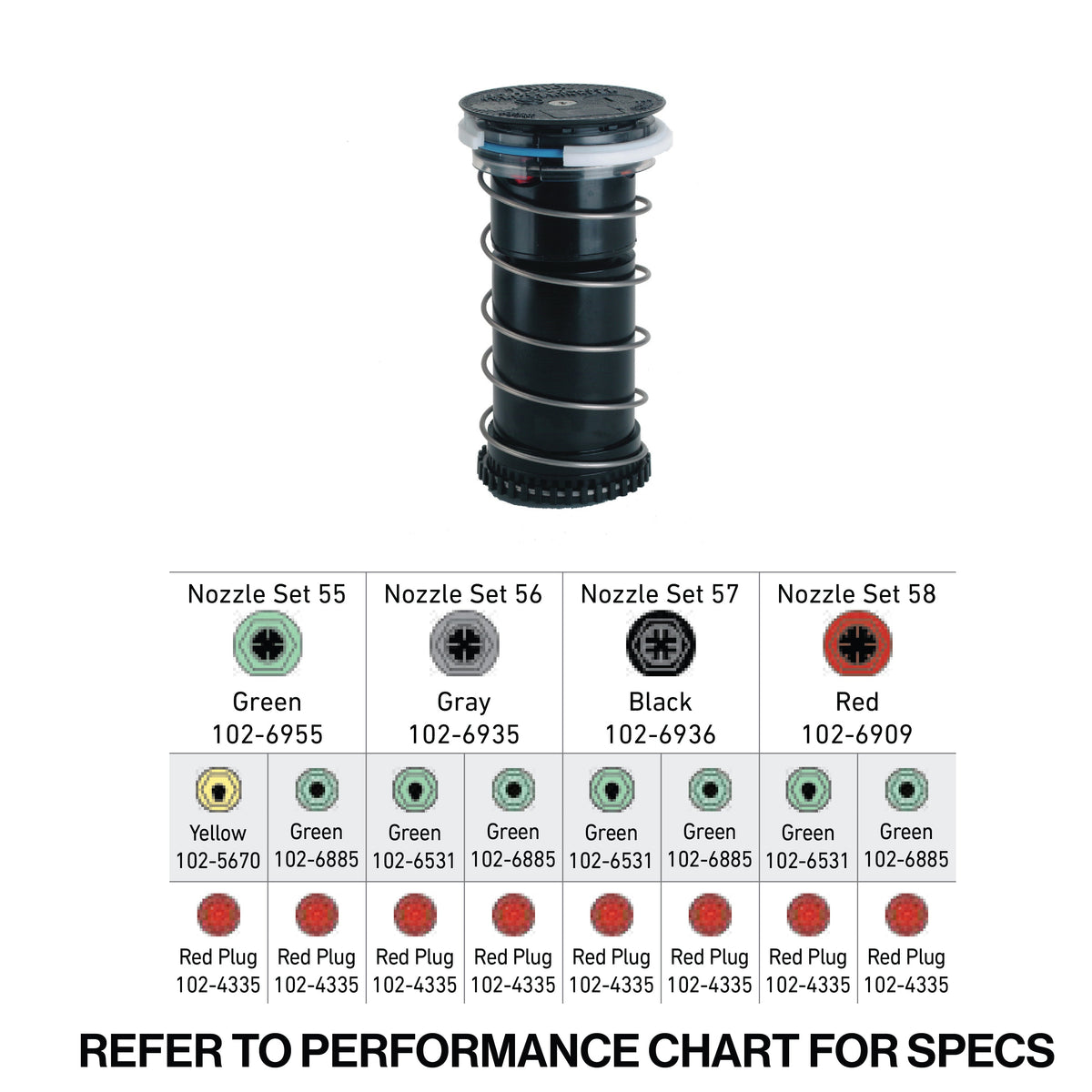

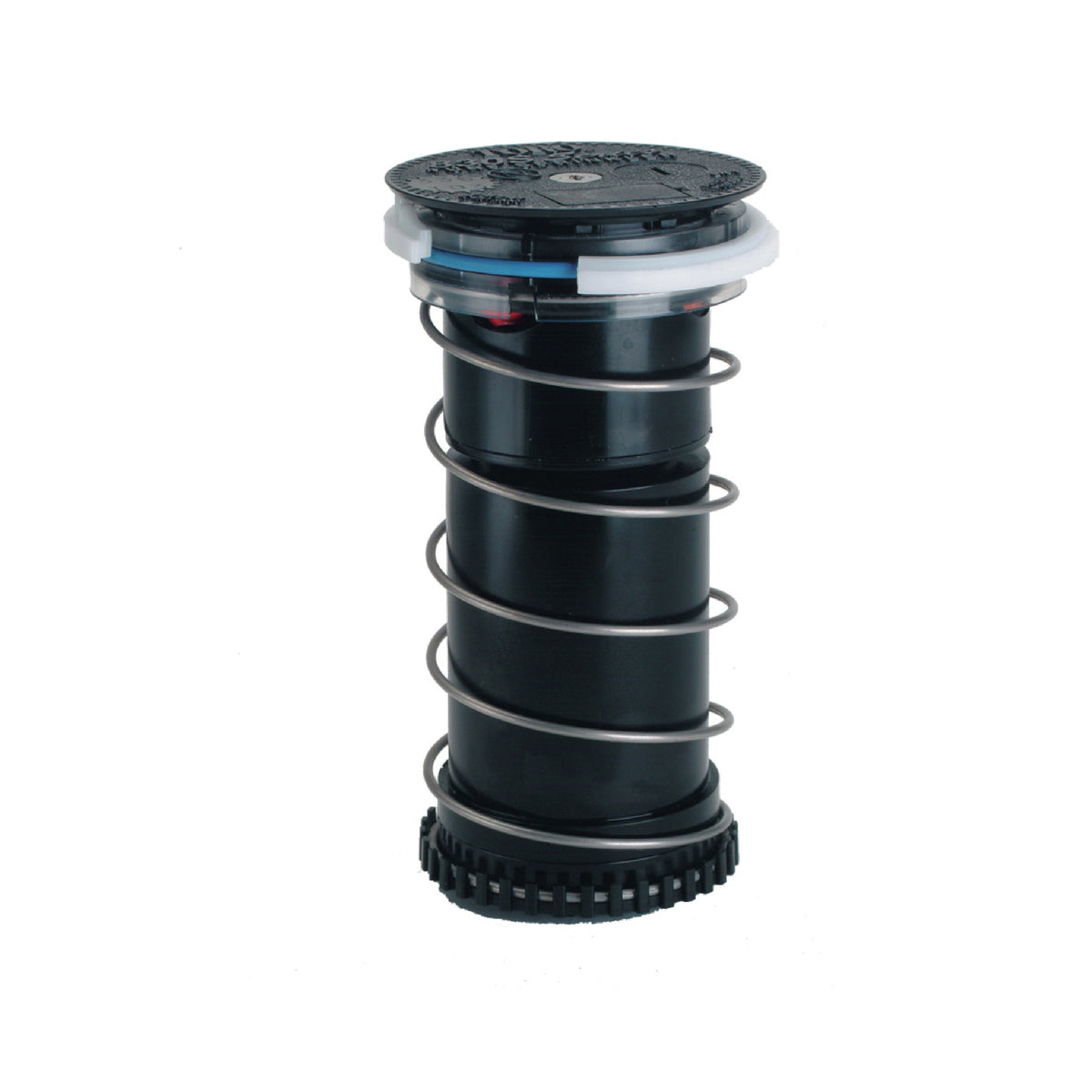

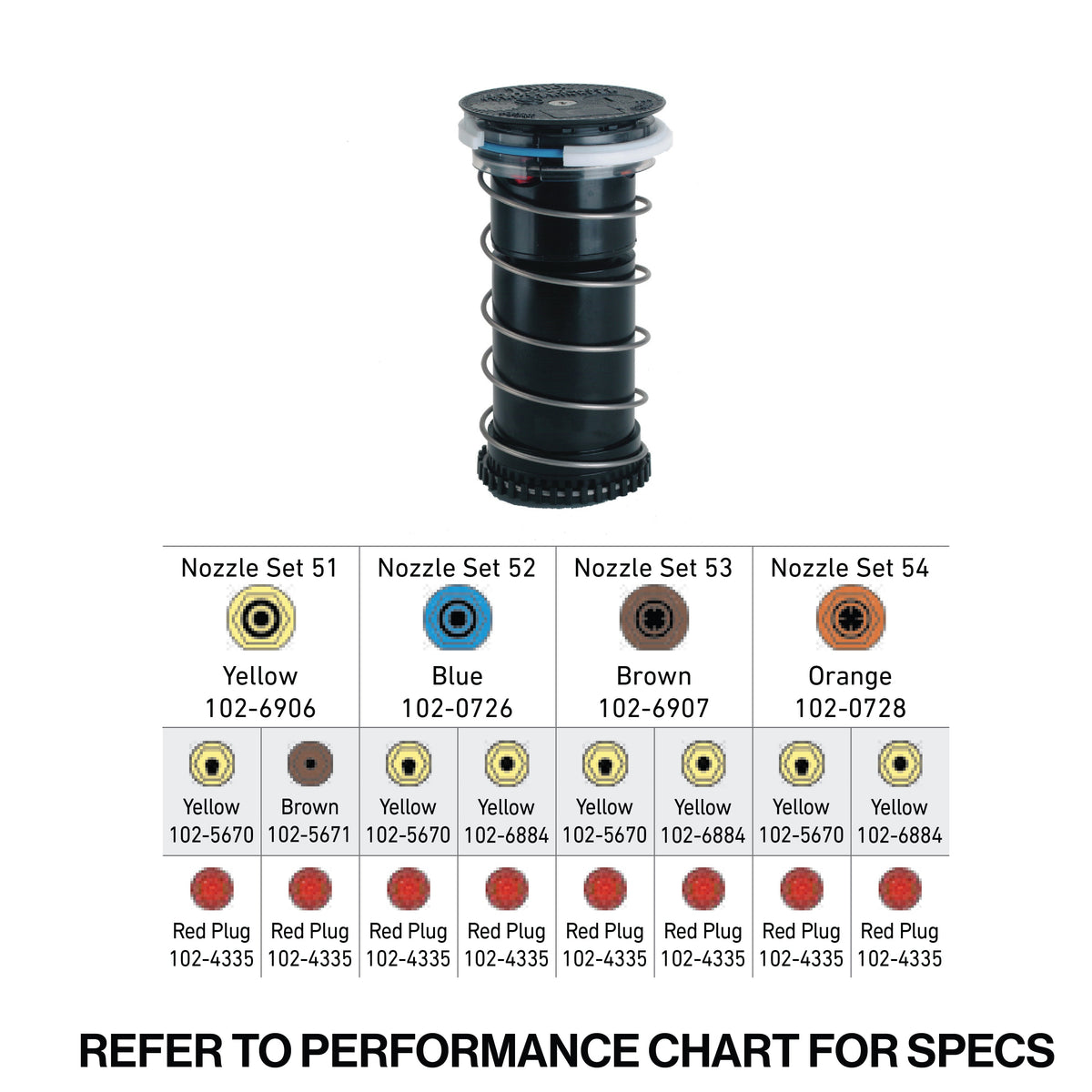

Conversion assemblies are designed to give you multiple nozzles options for your desired set-up. Body Required.

Ratcheting Riser
Align part circle quickly and easily or adjust watering locations to suit seasonal needs.

Hot Spot Watering
Nozzle base can be turned in either direction and held to put down as much water as needed, precisely where you want it. Standard on all Toro Part circle Golf rotors!

True Part and Full-Circle in One – 40° - 330° Part Circle and 360º Full Circle
These sprinklers can be 360º full circle today and part circle tomorrow allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates.

Dual Trajectory – 2 positions – 15°or 25°
The 25° setting provides maximum distance of throw and the 15° setting provides improved wind performance, radius reduction and obstacle avoidance.

Toro Infinity Series INF55 Conversion Assembly Nozzles | 40mm (1 1/2") | Dual Trajectory | Full Circle & Part Circle In One

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

Toro Infinity Series NOZZLE SELECTION- INF35

  • INF35 has eight nozzle variations (30, 31, 32, 33, 34, 35, 36 & 37)
  • Three in-line nozzles, rotating stream pattern
  • Two back nozzle positions
  • Stator variations: 3
  • Radius reduction screw 363-4839 for fine tuning

Toro Infinity Series - INF55

Radius: 16.7 – 28.0m (55’ – 92’)
Flow Rate: 53.0 – 232.0 LPM (14.1 – 61.3 gpm)
Precipitation Rates: Minimum - 11.4 mm/hr (0.45”/hr); Maximum - 20.5 mm/hr (0.81”/hr)
Pilot Valve: Selectable at 3.4; 4.5; 5,5; and 6.9 bar (50, 65, 80 and 100 psi)
Recommended Operating Pressure Range: 4.5-6.9 bar (65-100 psi); Maximum = 10,3 bar (150 psi); Minimum = 2,8 bar (40 psi)
SMART ACCESS™ Cover and Compartment Diameter: 19.3cm (7.6”)
Body height: 29cm (113/8”)
Body weight: 2.30kg (5.08 lb)
WARRANTY: Two years; Five years when installed with Toro® Swing Joints

Toro Infinity Series BODY - Power Options

Standard Solenoid: 24 VAC, 50/60 Hz, Inrush; 0.30A, Holding; 0.20A
Spike Guard Solenoid: 24 VAC, 50/60 Hz, Inrush; 0.12A, Holding; 0.10A
Nickel-Plated Spike Guard Solenoid: 24 VAC, 50/60 Hz, Inrush; 0.12A, Holding; 0.10A
DC Latching Solenoid (DCLS): Momentary low voltage pulse
LYNX Smart Module with DCLS: Momentary low voltage pulse

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
