SKU: INF54-5154

Toro Infinity Series INF54 Conversion Assembly Nozzles 40mm (1 1/2") Dual Trajectory Full Circle Only

$347.18 excl. GST $347.18 excl. GST /

Select an option to add this to your cart.

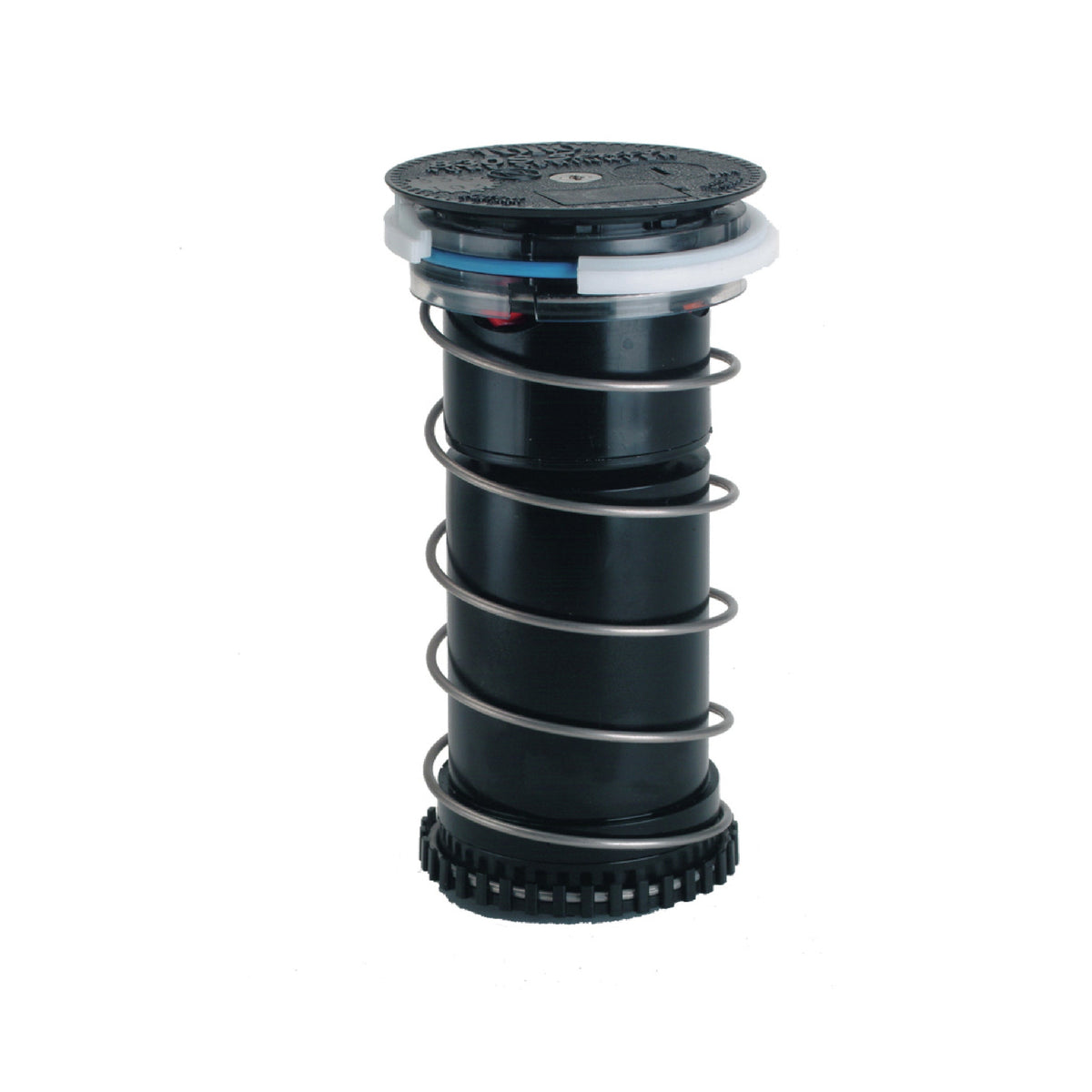

Conversion assemblies are designed to give you multiple nozzles options for your desired set-up. Body Required.

Constant Velocity Full Circle Drive
Ensures consistent rotation speeds when matched with station run times for even
water application across the coverage area every time you water.

Radius Reduction Screw
Allows for fine tuning the radius to exactly the distance you need. In combination
with main nozzle sizing and trajectory adjustment the radius reduction screw can
effectively reduce the sprinkler throw down to 30’.

DUAL TRAJECTORY - 25°OR 15°
Provides two selections for the main nozzle trajectory; the 25 degree setting provides maximum distance of throw and the 15 degree setting provides improved  wind performance, radius reduction and obstacle avoidance.

Toro Infinity Series INF54 Conversion Assembly Nozzles | 40mm (1 1/2") | Dual Trajectory | Full Circle Only

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

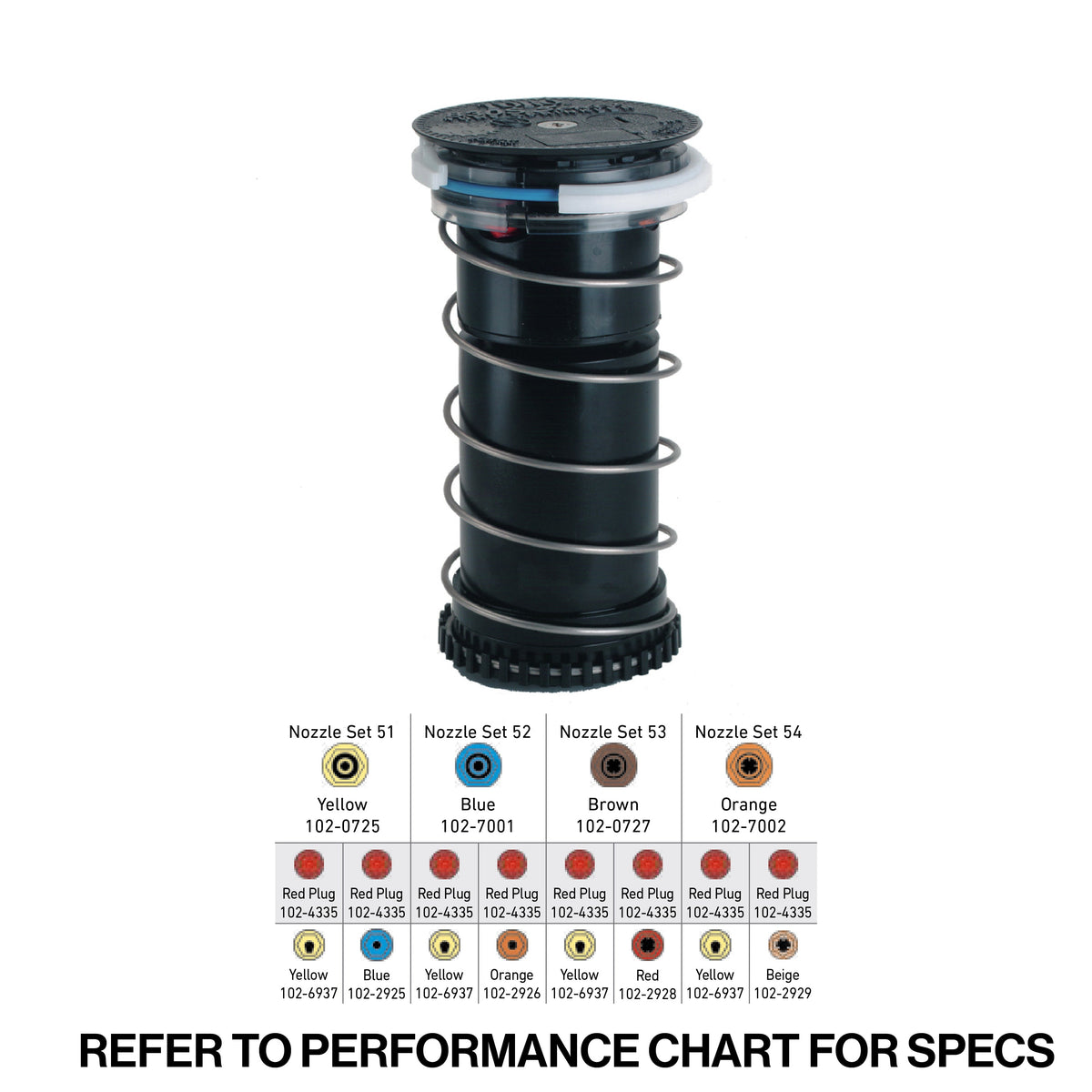

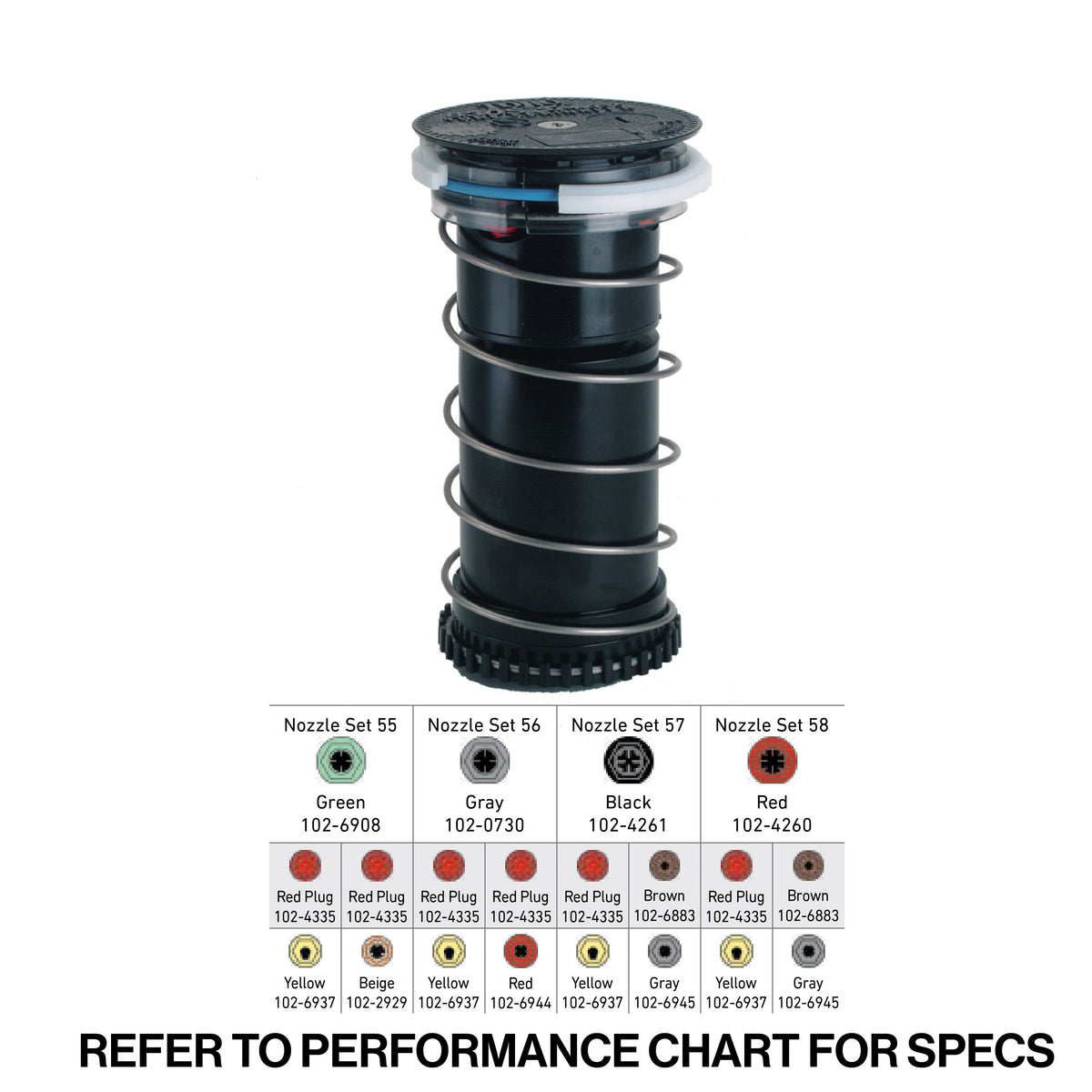

Toro Infinity Series NOZZLE SELECTION- INF54

  • INF54 has nine nozzle variations (51, 52,53, 54, 55, 56, 57, 58 and 59)
  • Four in-line nozzles, rotating stream pattern
  • Three opposing nozzles, rotating stream pattern
  • Two additional front nozzle positions

Toro Infinity Series - INF54

Radius: 15.9 – 30.2m (52’ – 99’)
Flow Rate: 50.0-233.9 LPM (13.2 – 61.8 gpm)
Precipitation Rates: Minimum -9.6 mm/hr (0.38”/hr) Maximum - 17.8 mm/hr (0.70”/hr)
Pilot Valve: Selectable at 3.5; 4.5; 5.5; and 6,9 bar (50, 65, 80 and 100 psi)
Recommended Operating Pressure Range: 4.5-6.9 bar (65-100 psi); Maximum - 10.3 bar (150 psi); Minimum
SMART ACCESS™ Cover and Compartment Diameter: 19cm (7.5”)
Body height: 29cm (11.38”)
Weight: 2.28kg (5.04 lbs.)
WARRANTY: Two years; Five years when installed with Toro® Swing Joints

Toro Infinity Series BODY - Power Options

Standard Solenoid: 24 VAC, 50/60 Hz, Inrush; 0.30A, Holding; 0.20A
Spike Guard Solenoid: 24 VAC, 50/60 Hz, Inrush; 0.12A, Holding; 0.10A
Nickel-Plated Spike Guard Solenoid: 24 VAC, 50/60 Hz, Inrush; 0.12A, Holding; 0.10A
DC Latching Solenoid (DCLS): Momentary low voltage pulse
LYNX Smart Module with DCLS: Momentary low voltage pulse

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
