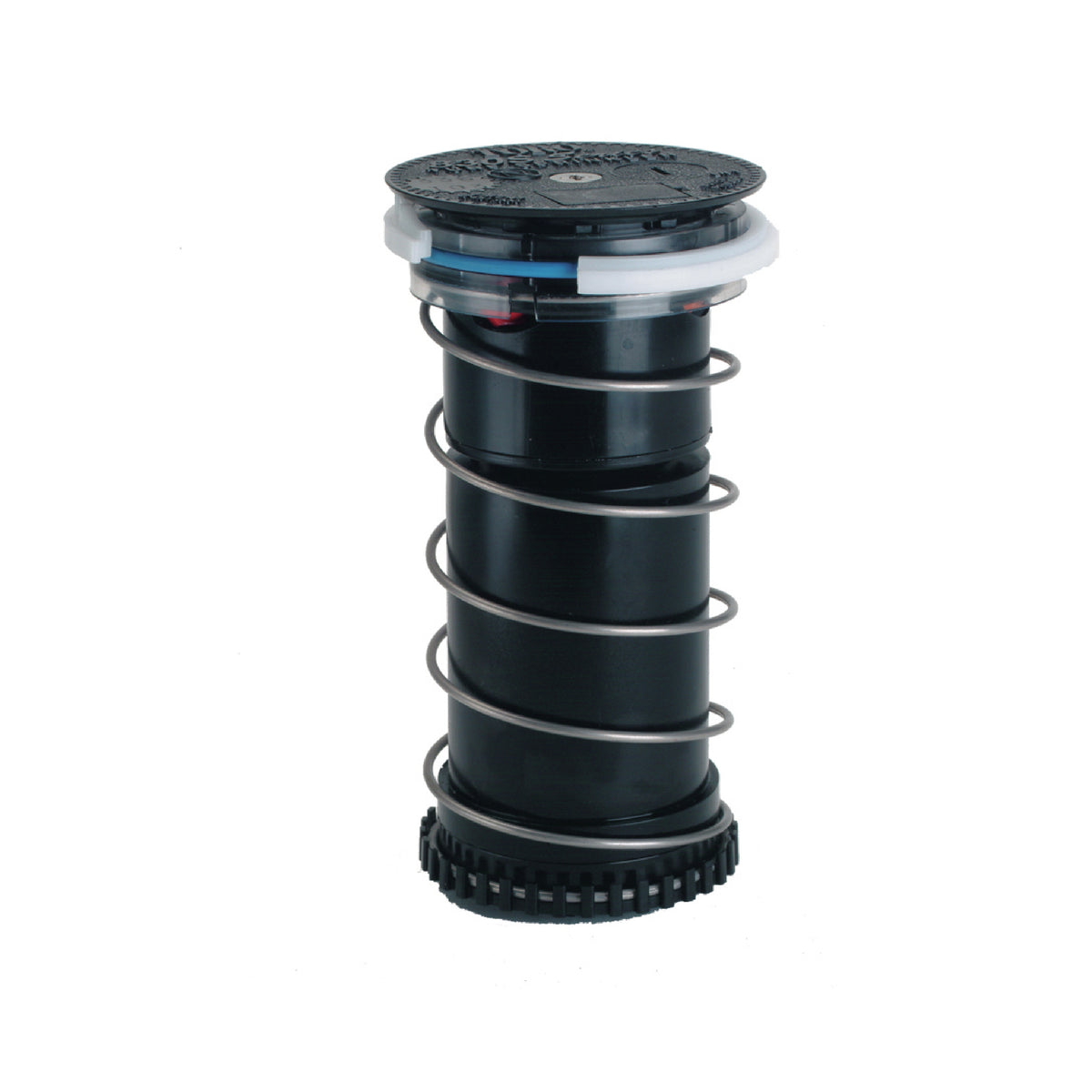

Toro Infinity Series INF35-6 Conversion Assembly Nozzles 25mm (1") TruJectory® 24 Positions Full Circle & Part Circle In One

$456.83 excl. GST $456.83 excl. GST /

Select an option to add this to your cart.

Type:

Conversion assemblies are designed to give you multiple nozzles options for your desired set-up. Body Required.

TruJectory® – 24 Positions
From 7° - 30° in 1° increments put water where you want it. Adjust from the top of the sprinkler in seconds, wet or dry. This flexibility lets you tackle every obstacle on the course; wind, trees, bunkers, mounds and more.

Industry's Largest Nozzle Selection
Nozzles from 12,8m - 30,5m (42’ to 100’) radius plus a wide assortment of back nozzles lets you put the precise amount of water exactly where you need it. All nozzles threaded in from the front.

Hot Spot Watering
Nozzle base can be turned in either direction and held to put down as much water as needed, precisely where you want it. Standard on all Toro Part circle
Golf rotors!

Adjustment With No Disassembly
Toro exclusive, simply pull up the riser and turn the nozzle base to the precise position you want to water.

True Part and Full-Circle in One – 40° - 330° Part Circle and 360º Full Circle
These sprinklers can be 360º full circle today and part circle tomorrow allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates.

Pickup availability

Toro Infinity Series INF35-6 Conversion Assembly Nozzles | 25mm (1") | TruJectory® 24 Positions | Full Circle & Part Circle In One

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

Toro Infinity Series NOZZLE SELECTION- INF35-6

FLX35-6 has eight nozzle variations (30, 31, 32, 33, 34, 35, 36 and 37)
Four in-line nozzles, rotating stream pattern
One back nozzle position
Stator variations: 3

Toro Infinity Series - INF35-6

Radius:	12.8 – 28.0m (42’ – 92’)
Flow Rate:	26.9-171.5 LPM (7.1 – 45.3 gpm)
Precipitation Rates:	Minimum - 9.8mm/hr (0.39”/hr) - Maximum
Pilot Valve:	Selectable at 3,4; 4,5; 5,5; and 6,9 bar (50, 65, 80 and 100 psi)
Recommended Operating Pressure Range:	4.5-6,9 bar (65-100 psi) - Maximum - 10.3 bar (150 psi) • Minimum -2.8 bar (40 psi)
SMART ACCESS™ Cover and Compartment Diameter:	19 cm (7.5”)
Body height:	25 cm (10”)
Weight:	1.95 kg (4.31 lb)
WARRANTY:	Two years; Five years when installed with Toro® Swing Joints

Toro Infinity Series BODY - Power Options

Standard Solenoid:	24 VAC, 50/60 Hz, Inrush; 0.30A, Holding; 0.20A
Spike Guard Solenoid:	24 VAC, 50/60 Hz, Inrush; 0.12A, Holding; 0.10A
Nickel-Plated Spike Guard Solenoid:	24 VAC, 50/60 Hz, Inrush; 0.12A, Holding; 0.10A
DC Latching Solenoid (DCLS):	Momentary low voltage pulse
LYNX Smart Module with DCLS:	Momentary low voltage pulse

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
