Rain Nuvola+ Vision Internet Connectivity Hub

Save 20%
$356.69 excl. GST $445.87 – $555.74 $356.69 – $444.59 excl. GST /

Select an option to add this to your cart.

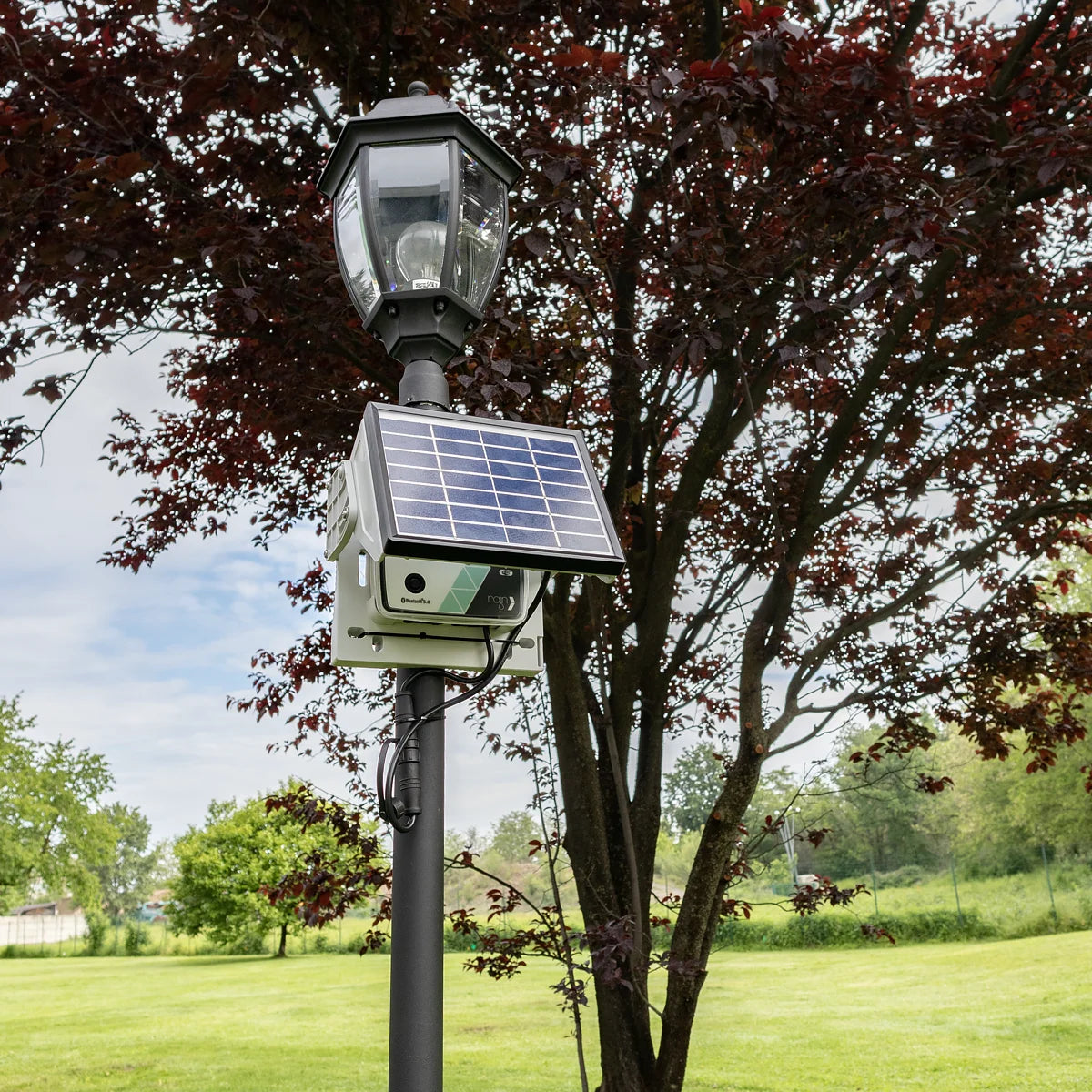

The Nuvola+ Vision hubs enable to connect your system to the Internet, and to manage irrigation via the Vision App wherever you are, using Wi-Fi or Cellular network. The devices connect via Bluetooth 5.0 to all Vision devices (max. 5). They have an IP68 protection rating that enables installation outdoors by powering the batteries with the docking station solar panel or in a valve box by powering the batteries with the Turbina Vision charging device.

Rain Nuvola+ Vision Internet Connectivity Hub

Available for pickup

Usually ready in 24 hours

Parkland Products - Auckland

Available for pickup

Usually ready in 24 hours

322 Rosedale Road
Albany
AUK
Auckland 0632
New Zealand

094150300

Bluetooth 5.0

Bluetooth 5.0

The Bluetooth 5.0 data transmission technology built into the controllers enables the programming via the Vision App directly on your smartphone, or Webapp on your computer, when using a Nuvola Vision device.
Lithium battery

Lithium battery

Rechargeable

Rechargeable

The lithium battery supplied with the controllers can be recharged by the Vision Turbine, Luce solar panel and Docking station devices. By integrating one of these devices, the irrigation system becomes energetically independent, and it will no longer be necessary to replace the batteries.
Vision App

Vision App

The Vision app is available on Google Play and App Store for smartphones and tablets.
Download Free Demo
Web App

Web App

The irrigation system can be accessed from any browser by accessing www.rainvision.it and entering your personal credentials or creating a new account.
Weather Forecasts

Weather Forecasts

Connecting to weather forecasts via OpenWeather.
Wi-Fi Connection

Wi-Fi Connection

The Nuvola WiFi Vision device is compatible with 2.4 GHz Wi-Fi.

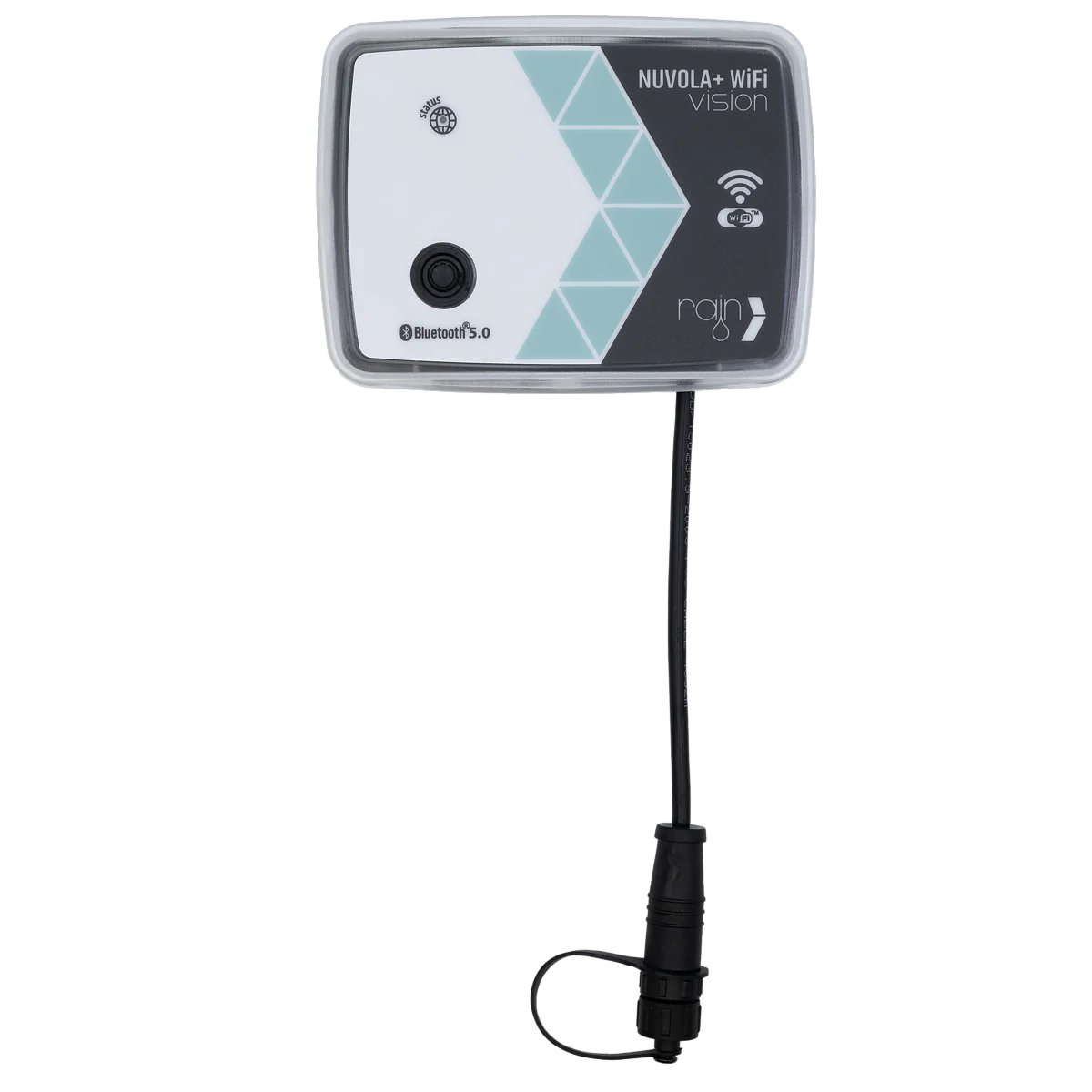

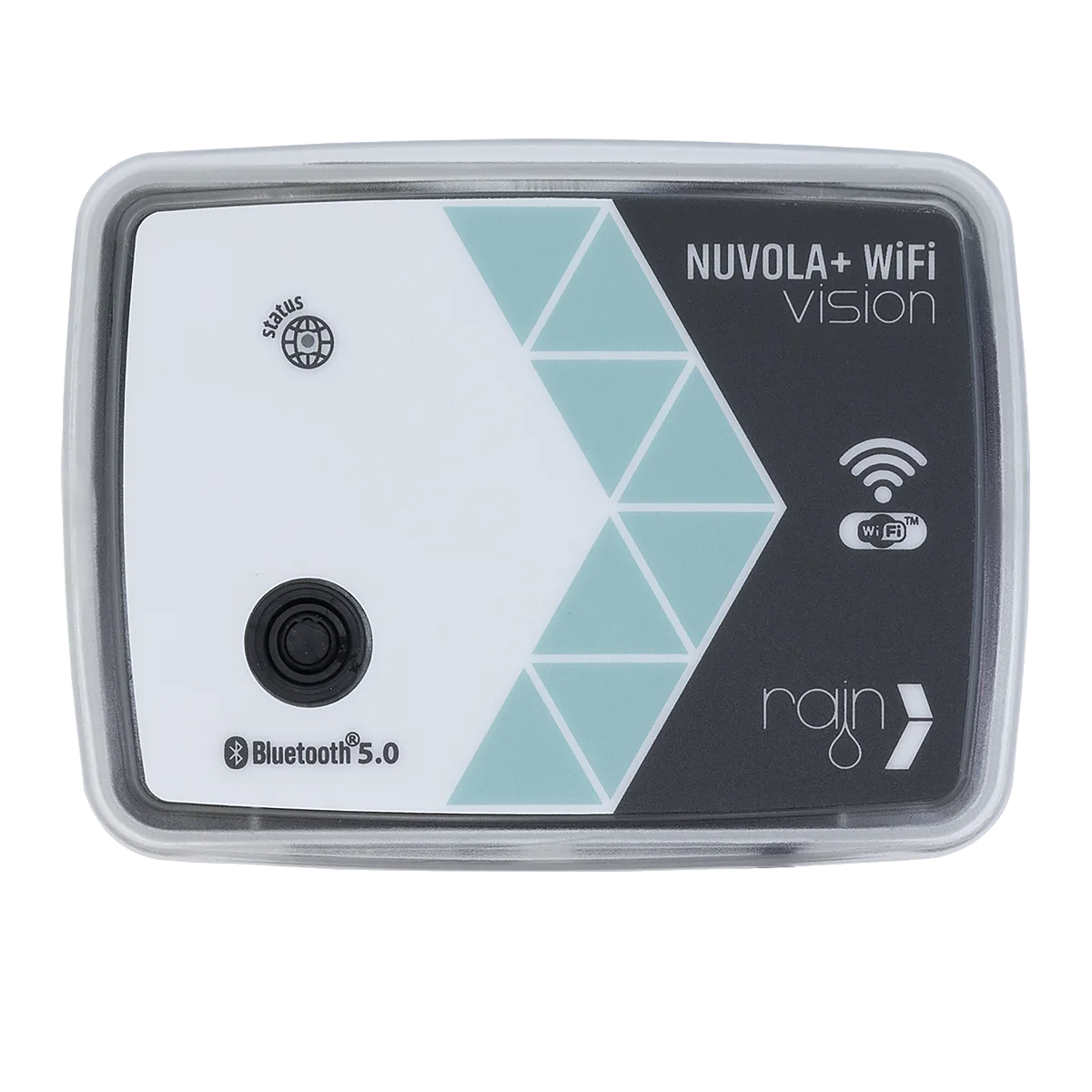

NUVOLA+ WIFI VISION

IP Rating: IP68 watertight (submersible)
Power supply: 18650 rechargeable lithium battery - 6,000 mAh 3.7V
Recharging mode: Via Docking Station, Via Turbina Vision, Via USB cable
Bluetooth: Bluetooth 5.0 connection
Internet connection: Compatible with Wi-Fi 2.4 GHz (802.11 b/g/n)
Maximum number of connected devices: 5
Connector: IP68 quick connector to be recharged

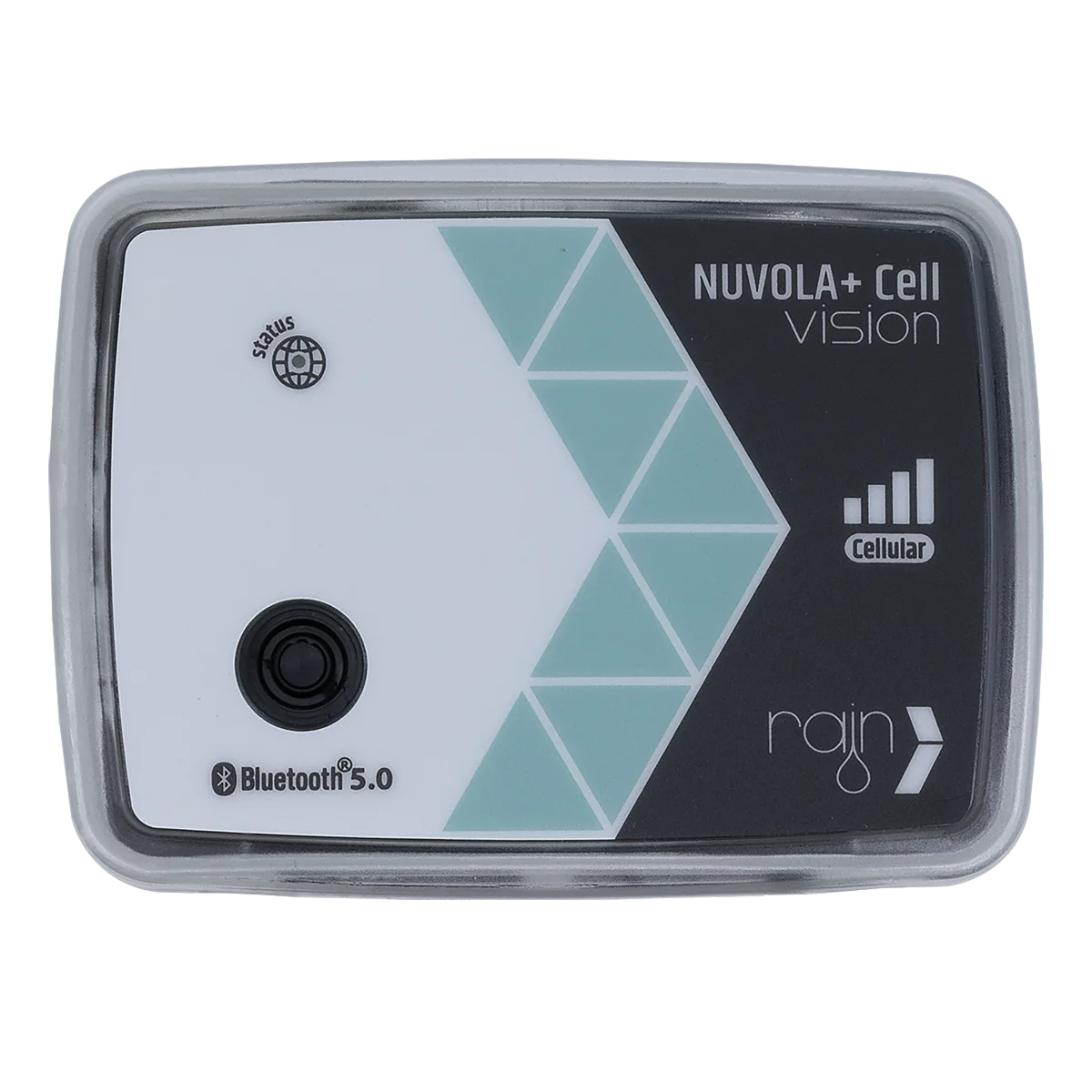

NUVOLA+ CELL VISION

IP Rating: IP68 watertight (submersible)
Power supply: 18650 rechargeable lithium battery - 5.400 mAh
Recharging mode: Via Docking Station, Via Turbina Vision, Via USB cable
Bluetooth: Bluetooth 5.0 connection
Internet connection: Through the cellular network of the e-SIM
Maximum number of connected devices: 5
Maximum power generated: 3
Connector: IP68 quick connector to be recharged

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.

VISION APP If I delete the App with the devices I have associated, will they remain saved in the Account? So if I reinstall the App, will I still find the devices saved in my Account?

Yes, if you uninstall the App with the devices associated with this Account and then install it again, you will still see the devices associated with the Account.

VISION APP: The Vision App is not responding. What could be the problem?

It may be due to background apps, processor overload, or device conditions. Restart your smartphone to resolve the issue.

VISION APP: Will my devices remain saved if I uninstall the app?

Yes, associated devices remain saved in the account and will appear after reinstalling the app.

VISION APP I see the umbrella icon and the active zone icon. What does that mean?

It means that the area being irrigated does not have a rain sensor active, while the others do. So the umbrella icon (rain sensor icon) appears for those areas where it is active, while it does not appear for the area which is irrigating.

VISION APP: What happens if I lose the data connection when I click save and send? Will I have to repeat the programming?

Yes, a data connection is necessary for saving. If the connection fails, the application and system will not be updated.

VISION APP: What is the difference between PAUSE and OFF?

OFF: The control unit is turned off, indicating the end of the irrigation season.

PAUSE: Temporarily suspends operation for a few days, resuming programming after the pause period.

VISION APP: What does the umbrella icon and the active zone icon mean?

The umbrella icon indicates an active rain sensor. If it doesn’t appear for an irrigated area, the rain sensor is not active there.

VISION APP: I can't find devices to pair. What should I do?

Try updating the app, clearing Bluetooth settings, removing and reinserting the battery, or restarting your smartphone.

VISION APP: How can I re-pair a controller accidentally deleted from Nuvola?

Go to the Nuvola screen, search for devices, and re-pair with the previously associated control unit.

BLUETOOTH: What is the maximum distance for pairing Vision devices via Bluetooth?

The average distance is 15 meters under standard conditions but can vary due to obstacles and environmental factors.

BLUETOOTH: How many smartphones can simultaneously connect to a Vision device via Bluetooth?

Only one device can connect at a time as Bluetooth communication is point-to-point.

BLUETOOTH: Is it compatible with older smartphones?

Compatibility depends on Bluetooth version. Devices with Bluetooth 5.0 are recommended.

BLUETOOTH: I entered the Bluetooth password but can't pair the device. What should I do?

Ensure no other account is paired with the device, clear Bluetooth data, restart your smartphone, and try again.

BLUETOOTH: I forgot the Bluetooth password. How can I reset it?

Scan the QR code on the device to reset it to the default password (000000).
