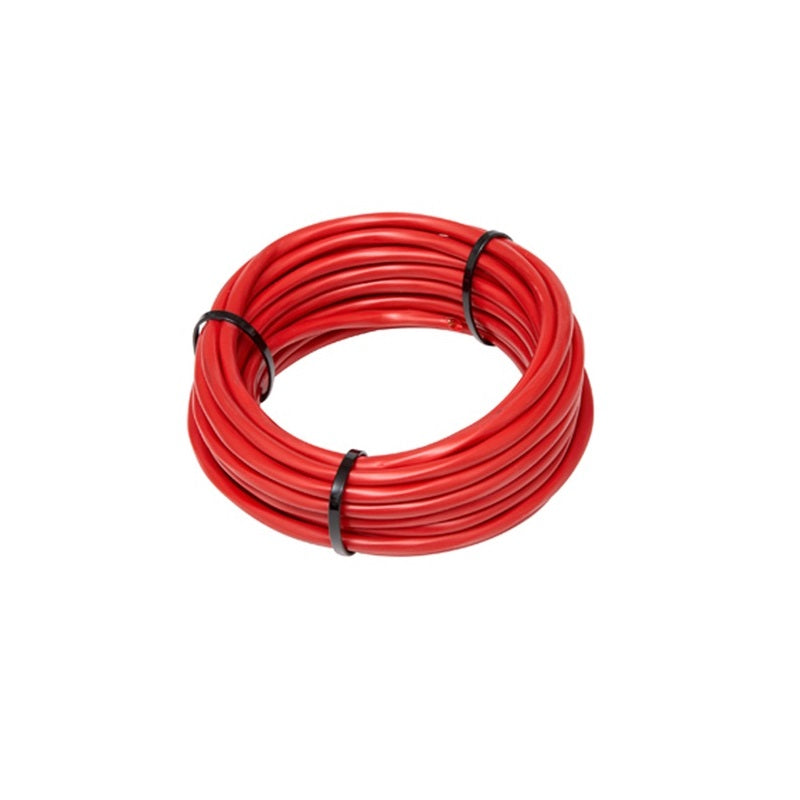

Toro 1.5mm Multi-Core Cable (10m)
For use in automatic irrigation systems to connect solenoid valves to controller. Extra low voltage systems only (as defined by AS3000). Suitable for direct burial. Not suitable for connection to Mains Power Supply.
Available in core sizes 3, 5, 7, 9, and 13.
Features
- Made with multi-strand plain oxygen-free copper wires and UV stabilized polypropylene to AS3808
Note: This product is an overweight item and is exempt from receiving free standard shipping. Freight charges will apply at cost.
| Conductor |
Multi-strand plain Oxygen free copper wire
|
| Insulation |
UV stabilised polypropylene to AS3808 |
| Outer Sheath |
Flexible 75°c PVC to AS3808 RoHS Compliant |
| Length |
10m |
| Nominal Area/Size |
1.5mm² |
| Cores (Model Number) |
3 (MC0315010) |
| Conductor No/Diam |
7/0.50mm |
| Amp Rating |
16amps |
| Insulation Thickness |
0.4mm |
| Sheath Thickness |
0.6mm |
| Weight (kg/100m) |
6.4kg |
| Cores (Model Number) |
5 (MC0515010) |
| Conductor No/Diam |
7/0.50mm |
| Amp Rating |
16amps |
| Insulation Thickness |
0.4mm |
| Sheath Thickness |
0.6mm |
| Weight (kg/100m) |
9.5kg |
| Cores (Model Number) |
7 (MC0715010) |
| Conductor No/Diam |
7/0.50mm |
| Amp Rating |
16amps |
| Insulation Thickness |
0.4mm |
| Sheath Thickness |
0.7mm |
| Weight (kg/100m) |
12.7kg |
| Cores (Model Number) |
9 (MC0915010) |
| Conductor No/Diam |
7/0.50mm |
| Amp Rating |
16amps |
| Insulation Thickness |
0.4mm |
| Sheath Thickness |
0.7mm |
| Weight (kg/100m) |
16.1kg |
| Cores (Model Number) |
13 (MC1315010) |
| Conductor No/Diam |
7/0.50mm |
| Amp Rating |
16amps |
| Insulation Thickness |
0.4mm |
| Sheath Thickness |
0.7mm |
| Weight (kg/100m) |
22.8kg |
Documentation
Control Valve Wiring - Multi-Core (Multi-Strand)
