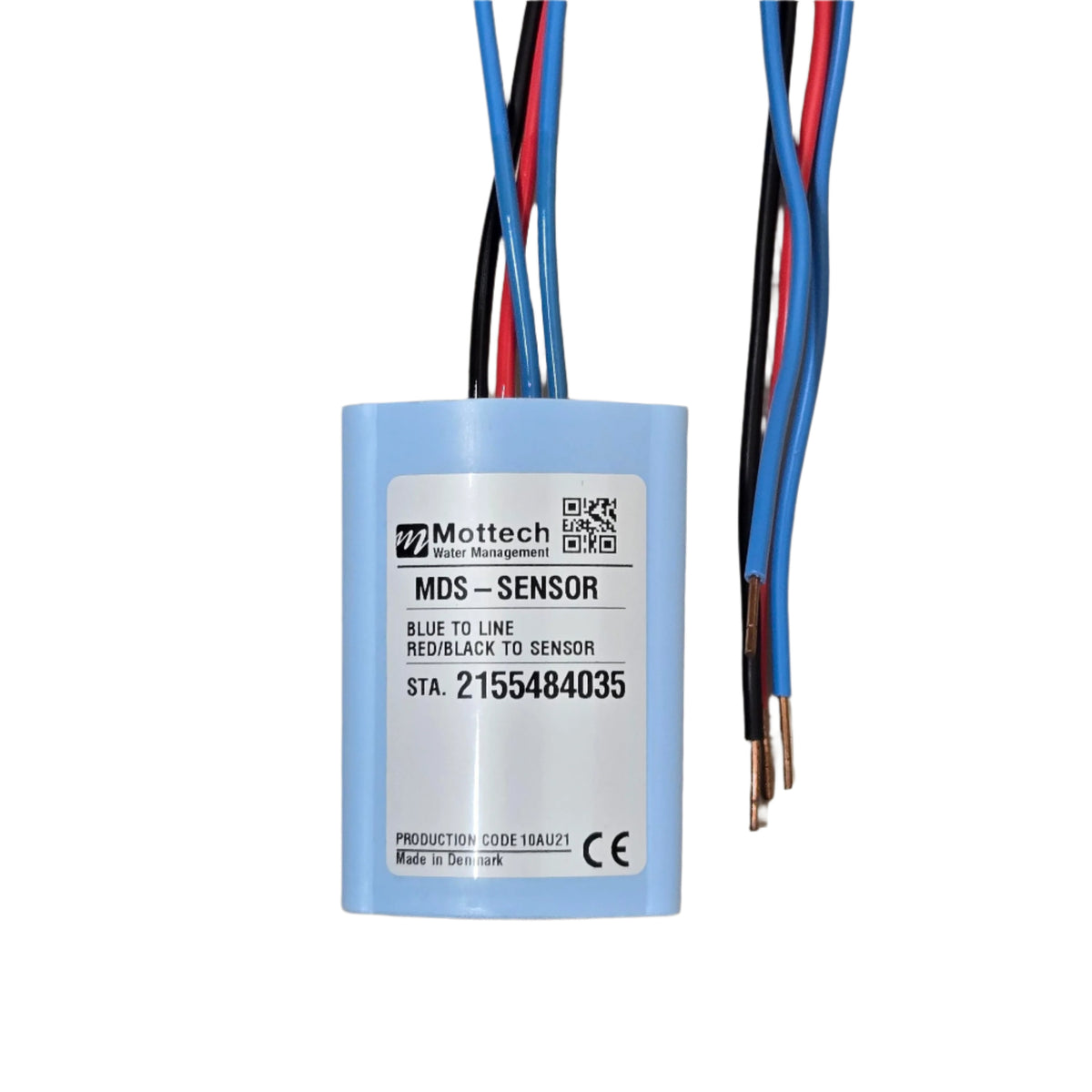

Mottech MDS Single Sensor Input Decoder
Mottech MDS Single Sensor Input Decoder
SKU: MDS-SID-INT

Mottech MDS Single Sensor Input Decoder

Thanks for contacting us. We'll get back to you as soon as possible.

The MDS is a reliable, highly efficient 2-wire decoder that substantially reduces the amount of buried wire used for valve control. It offers true flexibility for future expansion of existing systems.

Each decoder connected to the 2-wire cable functions as a switching mechanism providing 24V AC to each valve and plays a supervisory role in monitoring critical solenoid parameters. Real two-way communication between the interface and the decoders gives diagnostic capabilities for monitoring the general health of the 2-wire cable, decoders, and valve solenoids.

The MDS is an integral part of the IRRInet system and the ICC PRO platform. The MDS can be mixed with existing (and future) Motorola IRRInet products for a highly flexible, expandable solution for any application, including new installations and retrofits.

Mottech MDS Single Sensor Input Decoder

Mottech Decoder System (MDS) Spec Sheet (All Models)

Output Decoder: 1, 2, 4, 6 solenoids
Sensor Decoders: 1 input
Input Formats: • Digital
Capacity: 200 decoders p/2-wire interface • IRRI-M
Surge Protection Decoders: • Lightning and surge protection • Built-in line surge protection (in models with 2, 4, 6 outputs)
Compatibility with the IRRInet Platform: • ICC PRO 5.5 and above • IRRIV 8.5 and above

Disclaimer: Due to continued product development. Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only. Actual products offered for sale may vary in use, design, required attachments and safety features.
